Analox AX60-AP1 Multi Gas Monitor

Safety Gear Store have worked with a number of production companies and theatres including Disney, Cirque du Soleil and The Birmingham Royal Ballet Theatre.

To read our case study about Swan Lake please use this link below:

https://drive.google.com/file/d/1dYyglmqnlU0lqMiJQlJCkSZu5lh3HuSV/view

Require Install, Commissioning, Calibration or Servicing?

Safety Gear Store are able to install, commission and service your fixed gas detection system. We offer a professional service from fully trained, certified and manufacturer approved engineers, we are also one of the only suppliers with engineers that carry spares in their vehicles to ensure a quick and efficient service that will enable you to continue using your facility.
For more information on what we offer please visit one of the below pages:

Fixed Gas Detection System Install and Commissioning

Fixed Gas Detection System Calibration and Servicing

The Ax60+ multi gas monitor is offten used in pub cellars it refered to by various companies as a Cellar CO2 alarm, a Cellar Safe CO2 monitor.  The AX60+ offers the ability to add modular sensors, creating a fully flexible solution, it is a wall-mountable multi gas monitor for detecting carbon dioxide with an option for monitoring oxygen available.

The CO2 sensor is set by default to trigger a low-level alarm at 1.5% CO2, an evacuation alarm at 3% CO2 and a time-weighted average alarm (TWA) of 0.5% CO2 measured over eight hours. Alarm set-points can be fully customised by the user to adhere to specific local regulations.

The addition of the O2 sensor provides an early warning of both oxygen depletion and oxygen enrichment. The O2 sensor is set by default to trigger low-going alarms at both 19.5% and at 18% and a high-going alarm at 23%. The alarm setpoints can be changed by the user. Warnings are announced by high-visibility strobe lights and high-volume sounders.

The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.

*Please note the AX60+ can only accommodate 4 sensors (O2 and CO2) in any combination with upto 8 alarms.

SGS Analox Ax60+ Package 1 Contents Includes:

1 x Central display unit
1 x Ax60+ CO2 Sensor Unit

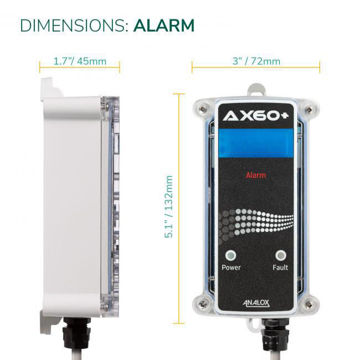

1 x Ax60+ Alarm Unit (blue strobe)
1 x Quick connect with universal power supply

Key features of the Ax60+ wall mountable multi gas monitor:

• Multi-point, multi-gas, distributed monitoring system
• 4-channel flexibility allowing any sensor combination - both now and in the future
• Central display unit for remote operation and control
• User-configurable alarms, setpoints and relay outputs
• Built-in software for operation and maintenance tasks
• Relay 'failsafe options'
• Improved accuracy and calibration for CO2 channels
• Meets TUV, DIN, NFPA, IFC and OSHA requirements
• Up to five year sensor and electronics warranty
• Virtually maintenance free
• The Ax60+ has 2 built in relays as standard

  Safety Gear Store offers a calibration and installation service, please Email sales for prices sales@safetygearstore.co.uk or call 0800 678 5708


•

Data Sheet
