Description

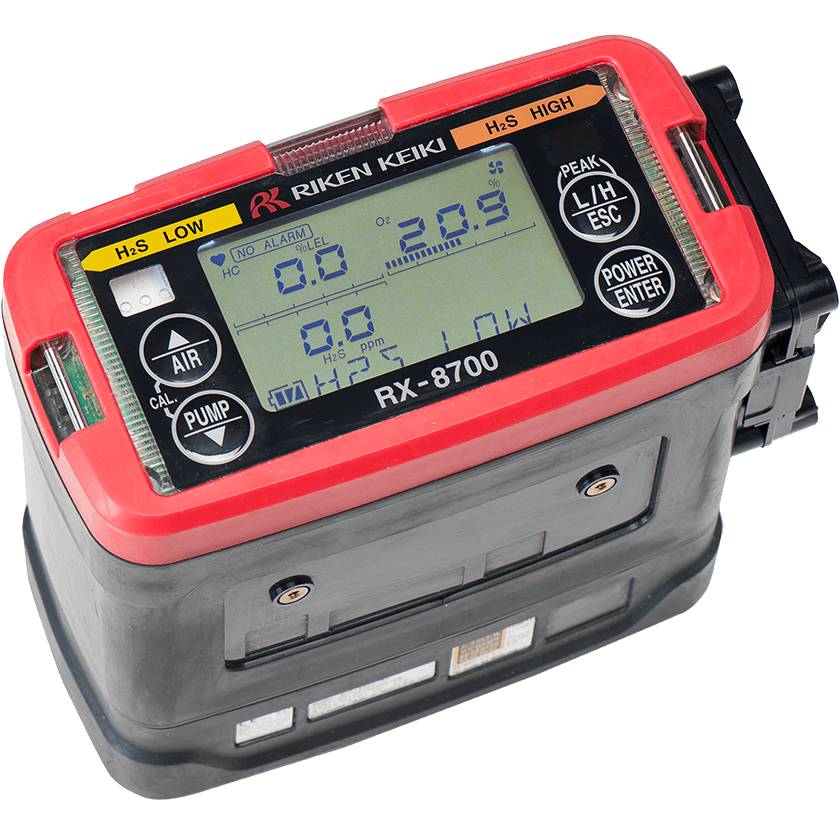

Riken Keiki RX-8700 Sample Drawing Portable Multi Gas Monitor for Cargo Monitoring on Crude Oil Tankers

The Riken Keiki RX-8700 Portable Multi Gas Monitors are designed for measuring multiple gases in inert or air atmospheres. Their main application is aboard and Crude Oil marine tankers. They also find uses in Oil storage depots, Tank farms, Petrochemical plants and Oil refineries. They replace and improve upon the very successful RX-516/517 family.

Users typically use them to measure gas concentrations in tanks or piping during inerting/purging and tank maintenance work. Their advanced sensor technology gives accurate gas measurement even in Nitrogen (N2) and other inert environments.

Target Gas	Combustible Gas (HC)	Oxygen (O2)	Hydrogen Sulphide (H2S)
Detection Principal	Non-Dispersive Infrared	Galvanic Cell	Electro-Chemical

Detection Range

0-100% LEL / 0-100% Vol

0-25%.0vol%

25.1-40.0vol%

Lo 0-30ppm

Hi 0-1000ppm

Increments

0.5%LEL (0-100%LEL)

0.5%vol%(5-100%vol)

0.1% vol

0.5ppm

1ppm

Samples Method	Sample Draw
Sampling Rate	Minimum 0.75L/min
Display	Digital LCD (7 segment + sign + bar display)
Power Supply	Lithium-Ion Battery ( Standard ) Alkaline battery (AA battery x 3)( option)
Continous Supply	Li-ion battery : Longer than 15 hours ( full charge, no alarm, no light at 25 Deg C) AA Battery Unit : Longer than 8 hours ( new battery , no alarm, no light at 25 Deg C)
Operating temp and Humidity	-20-+50 deg C , below 85% RH (Non-condensing )
Dimensions	Approx 154(W) x 81(H) x 163(D) mm
Weight	Approx 1.3kg ( Lithium battery type , 1.2kg Alkaline battery type)
Ingress Rating	IP-67
Explosion Proof	Intrinsically safe (Ex ia II CT4)(ATEX/IECEx)
Approvals	ATEX/IECDx . TIIS . MED
Other Functions	LCD backlight , Datalogger , Log data , Peak Hold , Pump stop function
Transmission Method	IrDA for Datalogger

Features

Unique gas combinations : HC/O2/H2S (8700)
Designed Specifically Crude Oil Tanker cargo Monitoring
RX-8700 has High Range H2S (0-1000ppm)
Highest H2S range available ideal for High H2S Crude Oil monitoring
Accurately measure HC from inerted tanks with infrared sensor.
Ideal for Cargo Monitoring
Autoranging IR sensor
Dual range detection of HC in % vol and %LEL
Dual Pump Design
Allows Auto-purge of high H2S circuit to prevent corrosive damage
Robust and intrinsically safe design
ATEX and MED (wheel-mark) Marine Type Approval
State of the Art Lithium Ion battery.
Both Long lasting and fast charging
IrDA communications port
Down load data logger contents with optional Adapter and software

Riken Keiki RX-8700 Sample Drawing Portable Multi Gas Monitor

for Cargo Monitoring on Crude Oil Tankers

SKU: RX-8700

Call for pricing
