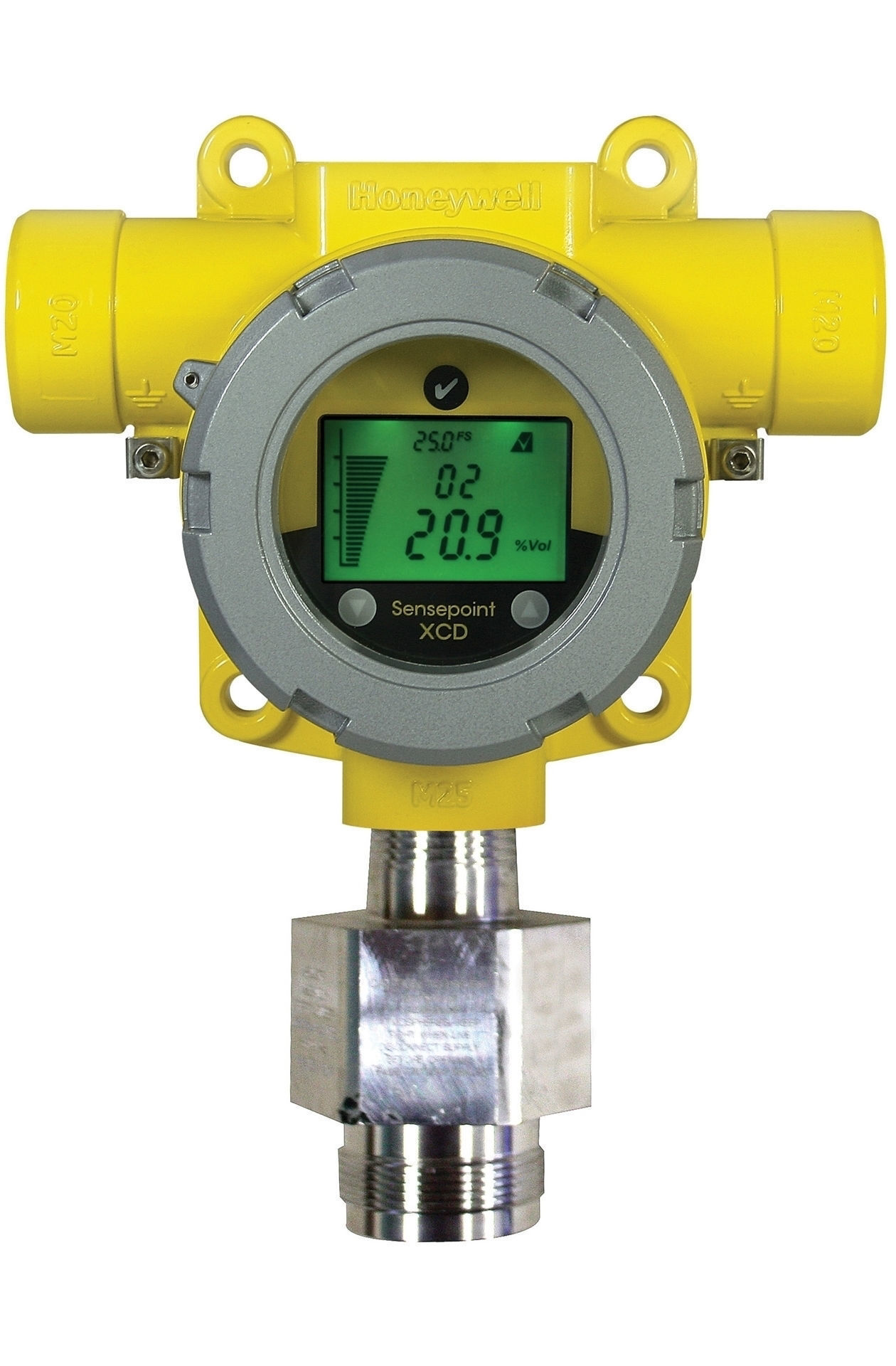

SPXCDASMFX XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes catalytic sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection

Honeywell Sensepoint XCD ATEX/IECEx/China Approvals (316SS)

Require Install, Commissioning, Calibration or Servicing?

Safety Gear Store are able to install, commission and service your fixed gas detection system. We offer a professional service from fully trained, certified and manufacturer approved engineers, we are also one of the only suppliers with engineers that carry spares in their vehicles to ensure a quick and efficient service that will enable you to continue using your facility.

For more information on what we offer please visit one of the below pages:

Fixed Gas Detection System Install and Commissioning

Fixed Gas Detection System Calibration and Servicing


The standard XCD is an Ex d gas detector suitable for use in Zone 1environments and is available in 3 versions; flammable, Oxygen and toxic. Each is supplied with a pre-installed stainless steel sensor cartridge andfully tested and calibrated ready for installation. Replacement sensor cartridges are available.

Configuration and control of the unit is achieved through use of a magnetremoving the need to open the unit, while the tri-colour backlit displayprovides instant indication of the detector status at a glance. The XCD catalytic sensor can be used to detect flammable gases in the range 0 to 100%LEL while the infrared (IR) sensor versions are available for the detection of methane in the range 0 to 100%LEL, propane (with crosssensitivitiesto ethylene and butane) and Carbon Dioxide (CO2).  Both sensors are used in conjunction with the flammable version of the transmitter.

The electrochemical cell (EC) sensors are available for the detection of oxygen and toxic gases; Carbon Monoxide (CO), Hydrogen Sulphide (H2S),Nitrogen Dioxide (NO2) and Hydrogen (H2).  Each detector is supplied with the pre-fitted sensor, nylon weather protection, stainless steel blanking plug, magnetic wand, hex keys, printed quick start guide and CD-ROM.

All transmitters are also available with Modbus interface as an option.

Features & Benefits:

  • Accurate detection with fast response
  • Mount sensor up to 100 ft. from transmitter
  • Easy to read tri-color backlit display


Quick Specs:

  • Input voltage range: 16 to 32 VDC (24 VDC nominal)
  • Communication: RS485, MODBUS RTU
  • Mounting: Pole or wall


Detailed information on models:




SPXCDASMFXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes catalytic sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
SPXCDASMRXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes infrared methane sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
SPXCDASMPXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes infrared propane sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection
SPXCDASMO1XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes oxygen EC sensor cartridge 0 to 25% v/v, includes nylon weather protection
SPXCDASMFXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes hydrogen sulfide EC sensor cartridge 0 to 50ppm, user selectable FSD between 10 and 100ppm (1 ppm resolution), includes nylon weather protection
SPXCDASMCXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes carbon monoxide EC sensor cartridge 0 to 300ppm, user selectable FSD between 100 and 1000ppm (100 ppm resolution), includes nylon weather protection
SPXCDASMNXXCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes nitrogen dioxide EC sensor cartridge 0 to 10ppm, user selectable FSD between 10 and 50ppm (5 ppm resolution), includes nylon weather protection
SPXCDASMG1XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes hydrogen EC sensor cartridge 0 to 1000ppm, includes nylon weather protection
SPXCDASMB1XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes infrared carbon dioxide sensor cartridge 0 to 2.0% v/v, includes nylon weather protection
SPXCDASMB2XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted 316SS, includes infrared carbon dioxide sensor cartridge 0 to 5.0% v/v, includes nylon weather protection






Products specifications
Attribute nameAttribute value
SensepointSensepoint XCD

Honeywell Sensepoint XCD ATEX/IECEx/China Approvals (316SS)

Explosion-Proof Transmitters
Remote Flammable Detector
Manufacturer: Honeywell
SKU: SPXCDASMFX
*
£1,079.00 excl vat £1294.80 inc vat
