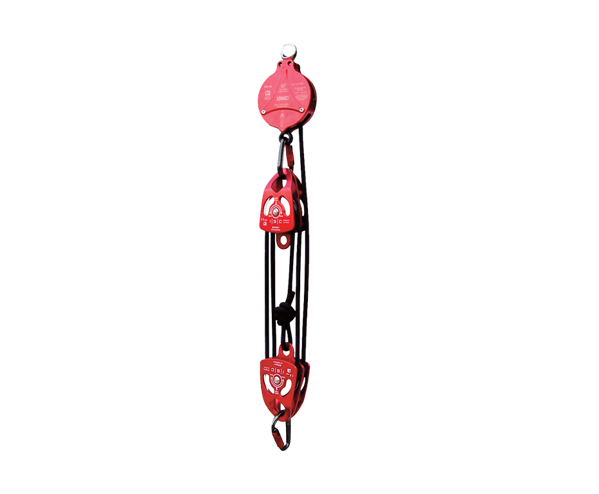

Guardian PPEWR-61 Rescue Auto Locking Fall Arrest System

RALF (Rescue Auto Locking Fall Arrest System pulley) can be set up with a combination of prussik pulleys to create a 3:1 or 5:1 mechanical advantage with virtually any length of rope to create a simple hauling system for one or two person loads.

If at any point during lifting or lowering the user loses control the overspeed brake will lock, arresting a fall within inches. The locking mechanism is not set up to be a one-use system and therefore does not have to be serviced after every fall arrest, however a thorough inspection of the rope and device will be required as well as a six-monthly thorough inspection and whatever replacement parts are required at that time.

Product Features:

•  Lightweight and compact
•  3:1 or 5:1 ratio options
•  Overspeed brake
•  Easy to use
•  Dimensions: head only 100mm x 90mm x 70mm
•  Capacity: no limit to ultimate system length
•  Arrest force: Max 6kN
•  Max user weight: 250kg EN 250kg ANSI



Principal Materials:

•  Heat treated, anodised aluminium and stainless steel
•  11mm low stretch kernmantle polyamide rope



Standards:

•  ANSI Z359-4:2007 250kg
•  EN 1891-A rated rope only
