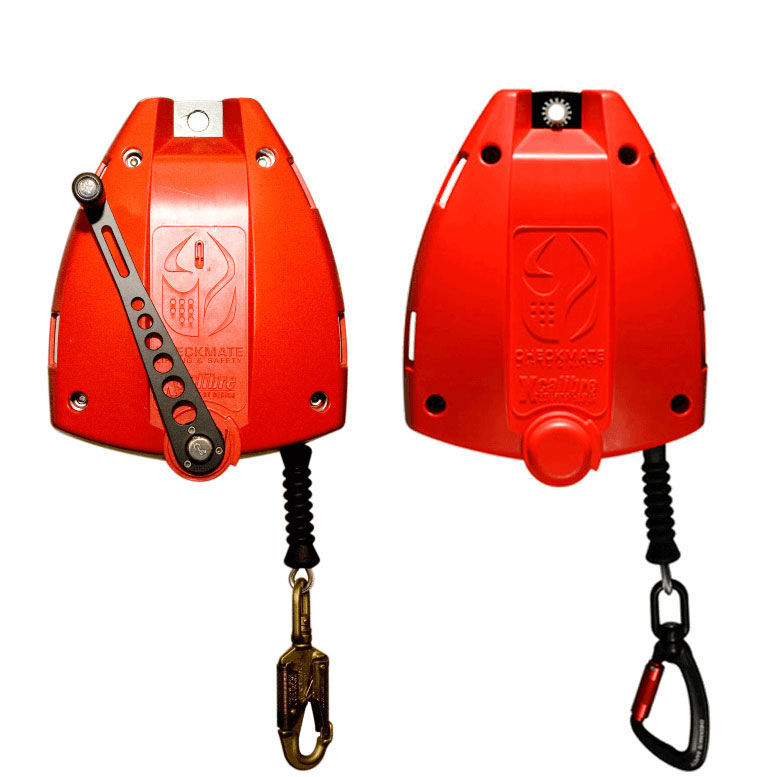

Guardian Large Xcalibre (30m) with Recovery (Galvanised Wire)

The FABXLR functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker. Available with galvanised or stainless steel cable or fibre rope made with Dyneema®, up to 40m metres (130ft) in length.

Features:

• Galvanised Steel max 40m (130ft)
• Galvanised Wire Rope 4.8mm nom dia 19 x 7 minimum breaking load 15kN
• Maximum Arresting Force<6.0kN
• User Weight136Kg Maximum (300lb)



Standards:

• EN 360
• ANSI Z359.14:2012



Construction:

•  External Housings         PC/ABS High strength and rigidity UV stabilised
•  Shaft                           T6 Aluminium hard anodised
•  Chassis                        Hot Rolled Steel powder coated
•  Pawls & Spindles           Stainless steel, hardened
•  Bearings                      Polyamide with PTFE Polytetrafluoroethene
•  Swivel Load                  Indicating HookSteel swivel snap rated to 23kN


Data Sheet
