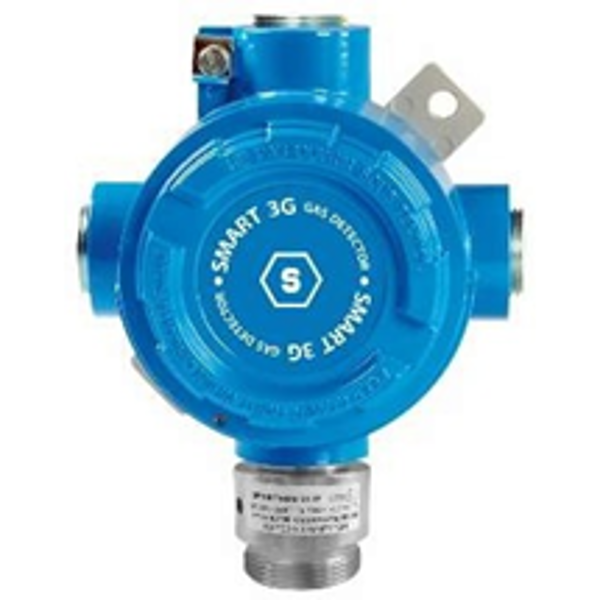

Crowcon SMART3G-C2 - FLAMMABLE GAS (Catalytic sensor)

For a Full breakdown of all Crowcon SMART3G accessories, go HERE

Designed to meet with industrial requirements, the SMART3G-C2 allow to monitor toxic, flammable and refrigerant gas contents in industrial environments and classified areas.

Ideal in industrial environments, the SMART3G-C2 feature one man calibration via the STS/CKD+ calibration keypad. The SMART3G-C2 detectors can reliably monitor flammable compounds (% LFL), toxic compounds and refrigerant gases in ppm, Oxygen and CO2 contents in % by vol.

The detectors are rated to IP65

SMART3G – C2 feature:

• Standard 4-20 mA 3 wire output.
• Optional 1 or 3 relay output.
• Optional RS485 interface for Modbus communication.
• Zero tracking to maintain the zero point steady from possible drifts.
• Ongoing system self diagnosis.
• ATEX II 2G Ex db IIC T5 Gb (Standard marking) (II 2GD with optional adapter).
• ATEX II 2G Ex db [ib] IIC T6 Gb for detectors with intrinsically safe protection.
• SIL 2 HW & SIL3 SW certified.
• Wide range of sensors and detectable gases.
• Wide range of accessories for installation and maintenance.
• Easy sensor replacement.
