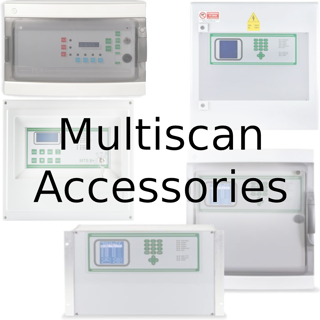

Crowcon Multiscan Accessories

Accessories for Crowcon Multiscan products, such as the Multiscan++MED and the Multiscan++S2, etc.

Multiscan++MED:

• STG/IN8-S2MED - 8 input remote module card for MULTISCAN++MED control panel.
• STG/OUT16-S2MED - 16 Open Collectors output remote module for MULTISCAN++MED control panel.
• STG/8REL - Plug and play relay board to be connected to STG/OUT16S to provide 8 relay outputs
• STG/MTSS2-CONF - Windows PC software for MULTISCAN++S2 control panel programming. Running under Windows XP, WIN7, 8, 8.1, 10.

Multiscan++S2:

• STG/MTSS2-CONF - under Windows XP, WIN7, 8, 8.1, 10.The configuration software is supplied along with the control panel at no extra cost
• STG/IN8-S2 - 8 input remote module card for MULTISCAN++S2 control panel.
• STG/OUT16-S2 - 16 Open Collectors output remote module for MULTISCAN++S2 control panel.
• STG/8REL - Plug and play relay board to be connected to STG/OUT16-S2 to provide 8 relay outputs
• STG/SER++ - Additional Serial board to implement serial lines in MULTISCAN++S2 (16,32,64)
• STG/TCPIP-C - TCP/IP interface for LAN connection
• VMB/267V40 - Metal Cabinet with enclosed a 24 Vdc 4A Power Supply to house one of the above remote cards.
• STG/BOX - IP55 Plastic box to house one STG/IN8-S2 or STG/OUT16-S2 cards
• STG/32-85 - RS232/RS485 Interface for PC connection on RS485 line of MULTISCAN++

Multiscan 8+:

• STG/MTSS1-CONF - Windows PC software for MULTISCAN++S1 control panel programming. Runningunder Windows XP, Vista, WIN7, 8, 8.1, 10.The configuration software is supplied along with the control panel at no extra cost
• STG/IN4-OUT4-S1 - Remote module with 4 inputs 4-20mA and 4 output relays for MULTISCAN++S1
• STG/IN8S - High safety 8-input remote module with improved performance
• STG/16REL - 16-relay card to be connected to MULTISCAN 8+ and STPL4/ESP to provide additional 16 relay outputs
• STG/OUT16S - High safety 16-output remote module (Open collector type) with improved performance
• STG/8REL - Plug and play relay board to be connected to STG/OUT16 to provide 8 relay outputs
• STG/TCPIP-8+ - TCP/IP interface for LAN connection specific for MULTISCAN 8+
• STMTS/RTU - Din rail mounted remote unit for events visualization.To be RS485 connected to MULTISCAN++S1, PK & MULTISCAN 8+ serial lines, it allows the visualization and identification of events. RTU comes complete with an LCD display to show different information as alarm or fault, 4 analogue 4-20 mA inputs for detectors connection and 5 output relays freely programmable.
• AL09 - 24 Vdc power supply for STPL4+D & STMTS/RTU
• STG/IPBOX - IP65 ABS box for STPL4+D & STMTS/RTU

Multiscan++PK:

• STG/MTSS1-CONF - Windows PC software for MULTISCAN++PK control panel programming. Runningunder Windows XP, Vista, WIN7, 8, 8.1, 10.The configuration software is supplied along with the control panel at no extra cost
• STG/IN4-OUT4-PK - Remote module with 4 inputs 4-20mA and 4 output relays for MULTISCAN++PK
• STG/IN8-PK - 8 input remote module for MULTISCAN++ Park control panel.
• STG/OUT16S - High safety 16-output remote module (Open collector type) with improvedperformance. Max 8 modules per line, for a total of 16 modules connectable to thesystem. For STMTS/PK-64B and STMTS/PK-32B max 8 modules connectable tothe system
• STG/8REL - Plug and play relay board to be connected to STG/OUT16 to provide 8 relay outputs
• STG/SER++ - Additional Serial board for MULTISCAN++PK-256 (to upgrade from 2 to 4 serial lines)
• STG/TCPIP-C - TCP/IP interface for LAN connection
• VMB/267V40 - Metal Cabinet with enclosed a 24 Vdc 4A Power Supply to house one of the above remote cards
• STG/BOX - IP55 Plastic box to house one STG/IN8-PK or STG/OUT16S card
• STG/32-85 - RS232/RS485 Interface for PC connection on RS485 line of MULTISCAN++
• STMTS/RTU - Din rail mounted remote unit for events visualization. To be RS485 connected to MULTISCAN++S1, PK & MULTISCAN 8+ serial lines, it allows the visualization and identification of events. RTU comes complete with an LCD display to show different information as alarm or fault, 4 analogue 4-20 mA inputs for detectors connection and 5 output relays freely programmable.
• AL09 - 24 Vdc power supply for STPL4+D & STMTS/RTU
• STG/IPBOX - IP65 ABS box for STPL4+D & STMTS/RTU

PL4+:

• STPL4/ESP - 4-channel extension card to expand the PL4+ control panel with 4 additional channels. It also provides 16 additional Open Collector Outputs.
• STG/16REL - 16-relay card to be connected to MULTISCAN 8+ and STPL4/ESP to provide additional 16 relay outputs. * External box for STG/16REL not provided

PL4+DIN:

• STG/MTSS1-CONF - Windows PC software for MULTISCAN++S1 control panel programming. Running under Windows XP, Vista, WIN7, 8, 8.1, 10. The configuration software is supplied along with the control panel at no extra cost.
• STG/IN4-OUT4-S1 - Remote module with 4 inputs 4-20mA and 4 output relays for MULTISCAN++S1
• STG/IN8S - High safety 8-input remote module with improved performance
• STG/OUT16S - High safety 16-output remote module (Open collector type) with improved performance.
• STG/8REL - Plug and play rela y board to be connected to STG/OUT16 to provide 8 relay outputs
• AL09 - 24 Vdc power supply for STPL4+D & STMTS/RTU
• STG/IPBOX - IP65 ABS box for STPL4+D & STMTS/RTU
