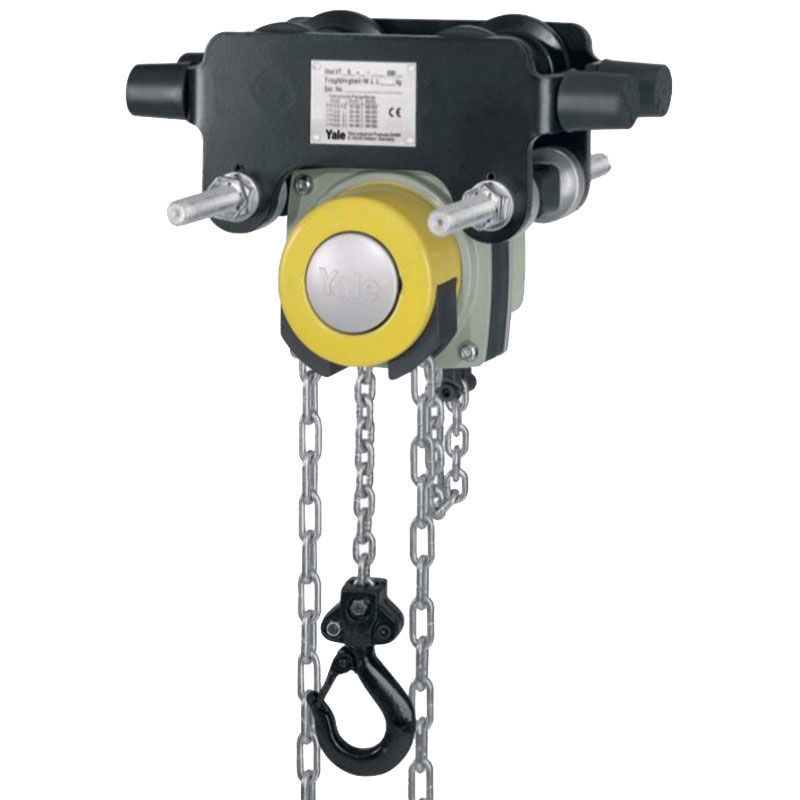

Yalelift ITG Geared Trolley Hoist

Hand chain hoist with integrated geared travel trolley

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Features include:

• All units of this series up to a capacity of 3000 kg are provided with single chain fall and the min. headroom (Dim. A) has been further reduced. Ideal for applications with low ceilings and limited headroom.

• The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.

• Trolleys up to 5000kg are offered for two beam ranges. Range A for a flange width up to 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.

• The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.

• Anti-drop and anti-tilt devices as standard.

Options:

• Overload protection device

• Chain container

• Rubber buffers (shown in photograph on the right available as optional extra).

• Explosion proof version.

• Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships).

Data Sheet
