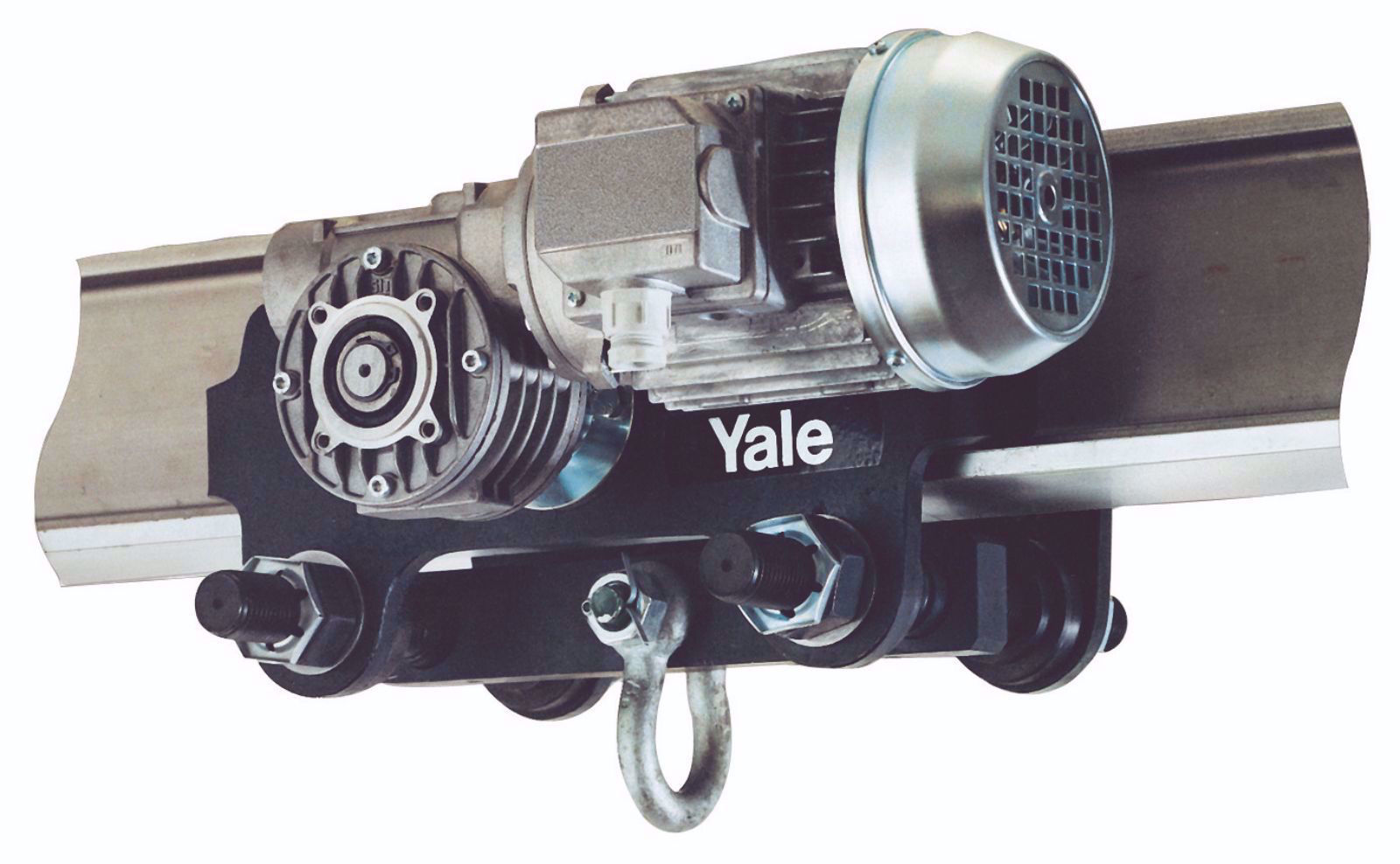

Yale VTE-U Electric Travel Trolley

Specially recommended for loads over 1000kgs, for transporting over long distances, and/or for frequent use. Suitable for almost all hoists with suspension hook, due to Yale’s universal shackle connection.

Travel motor with worm gear transmission ensures smooth start and self braking - a separate motor brake is not required.

Features include:

• Optional - Low voltage control 42v

• Standard operating voltage 400v 3ph 50Hz. (110v and 230v trollies are available upon request).

• Motors protected to IP 55 against dust and water jets. Push-button pendant control IP65.

• Compact, robust frame with low overall height.

• Wheels manufactured from fracture-proof steel. Smooth running due to machined surfaces and ball bearing mounting. Cambered wheel profile suitable for flat and inclined beam profiles.

• Anti-drop and anti tilt devices as standard.

• Easily adjustable to fit a wide range of beam widths and profiles via due to threaded load bars.

• Rubber buffers available as optional extra.

• Travel limit switches also available.

Notes:

These trolleys are not designed for passenger elevation applications and must not be used for this purpose!

For further beam width requirements, 11 or 11/2.8 m/min travel speed requirements or 110v/230v trollies, please contact SGS
