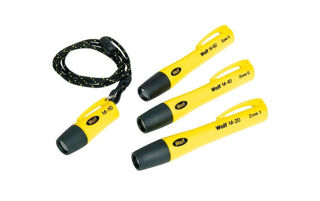

Wolf Spares for Micro and Mini Torches

The micro and mini torches use high-tech light sources to give impressive performance with a compact size, designed for easy pocket storage, and are CE marked to the ATEX directive and IECEX certified. For safe use in potentially explosive gas, vapour, mist or dust atmospheres, where a T4 or T5 temperature class permits. All models are approved to group I for use in mining applications.

The LED models; M-10 Micro, M-40 and M-60 Minis are approved as Category 1 equipment for use in Gas Zones 0, 1 and 2, and Dust Zones 20, 21, 21 and the M-20 Xenon Mini is approved as Category 2 equipment for use in Gas Zones 1 and 2.

• The M-10 Micro has a single white 5mm ‘Nichia’ LED light source and is powered by four alkaline LR44 ‘button cells’, giving an impressive beam with a two hour duration from a very compact size.
• The M-20 Mini uses a Xenon filament bulb powered by two LR03 ‘AAA’ cells, giving an excellent narrow beam of light with good range and up to 2.3 hours duration.
• The M-40 Mini has a cluster of three white 5mm ‘Nichia’ LEDs, and the M-60 Mini uses a single high power Cree LED giving remarkable light output.



Both products are powered by three alkaline LR1 ‘N’ cells giving up to ten hours of usable light with the M-40 and up to 3.5 hours* of usable light with the M-60. All supplied with cells.

The Micro and Mini Torches have an ergonomic design and are constructed from high quality thermoplastic resin, with excellent impact and chemical resistance and the polycarbonate lens is set-back within the lens ring to minimise risk of damage. All models have a lanyard hole (M-10 Micro supplied with neck cord), an integral pocket clip for secure retention and to prevent roll on a flat surface, and a push-button for single-handed switching, which is shrouded to guard against accidental operation. All models are certified IP67, sealed against water/dust ingress.

Product Information Sheet
