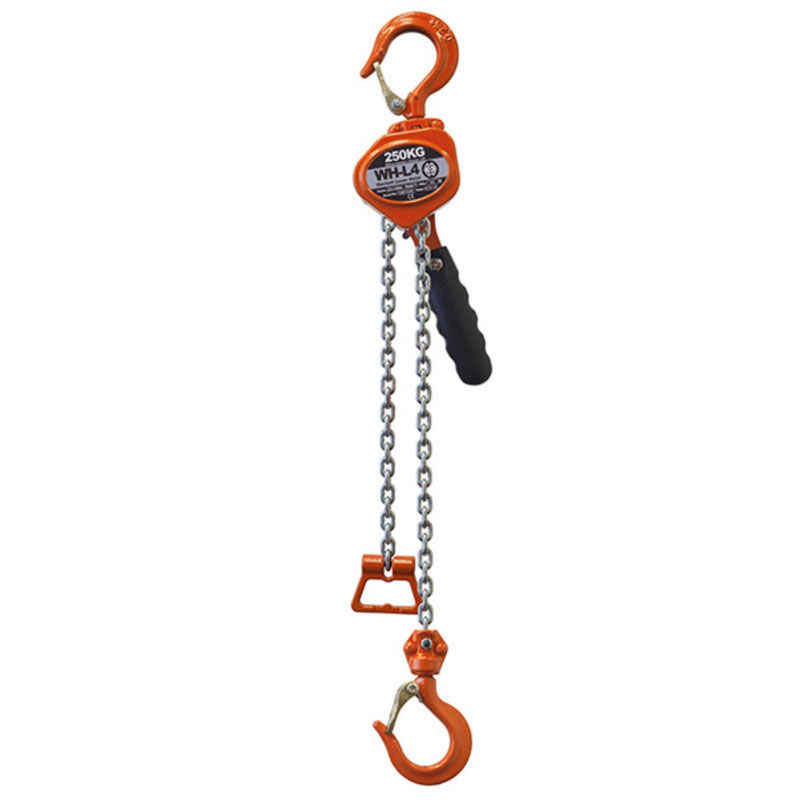

William Hackett L4 Compact Lever Hoist

The Hackett WH-L4 lever hoist meets and exceeds the requirements of international standards

British and European Standard BS EN13157:2004 + AI:2009

American Standard ASME B30.21-2014

Australian Standard AS1418.2-1997

NORSOK R-002: 2017. (Except for overload limiter)

The design and specification of the William Hackett WH-L4 compact lever hoist includes:

Working Load Limit Range: 250 Kg and 500 Kg.

Light Load Capability: the WH-L4 compact lever hoist is tested and certified at 2% of the lever hoist rated capacity.

Twin Paul: double safety; fitted as standard.

Safety Factor: 4:1.

Safety Latches: the WH-L4 compact lever hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.

Overload Indicator Marks: the WH-L4 compact lever hoist top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat.

Load Chain: the WH-L4 compact lever hoists are fitted with load chain that fully complies with international standard BS EN818-7. Grade T (8).

Robust End Stop: Ergonomically designed load chain end stop allows the operative to secure a firm grip when using the end stop to adjust the chain.

Compact Lever Hoists: supplied with a hard wearing belt bag carry case.

Temperature Range: -10°C to + 50°C.

Proof Tested: every hoist is proof tested to 1.5 times the Working Load Limit.

Manufactured in the UK.
