Tractel Blocfor 1.8A EVO ESD 150kg 1.8m

Fall arrest device with ESD technology, suitable for use on terrace roofs. 1.8 meter webbing. High Capacity Range 150 kg.
Complies with CNB/P/11.062.

• Complies with EN 360 and CNB/P/11.060 standards for use on edges with a minimal 0.5 mm curve radius
• Can be used vertically or with a standard deviation of 20° in relation to vertical
• Can be used horizontally without the use of a lanyard between the end of the strap and harness
• Can be used in the following fall factors: FACTOR 0 (overhead), FACTOR 1 (shoulder level), FACTOR 2 (foot level)
• Flexible and stronger unwinding system which doesn’t jerk during operator movement
• Responsive system which locks automatically in the event of a fall, reducing the total drop height
• Includes Energy System Dissipater (ESD) technology which enables the device to arrest a fall even when the webbing         fully unwound
• Integrated fall indicator
• Length 1.8 metres, webbing version
• Strap is wider and stronger
• Lightweight
• ABS fibre reinforced polyamide housing
• Standard M47 swivel connector at end of shock absorber

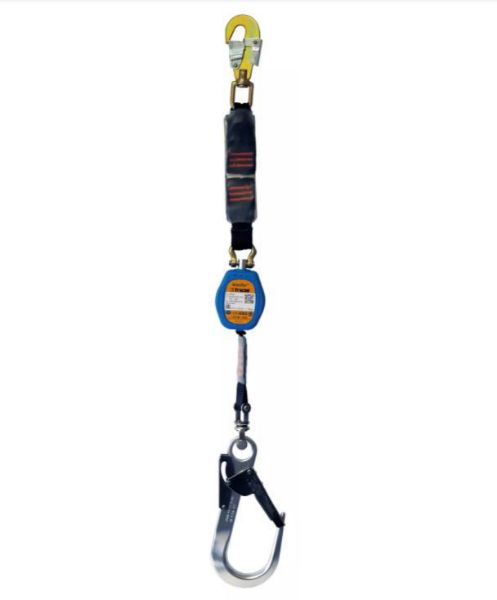

On the blocfor 1.8A EVO ESD, the ESD absorber is attached to the retractable belt. The belt of the blocforTM 1.8A EVO ESD is attached to the anchor point of the harness using the M47 connector. The blocforTM 1/8A EVO ESD housing is connected to the anchor point on the structure.
