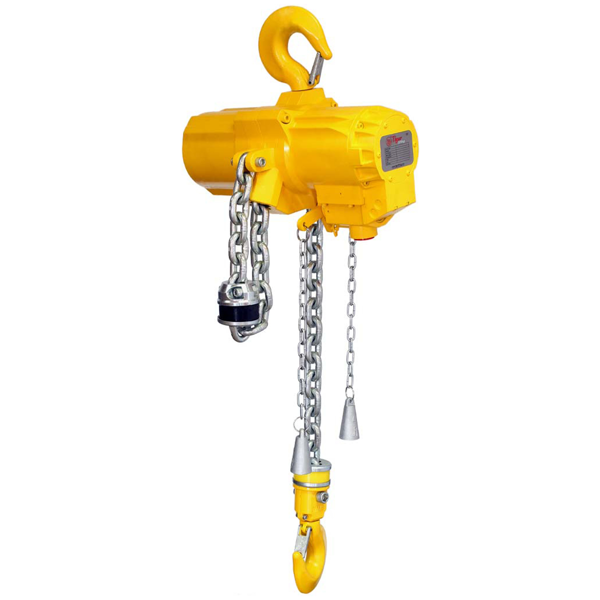

Tiger TAH33 Industrial Air Hoist

Tiger industrial air hoists are designed specifically for industrial and general engineering applications such as automotive plants, foundries, heat treatment plants zinc refineries and acid battery manufacturing facilities. The hoists operate at air pressures of between 4 and 6 bar. They comply with the requirements of ASME B30.16 and EN14492-2. The manufacturing facility producing the hoists is ISO9001, ISO14001 & OHSAS18001 certified.

Product Features

• Reliable, fast, efficient, quiet and lightweight

• Greater than 5:1 factor of safety

• Suitable for Fleeting/Oblique Pulling

Load Limiter

Integral differential pressure load limiting valve automatically prevents the operator lifting a load of more than 125% of the WLL. Load limiter is 100% repeatable at all working pressures and does not wear or generate damaging heat.

Emergency Stop

Pendant control hoists are supplied with a mains emergency stop valve. This shuts off the main air supply to the hoist when activated.

Precise Control

Accurate and precise positioning of loads is standard for both toggle and pendant control models.

Fail Safe Disc Brake

None-asbestos self-adjusting disc brake is applied automatically when the air supply to the hoist is shut off. The brake is self-adjusting for the life of the brake and can hold more than 125% of the WLL.

Fleeting or Oblique Pulling

This type of applicationis when the load deviates from the vertical position with a force acting directly between load hook and suspension point

Integral Silencer

The exhaust air silencer is built into the hoist gearbox housing and limits the noise level to below 85dB(A).

Load Chain

Grade 8 load chain ensures stringent high-speed duty cycles can be met. The load chain is in accordance with the requiremnts of EN818-7 Appendix B.

Vane Motor

Assisted vane lifting ensures maximum starting torque when starting under load.

Sealed Gearbox

The sealed planetary gearbox ensures that the most stringent duty cycles can be met. The gears are heat treated adn mounted on high strength, low friction bearings.

Ease of Maintenance

The modular design of the hoist allows easy access to internal components such as the motor, gearbox, brake and load limiter. Common parts are used through the range.

Downloads:

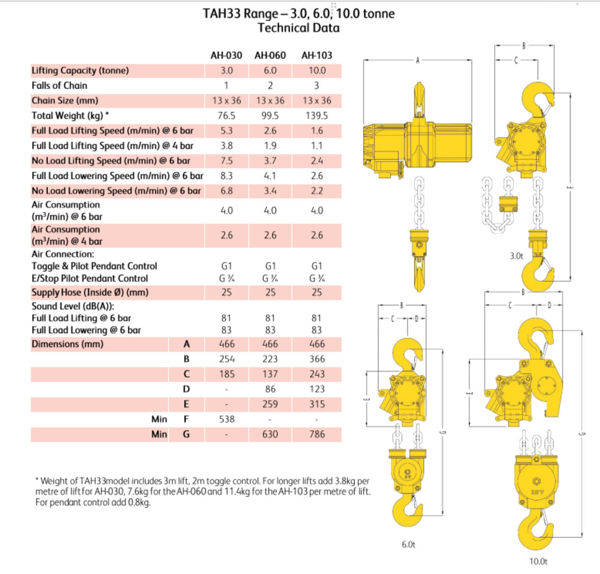

Data Sheet
