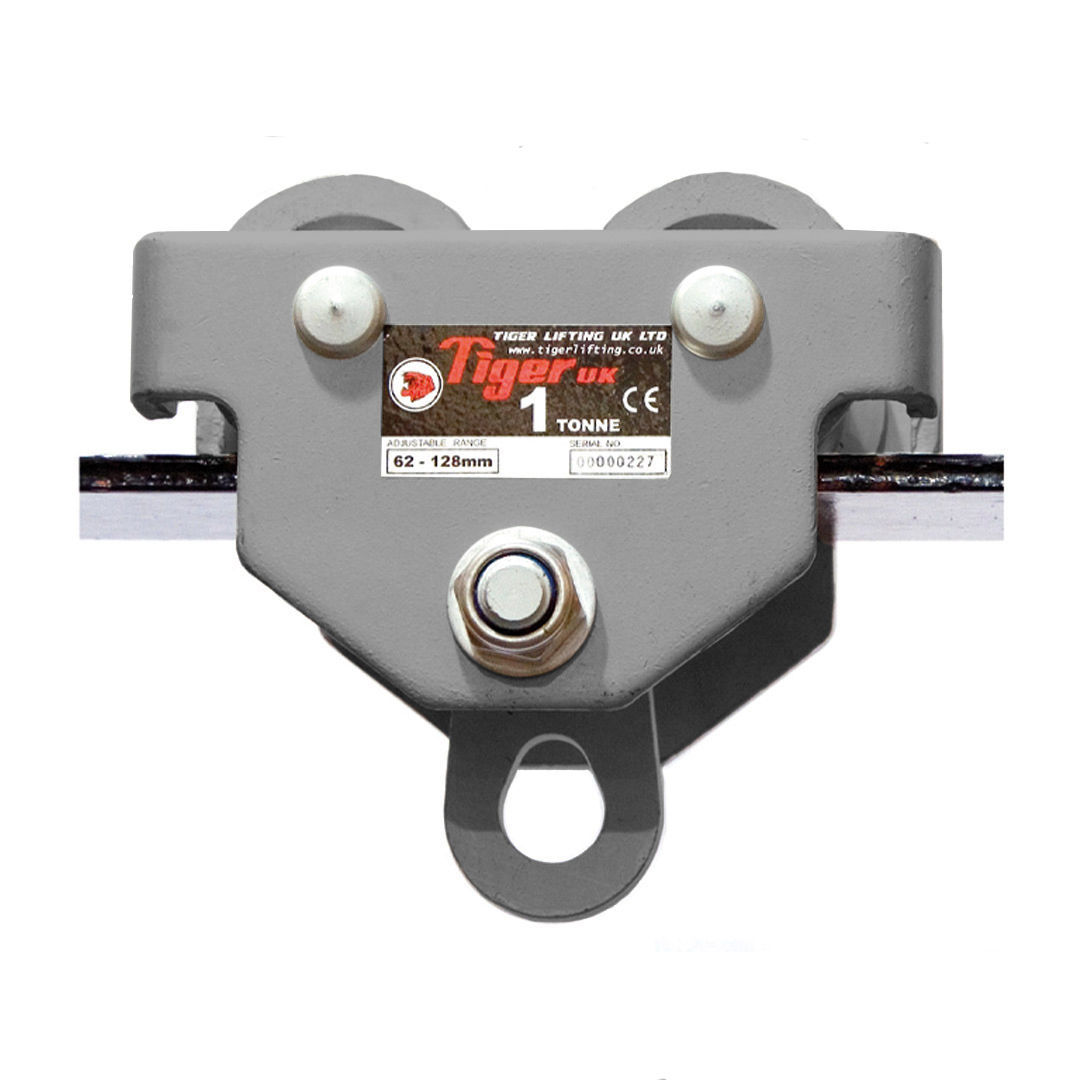

Tiger Corrosion Resistant Trolleys TPS/TGS/TPT/TGT

Standard geared trolley hand chain length – 2.5m. We can change the length to suit your requirements.

Main Features

• Plain Trolley Range from 0.5t to 10.0t
• Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
• Geared type available (with hand chain length to suit your requirements)
• Operating temperature of -30°C to +100°C (temperature range of -50°C to +100°C available as an option)
• Geared Trolley Range from 0.5t to 30.0t
• The wheels run on sealed bearings for smoother rolling with less effort and maintenance
• Extended beam width available
• Optional beam locking device
• The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
• Twin bar or single bar trolleys available
• Corrosion or Spark Resistant versions available
• The 5:1 factor of safety allows for use with manual or powered hoists

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Corrosion Resistant Trolley Features

Critical components, including the hand chain and the pinion gear for geared trolleys, are protected by our OCP (Organic Compound Protection) finish giving unprecedented long-term reliability. Stainless steel fittings are used throughout the trolley. These ensure the initial capital outlay of purchasing a Tiger corrosion resistant trolley is protected by allowing the statutory inspections and re-certifications to be easier and also help with the overall aesthetics of the trolley being maintained in an “as new” condition. Our corrosion resistant trolleys are finished in our high quality white Akzo Nobel powder coat paint offering excellent additional corrosion protection and a high degree of impact protection.
