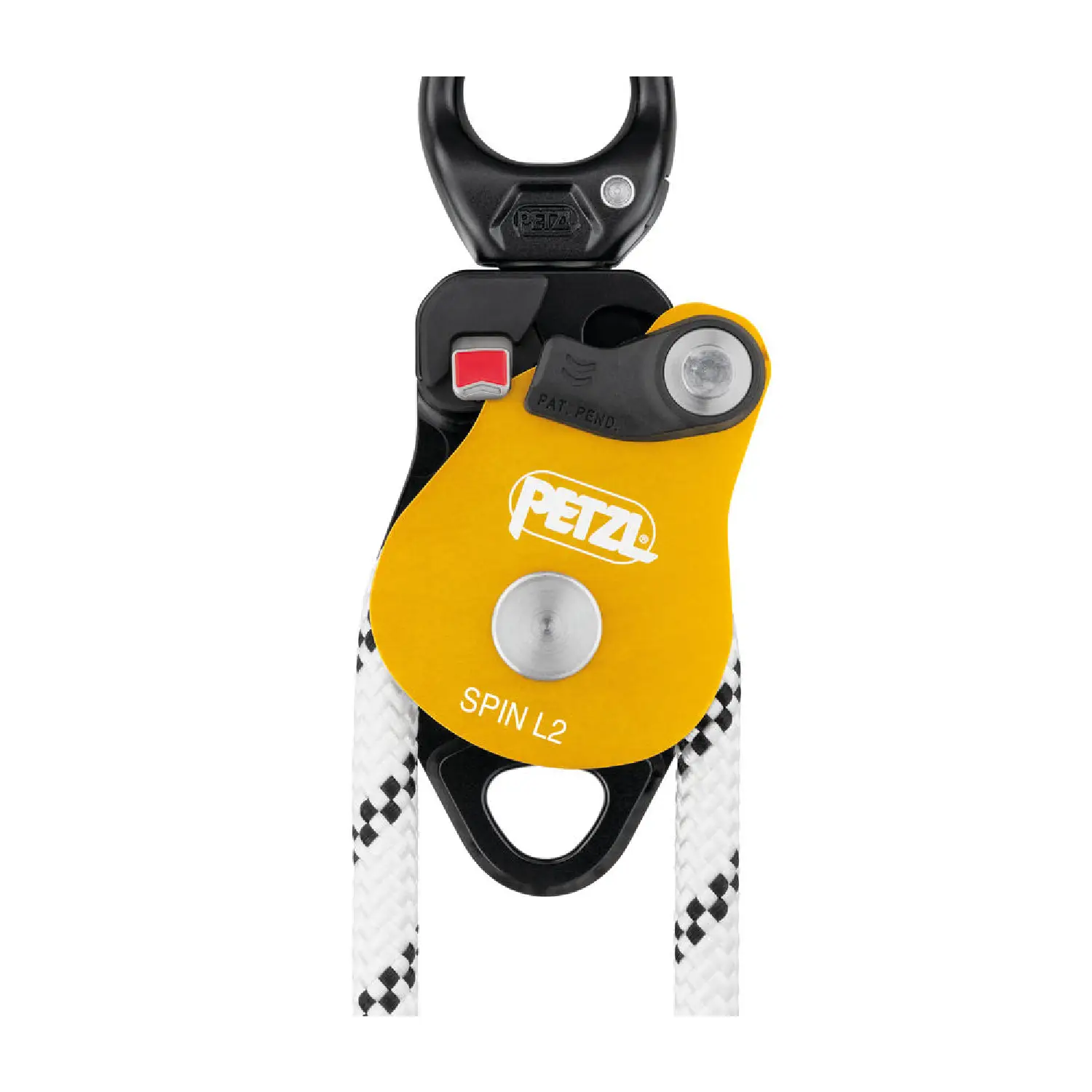

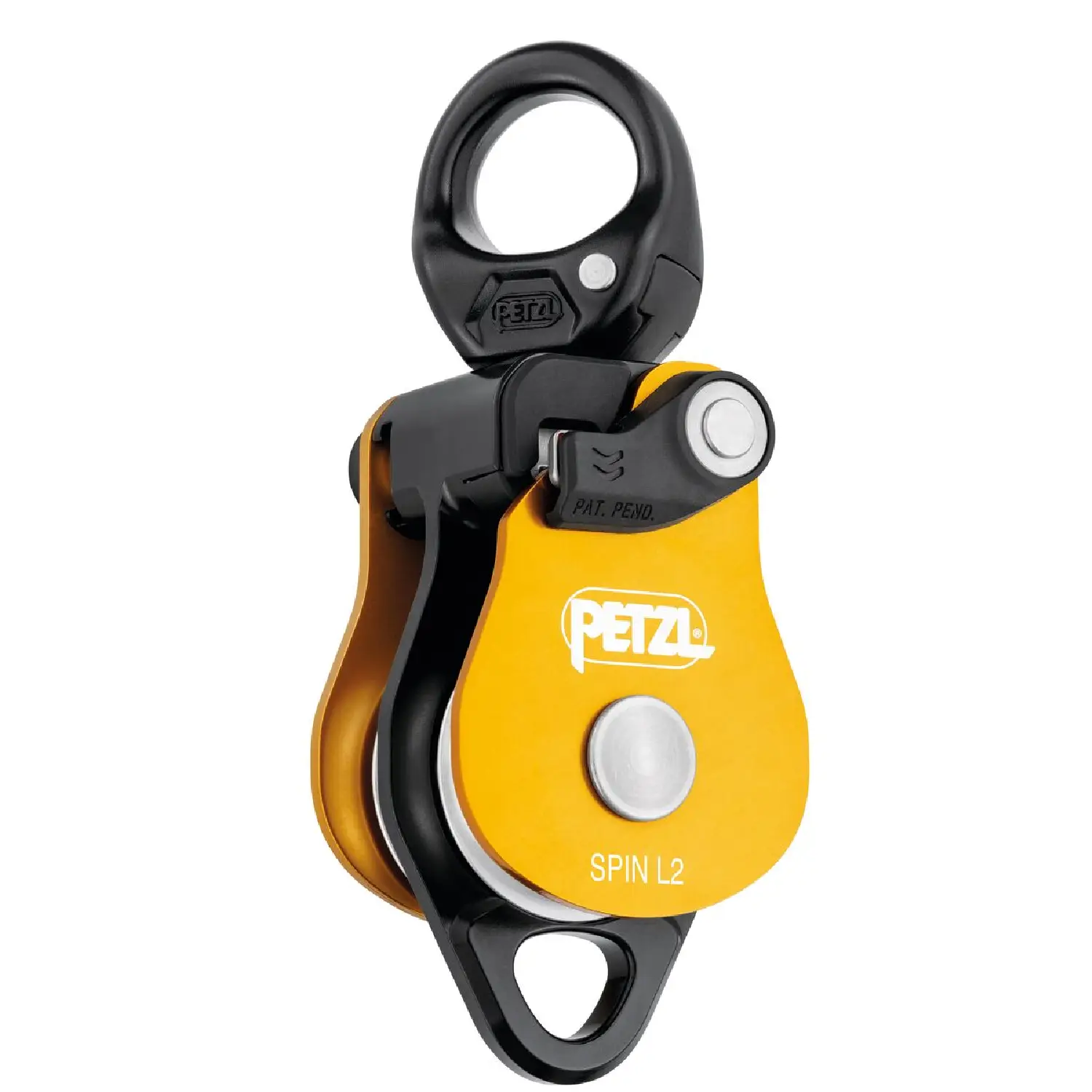

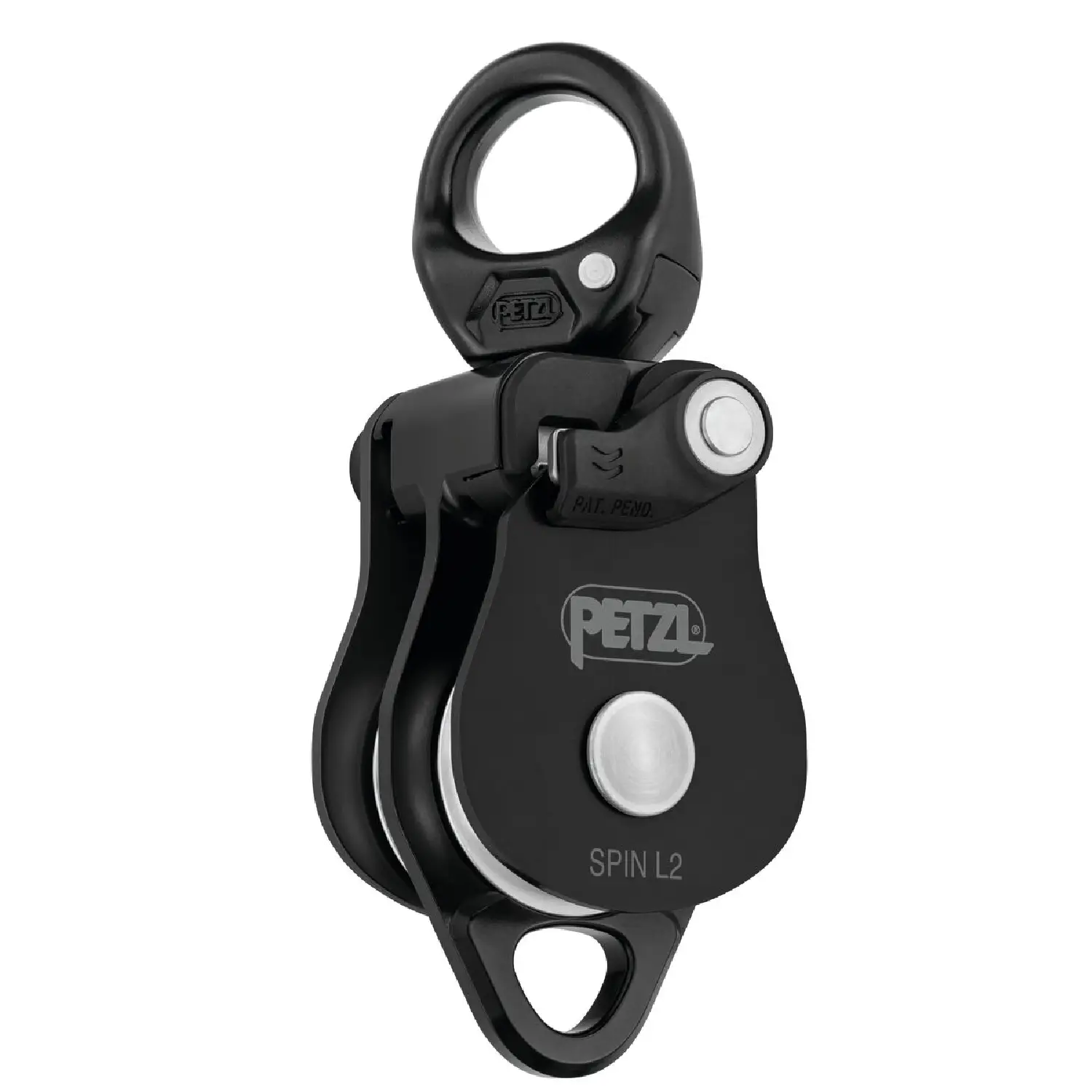

Very high efficiency double pulley with swivel

The SPIN L2 is a double pulley with an integrated swivel, designed for maximum simplicity when setting up haul systems and Tyrolean traverses. Its opening side plate allows the rope to be installed while the pulley remains attached to the anchor, while two parallel-mounted sheaves and an auxiliary attachment point provide exceptional versatility for creating complex hauling systems. Large sealed ball bearing sheaves deliver outstanding efficiency in demanding work-at-height and rescue applications.

Features

• Designed for maximum simplicity:
  • Ideal for setting up haul systems and Tyrolean traverses for work at height and rescue

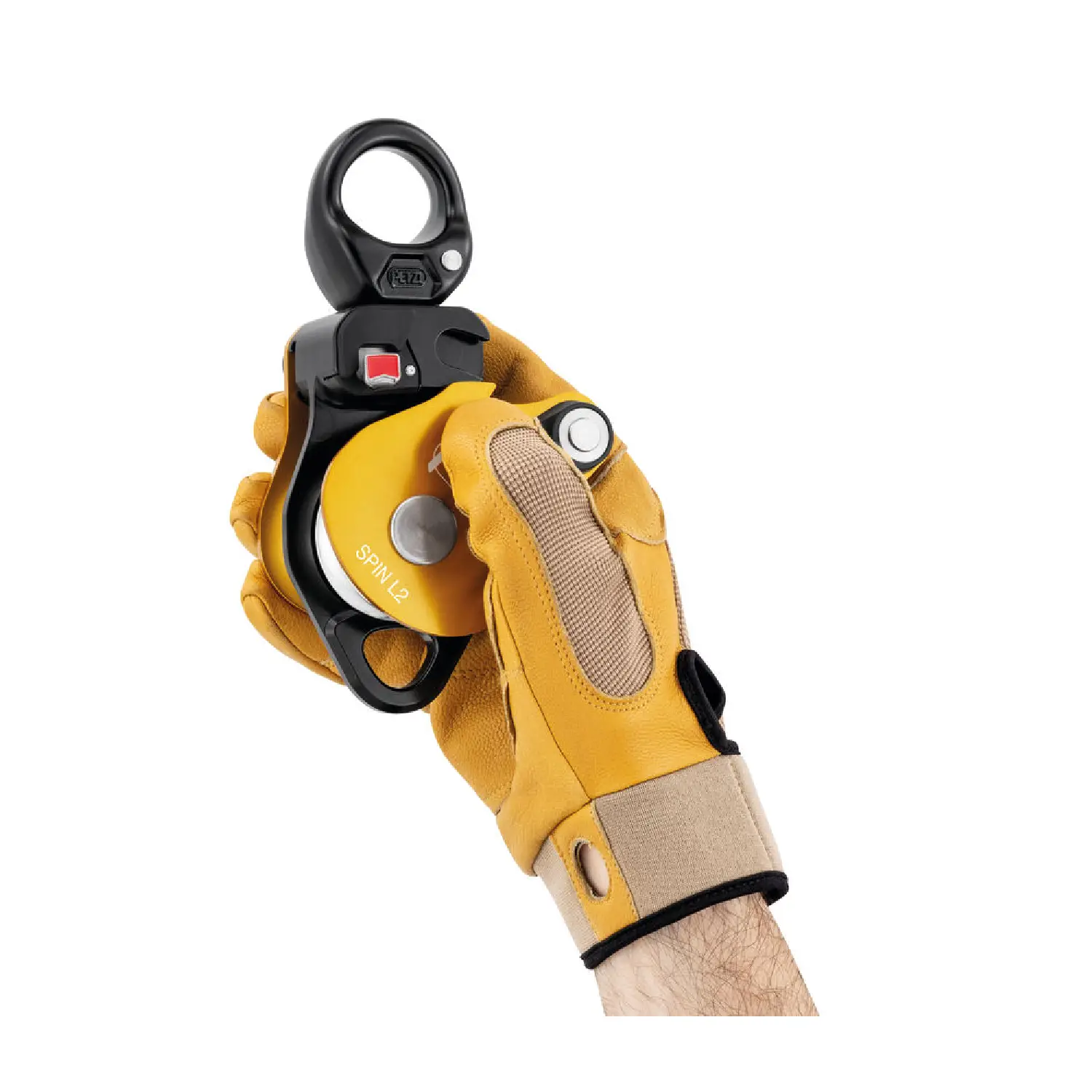

  • Triple-action opening mechanism allows quick operation, even while wearing gloves

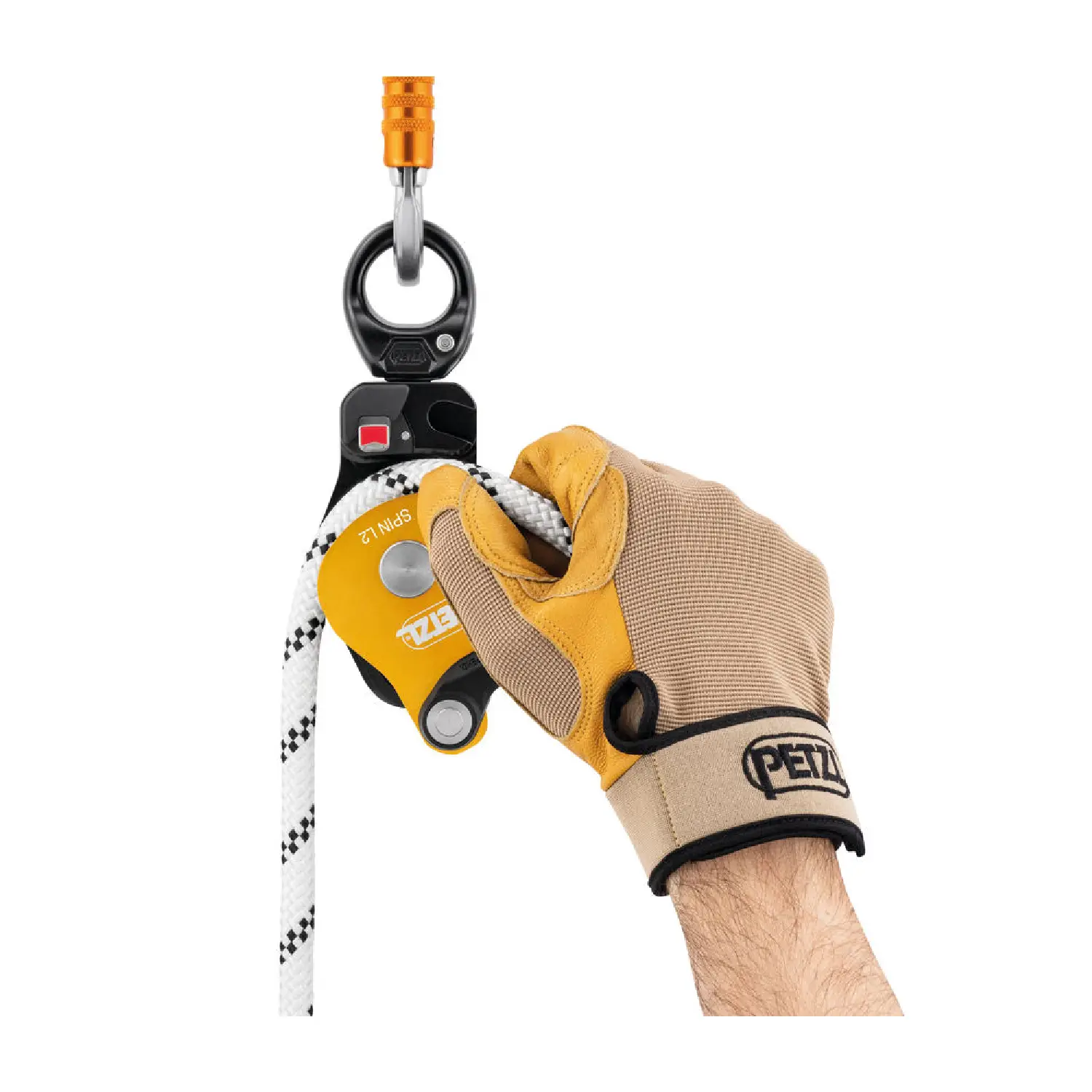

  • Rope can be installed while the pulley remains connected to the anchor
  • Red indicator provides a clear visual warning when the moving side plate is unlocked
  • Special side plate design protects the rope path during operation
• Outstanding efficiency:
  • Large-diameter sheaves mounted on sealed ball bearings provide exceptional efficiency
  • Two parallel-mounted sheaves and an auxiliary attachment point allow a wide range of complex haul systems to be configured
• Easy handling:
  • Integrated swivel allows the pulley to orient itself under load
  • Swivel accepts up to three carabiners for versatile rigging
  • Swivel and auxiliary attachment point allow direct connection of ropes and slings for simplified manoeuvres

Specifications

Weight

480 g

Certification(s)

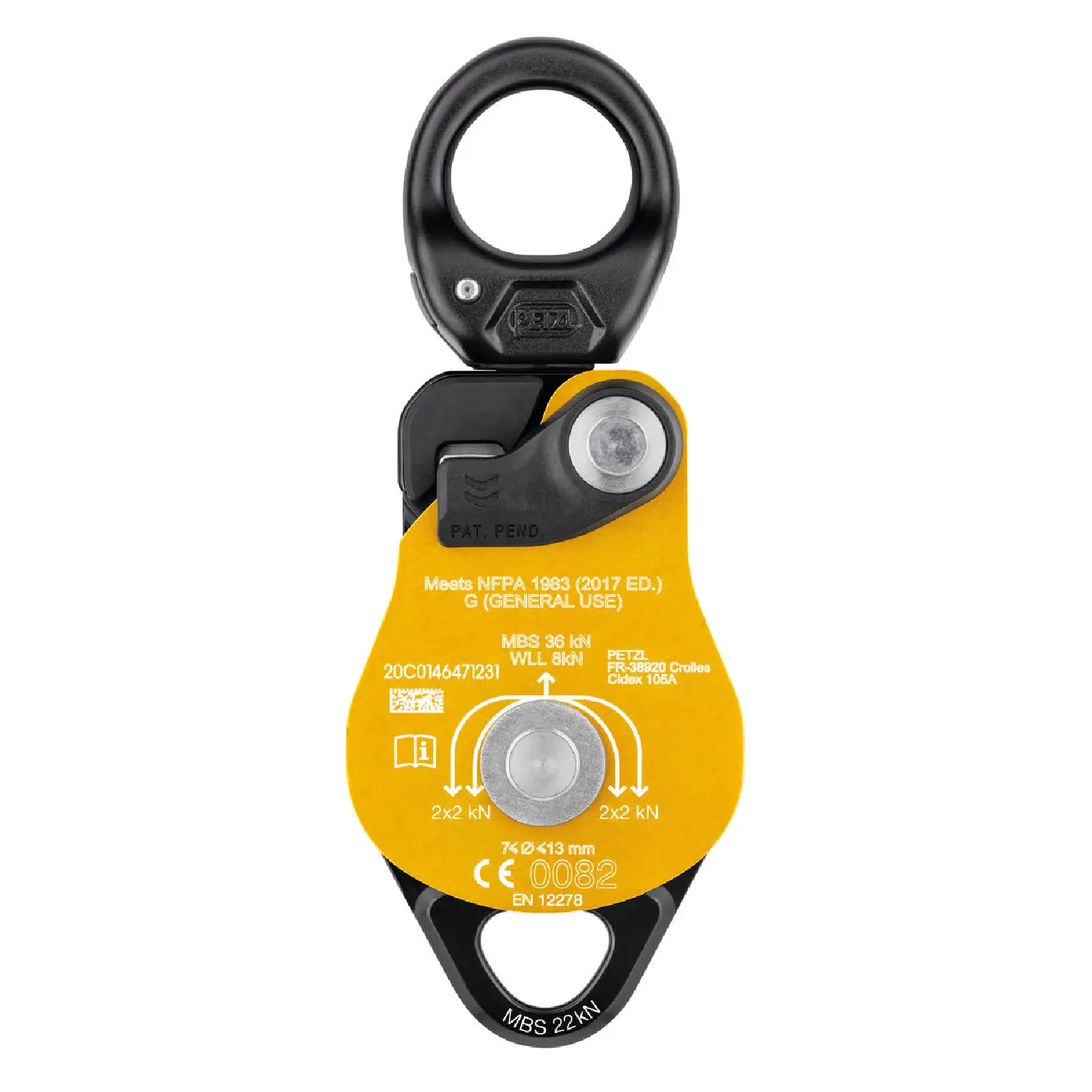

CE EN 12278, NFPA 2500 General Use Pulley, UIAA, XF 494: FZL-H-T9.5/13

Material(s)

Aluminum, stainless steel, nylon

Minimum rope diameter

7 mm

Maximum rope diameter

13 mm

Sheave type

Sealed ball bearings

Sheave diameter

38 mm

Maximum working load

8 kN (3 kN per strand – see Instructions for Use for details)

Breaking strength

36 kN

Efficiency

95%
