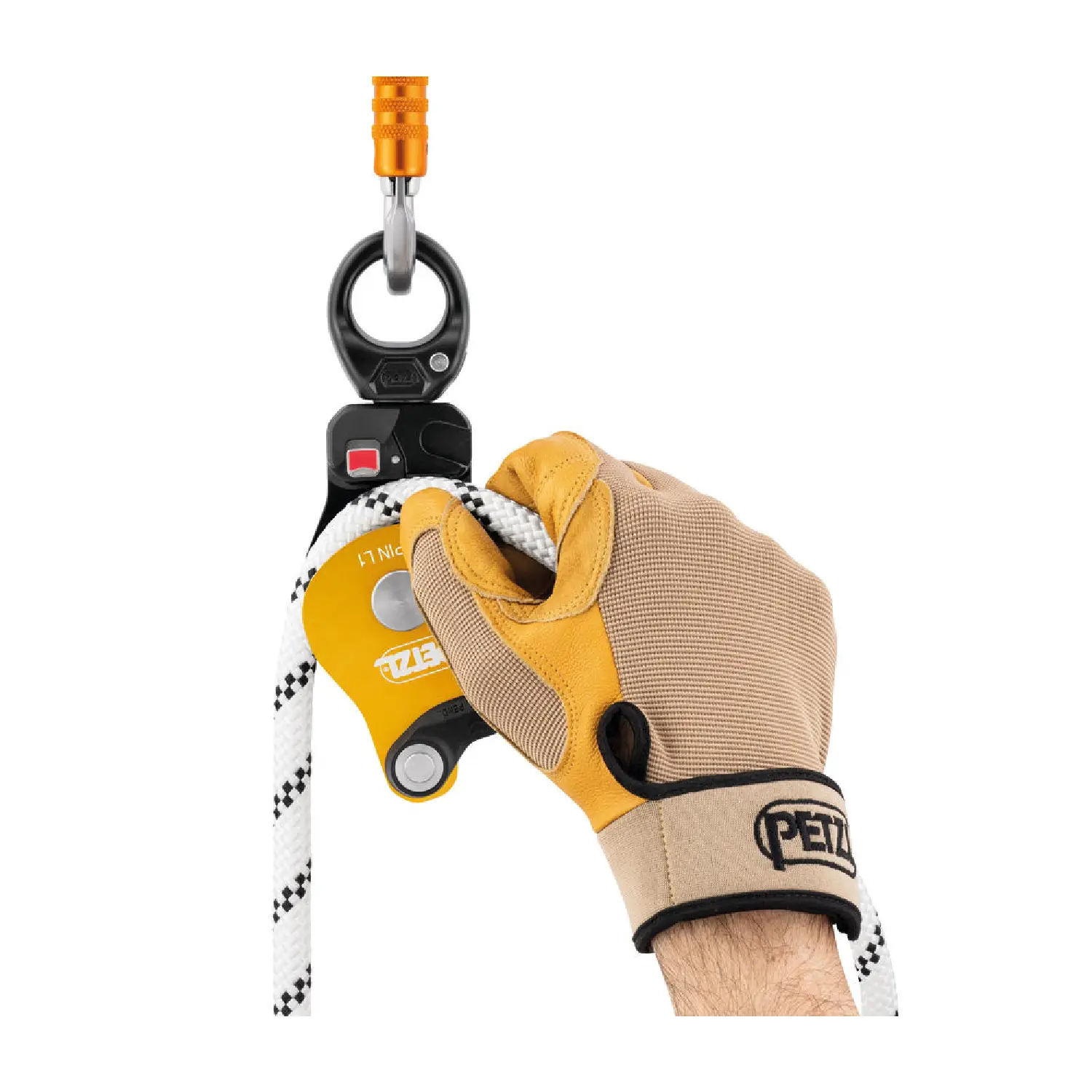

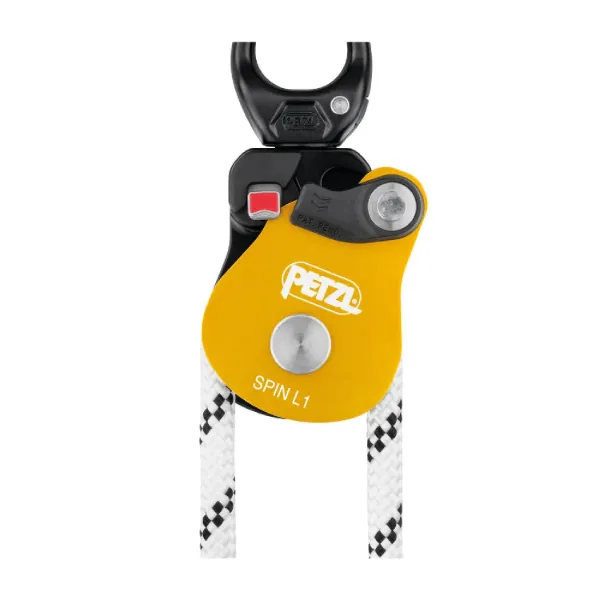

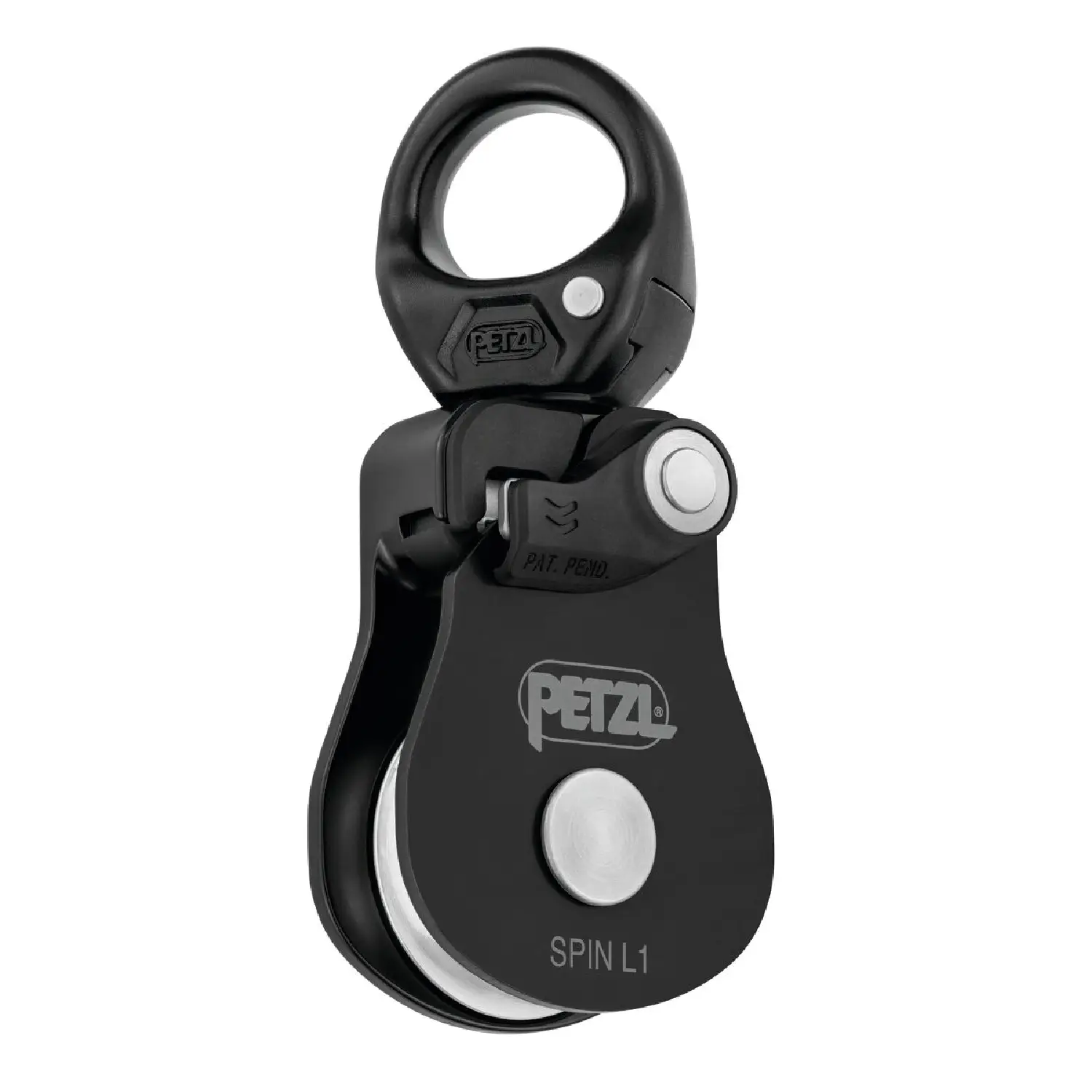

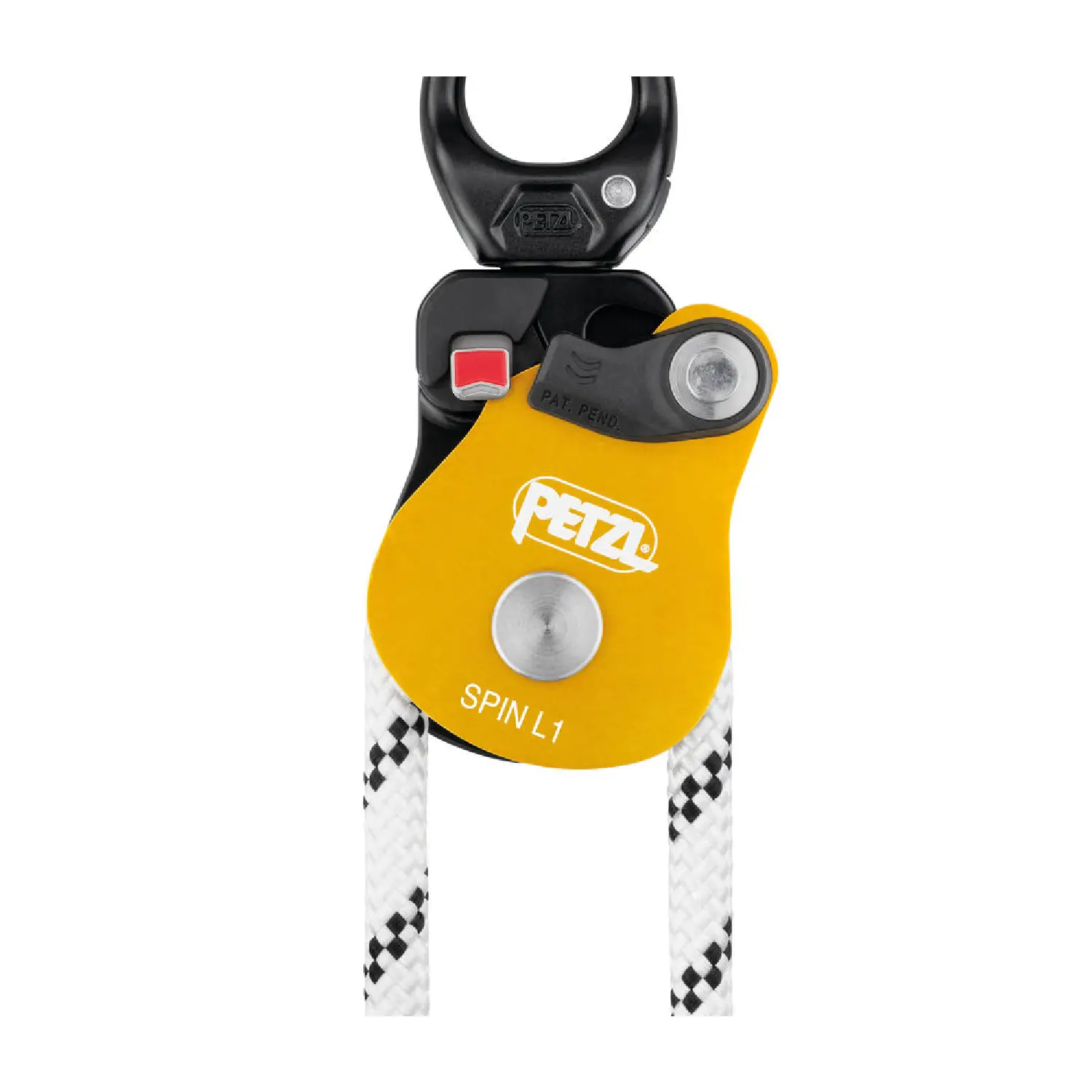

Very high efficiency single pulley with swivel

The SPIN L1 is a high-efficiency single pulley with an integrated swivel, designed for maximum simplicity when setting up hauling systems, load deviations, and Tyrolean traverses. Its opening side plate allows the rope to be installed while the pulley remains attached to the anchor, while the large sealed ball bearing sheave and swivel provide smooth operation and outstanding efficiency for work at height, rescue, and tree care applications.

Features

• Designed for maximum simplicity:
  • Ideal for setting up hauling systems, load deviations, and Tyrolean traverses for work at height, rescue, and tree care

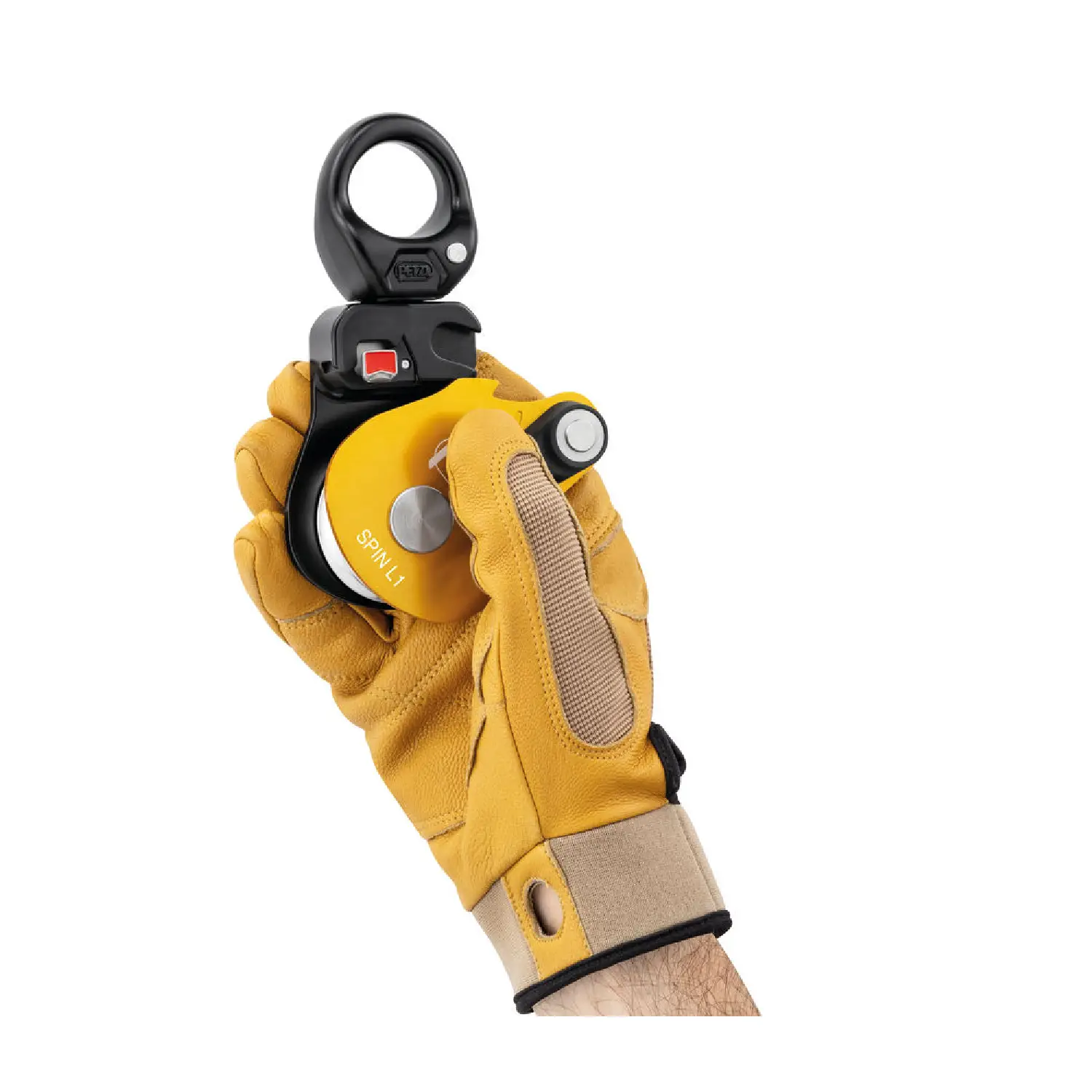

  • Triple-action opening mechanism allows quick operation, even while wearing gloves
  • Rope can be installed while the pulley remains connected to the anchor
  • Red indicator provides a clear visual warning when the moving side plate is unlocked
  • Special side plate design protects the rope path during operation
• High efficiency and easy handling:
  • Large-diameter sheave mounted on sealed ball bearings provides outstanding efficiency
  • Integrated swivel allows the pulley to orient itself under load for smoother operation
  • Swivel accepts up to three carabiners and allows direct connection of ropes and slings for easier rigging

Specifications

Weight

290 g

Certification(s)

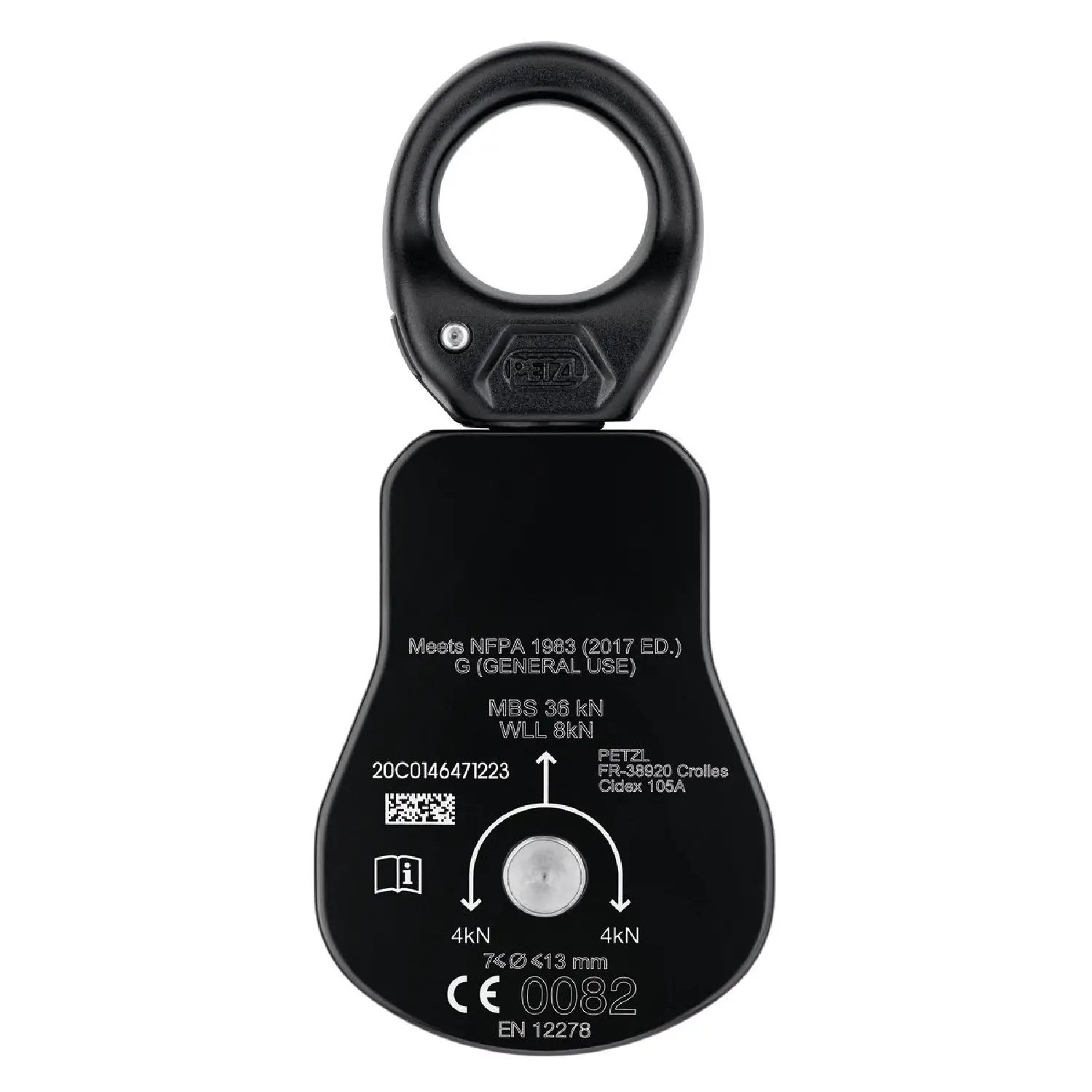

CE EN 12278, NFPA 2500 General Use Pulley, UIAA, XF 494: FZL-H-T9.5/13

Material(s)

Aluminum, stainless steel, nylon

Minimum rope diameter

7 mm

Maximum rope diameter

13 mm

Sheave type

Sealed ball bearings

Sheave diameter

38 mm

Maximum working load

4 × 2 = 8 kN

Breaking strength

36 kN

Efficiency

95%
