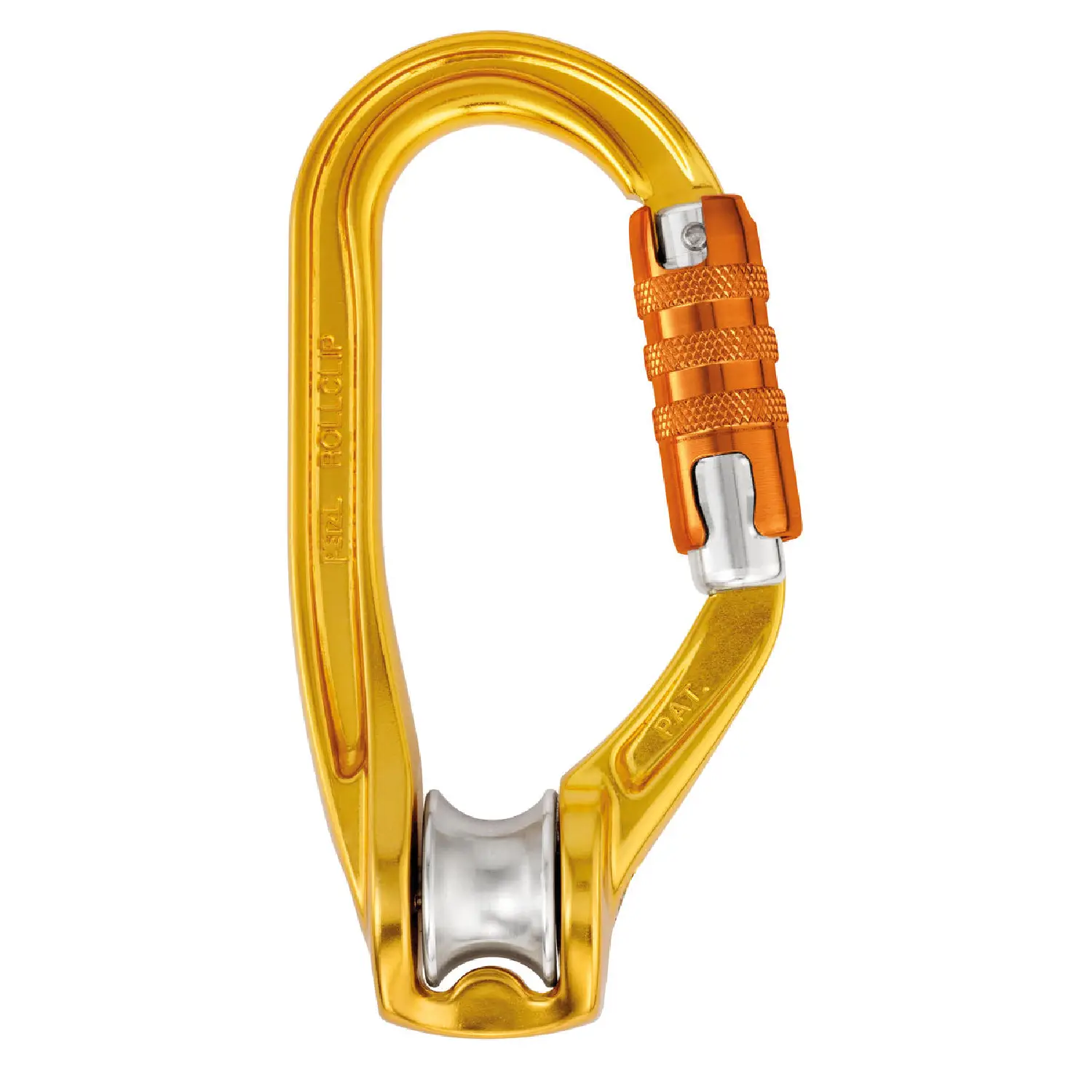

Pulley-carabiner that facilitates rope installation when attached to the anchor

The ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side, making it easy to install the rope while the pulley remains connected to the anchor. Available with either an automatic TRIACT-LOCK locking system or a non-locking gate, it combines the functionality of a pulley and carabiner in a compact, efficient design. It can also be used with the CAPTIV positioning bar to maintain optimal alignment during use.

Features

• Easier handling:
  • Sheave mounted on sealed ball bearings provides excellent efficiency
  • Gate opening on the pulley side allows easy rope installation while the pulley remains attached to the anchor
  • Compatible with the CAPTIV positioning bar to encourage loading along the major axis and reduce the risk of the carabiner rotating
  • Keylock system helps prevent accidental snagging during clipping and unclipping
• Lightweight and durable:
  • H-shaped cross-section provides an excellent strength-to-weight ratio
  • Profile helps protect product markings from abrasion
• Available in TRIACT-LOCK automatic locking and non-locking versions

Specifications

Material(s)

Aluminum

Rope compatibility

7 to 13 mm

Sheave diameter

18 mm

Maximum working load

2 × 2 = 4 kN

Efficiency

85%

Major axis strength

20 kN

Minor axis strength

8 kN

Open gate strength

7 kN
