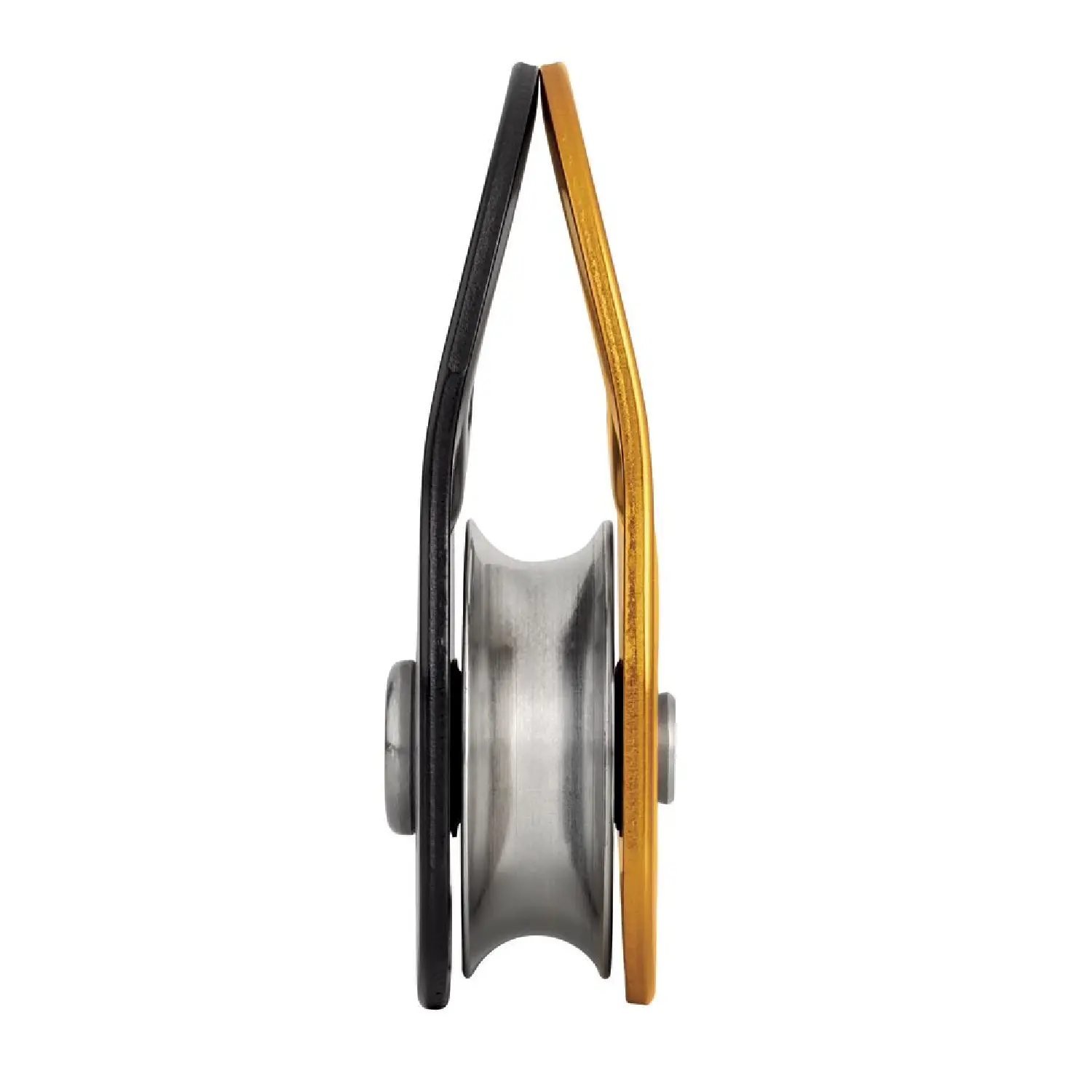

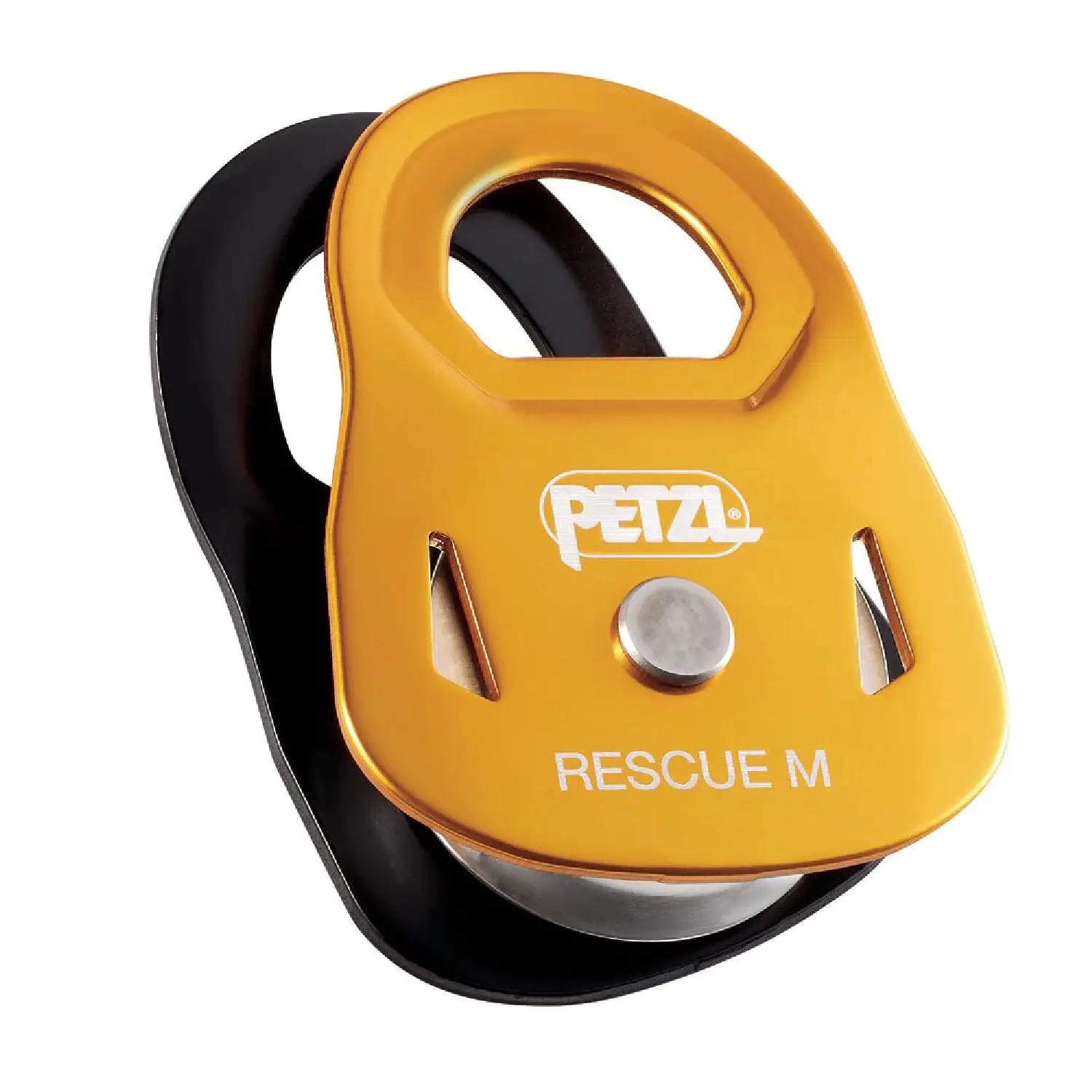

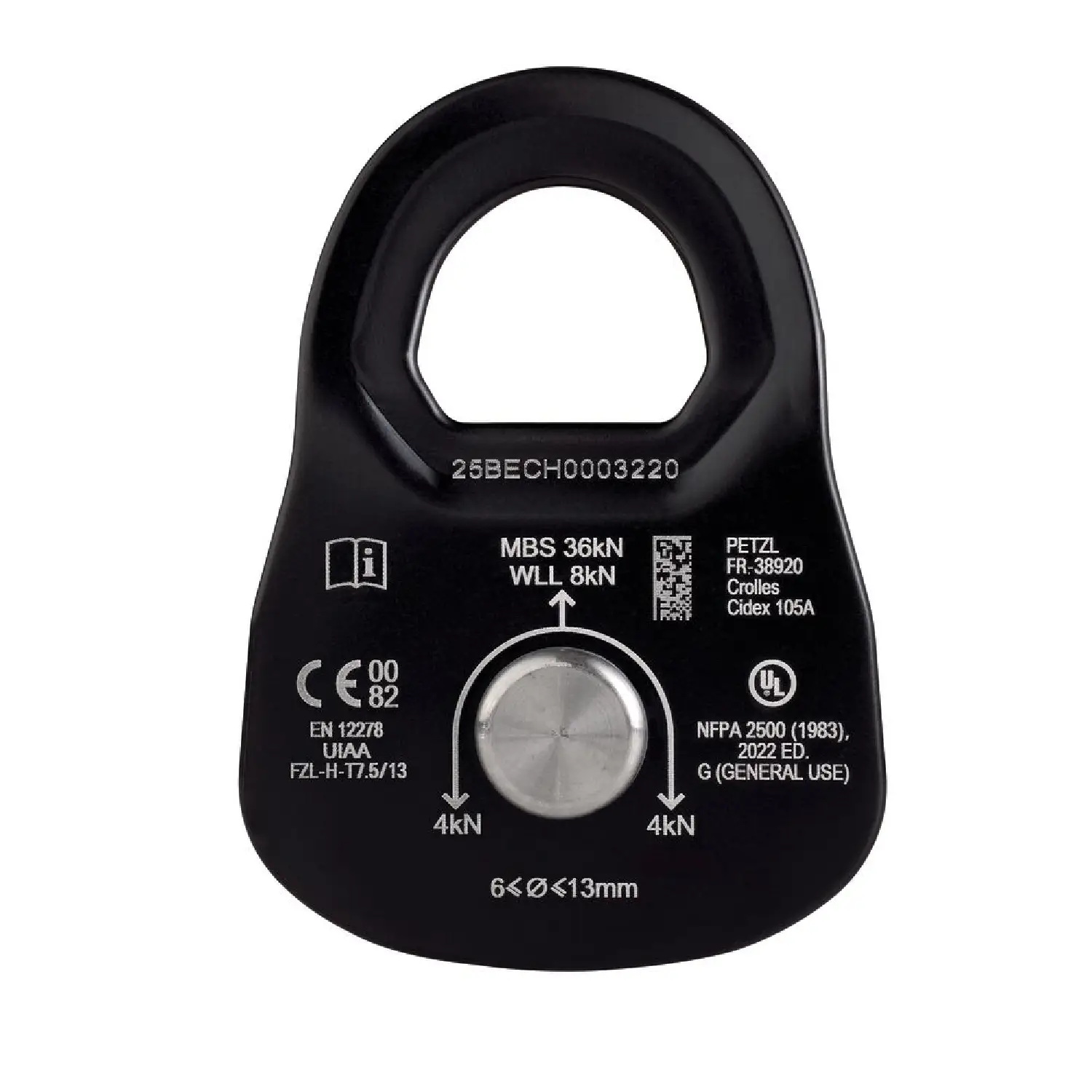

High-strength, very high efficiency pulley

The RESCUE M pulley is designed for rescue and work-at-height professionals. Built to handle heavy loads and intensive use, it combines exceptional strength with a large-diameter sealed ball bearing sheave to deliver outstanding efficiency. Moving side plates enable quick rope installation, while its robust design makes it ideal for demanding rescue and rigging applications.

Features

• Designed for heavy loads and intensive use:
  • Large-diameter sheave mounted on sealed ball bearings provides very high efficiency
  • Large attachment holes accommodate up to two carabiners for versatile rigging and ease of use
  • Specific side plate design protects the rope path during operation
• Easy to use:
  • Moving side plates allow quick and simple rope installation
• Available in two colours: Yellow or Black

Specifications

Rope compatibility

6 to 13 mm

Sheave diameter

38 mm

Ball bearings

Yes

Efficiency

95%

Maximum working load

8 kN

Breaking strength

36 kN

Weight

158 g

Certification(s)

CE EN 12278, UIAA, NFPA General Use, XF 494 General

Material(s)

Aluminum, stainless steel
