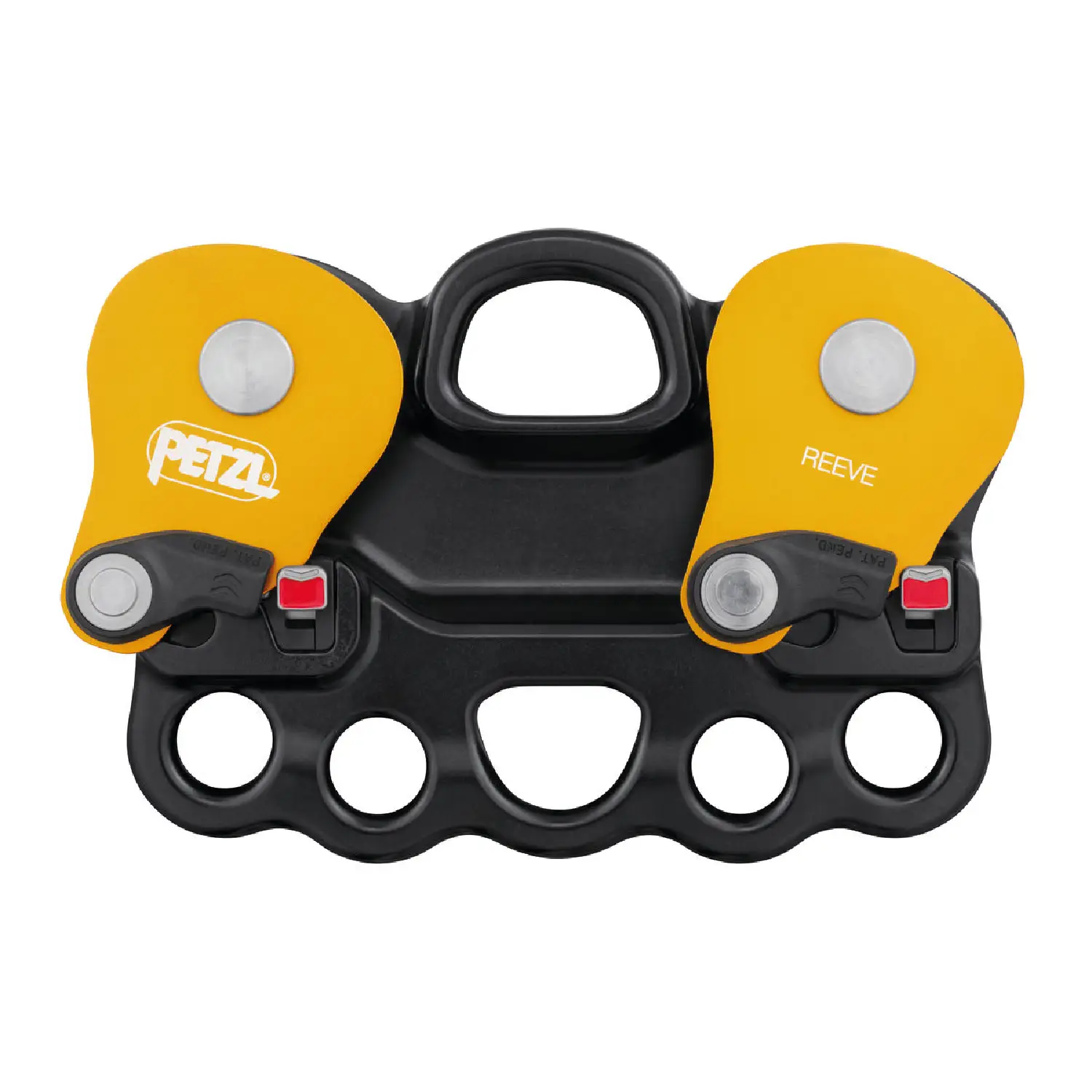

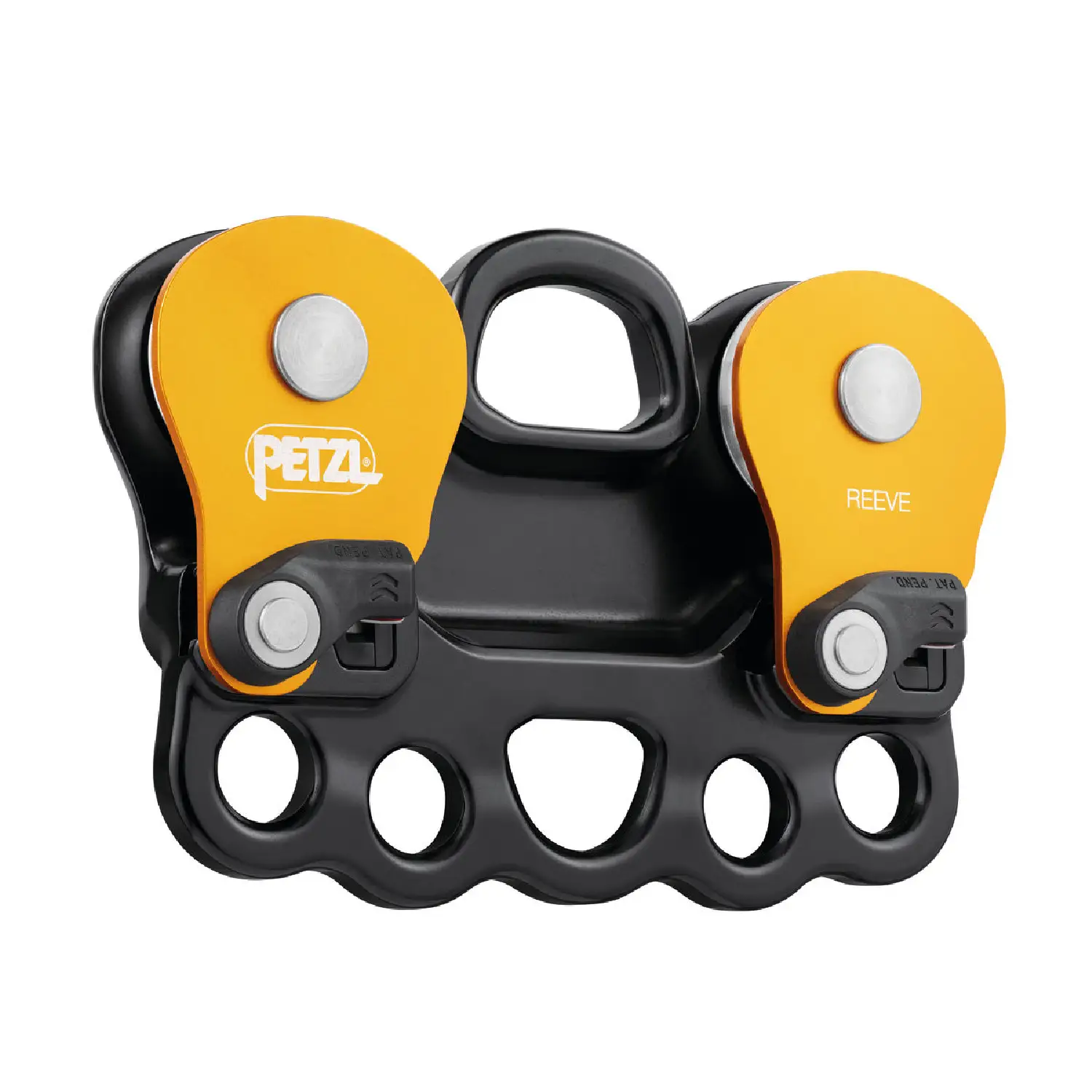

Carriage pulley for rescue on a tensioned highline

The REEVE carriage pulley combines two pulleys and a rigging plate into a compact, integrated solution for simplifying rescue system setup on tensioned highlines. Its streamlined design reduces the number of connectors required while keeping system height to a minimum. Large sealed ball bearing sheaves provide exceptional efficiency, while multiple connection points offer flexible rigging options for rescue operations.

Features

• Designed for tensioned highline rescue:
  • Integrated solution combining two pulleys and a rigging plate to simplify rescue system setup
  • Compact design reduces the number of connectors required and minimizes system height
• Optimised operation and efficiency:

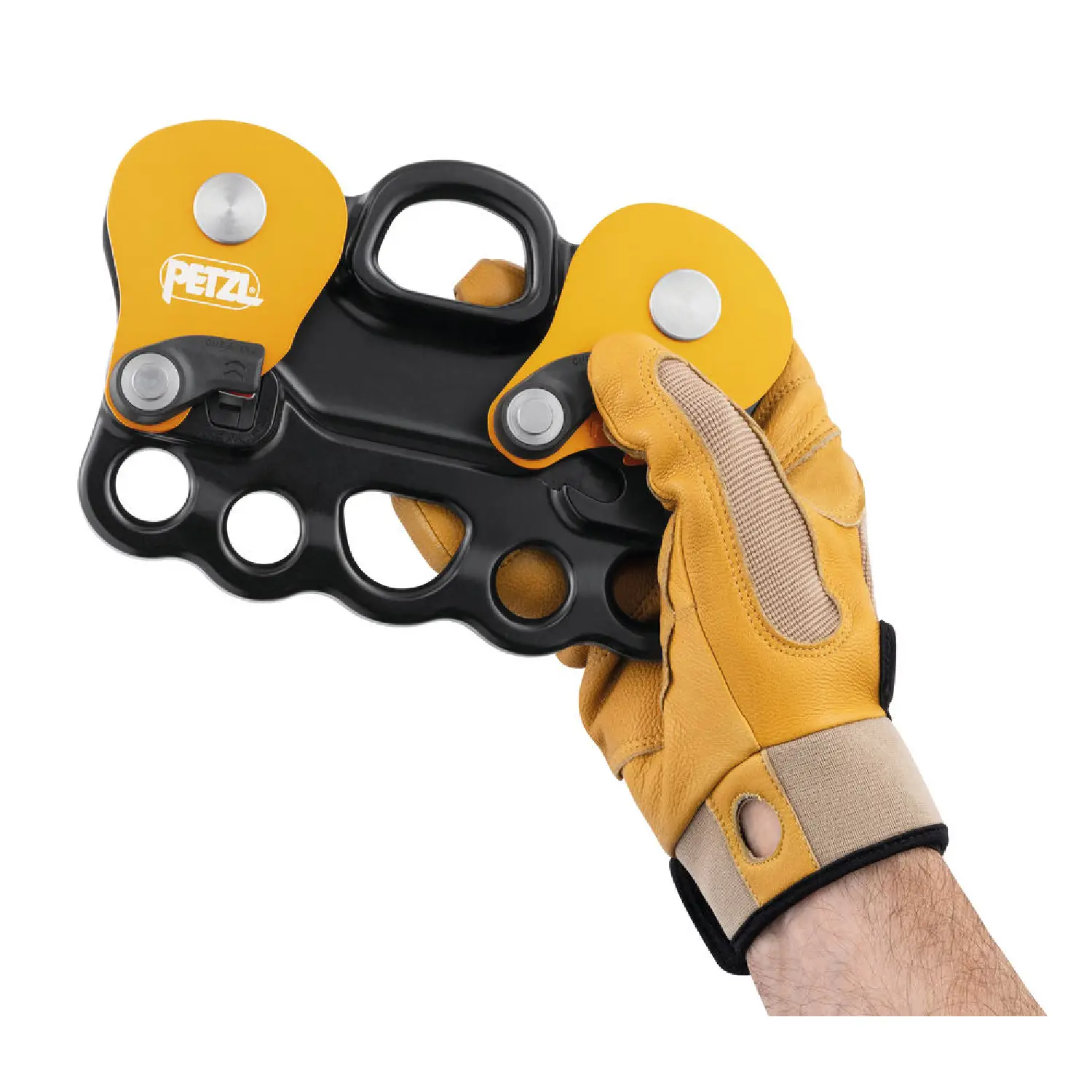

  • Triple-action opening side plates allow quick operation, even while wearing gloves
  • Red indicators provide a clear visual warning if the side plates are not securely locked
  • Two large-diameter sheaves mounted on sealed ball bearings provide excellent efficiency
  • System can be rigged before installation onto the main line for faster deployment
• Flexible rigging options:
  • Can be made redundant by positioning two REEVE pulleys side by side (where rope spacing allows), or by attaching an additional pulley to the upper connection point

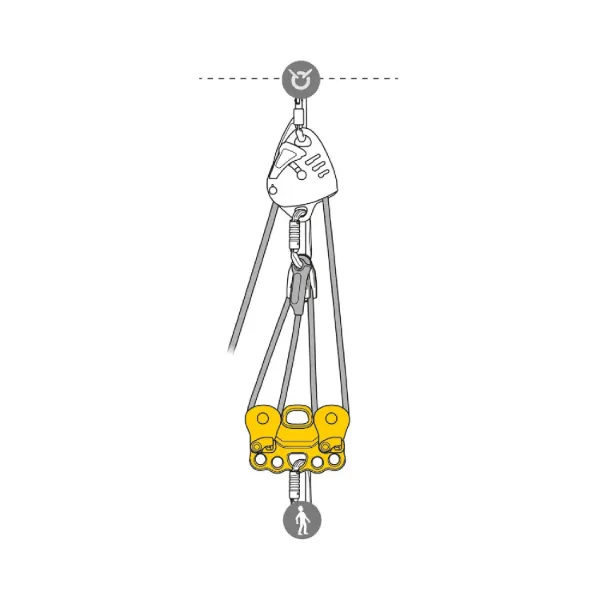

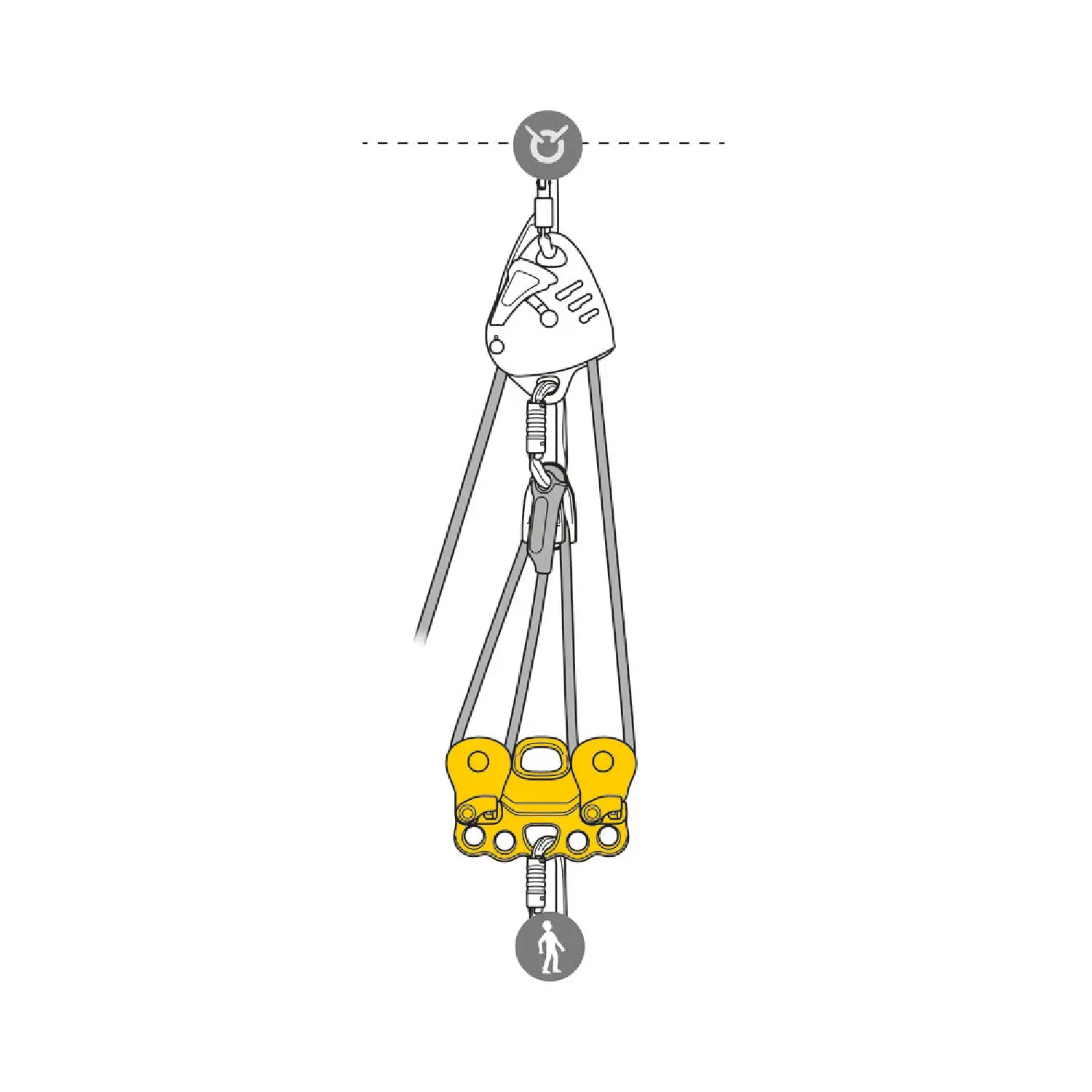

  • Can also be incorporated into haul systems
  • Attachment hole design allows ropes or slings to be threaded directly through the device
  • 19 mm attachment holes accommodate the locking sleeves of most carabiners
  • Odd number of attachment holes keeps the system centred and balanced

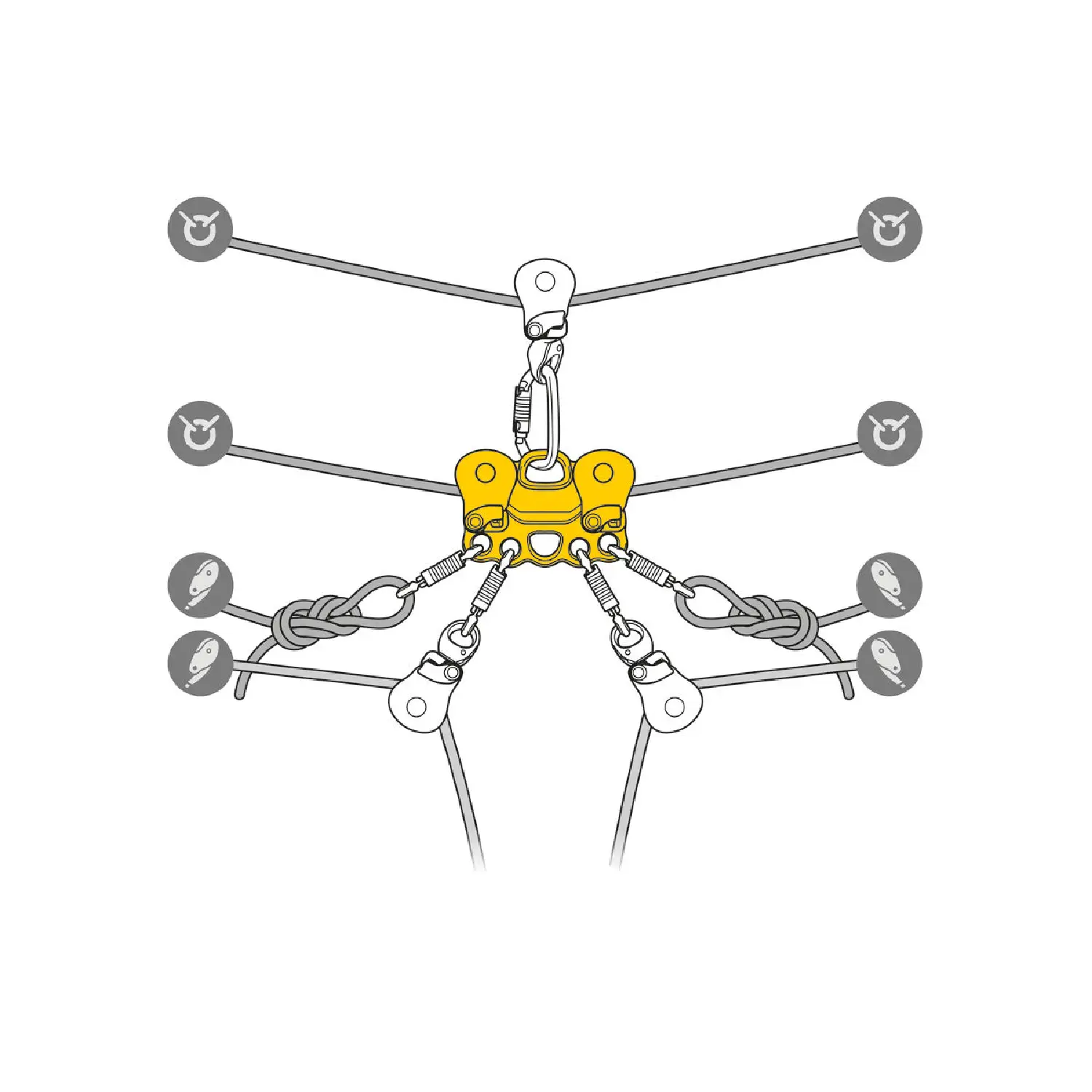

  • Supports simultaneous connection of up to three people

Specifications

Weight

650 g

Certification(s)

CE EN 12278, NFPA 2500 General Use, XF 494: FZL-H-T 9.5/13

Material(s)

Aluminum, stainless steel, nylon

Minimum rope diameter

7 mm

Maximum rope diameter

13 mm

Sheave type

Sealed ball bearings

Sheave diameter

38 mm

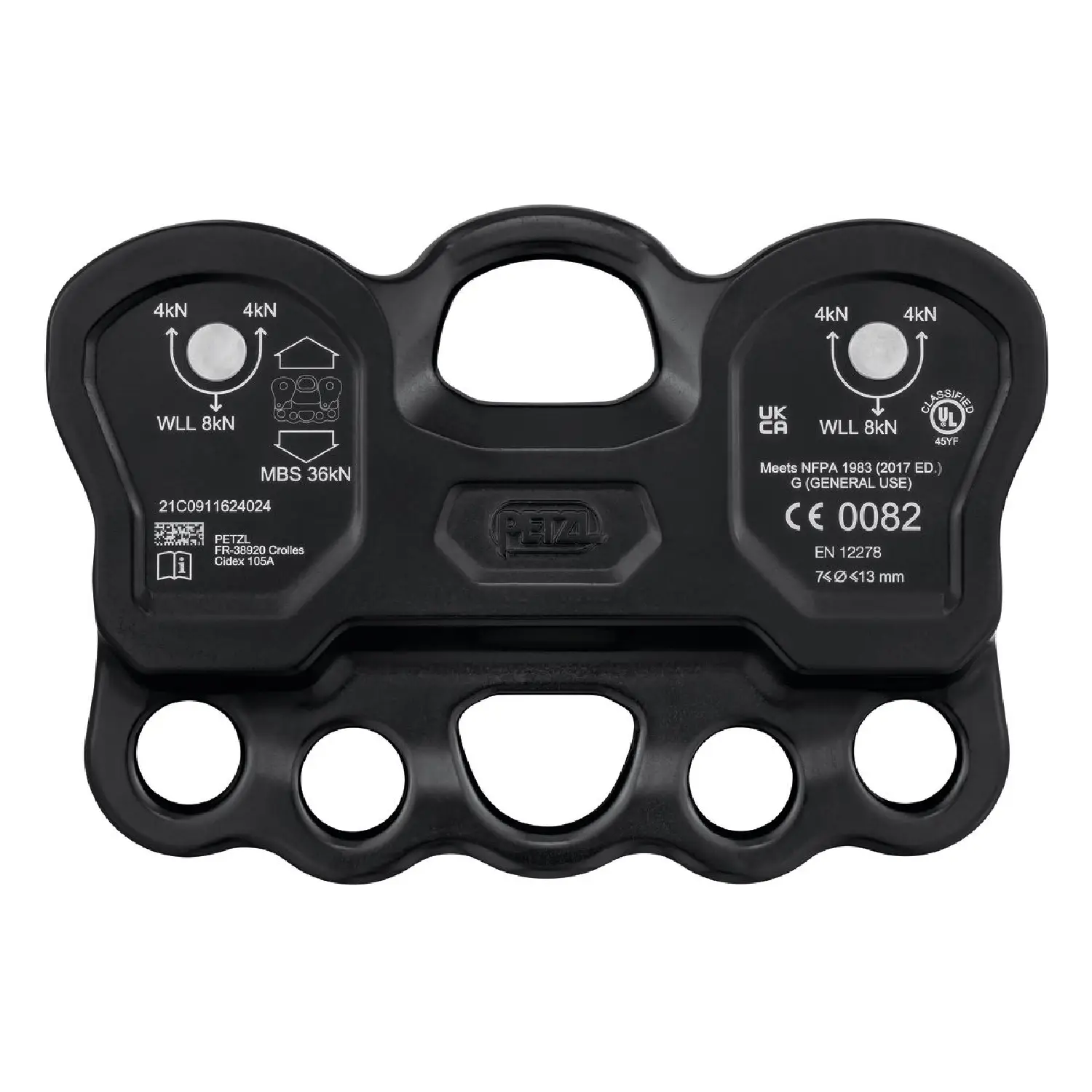

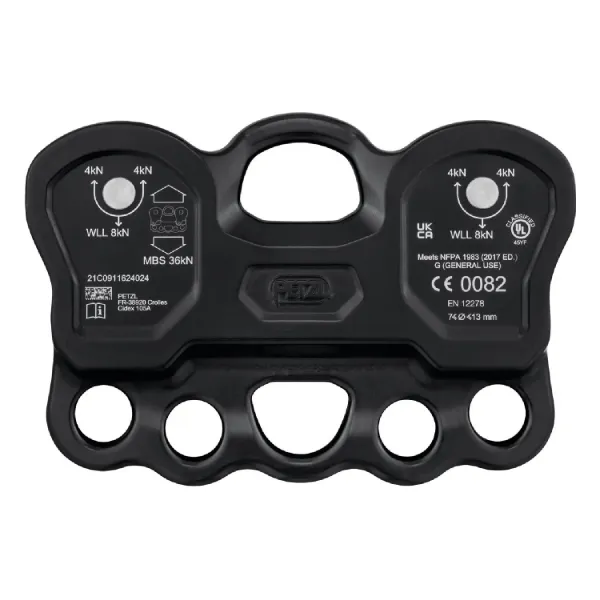

Working load limit

4 × 2 kN = 8 kN

Breaking strength

36 kN

Efficiency

95%
