Compact and drop-resistant high-efficiency progress-capture pulley

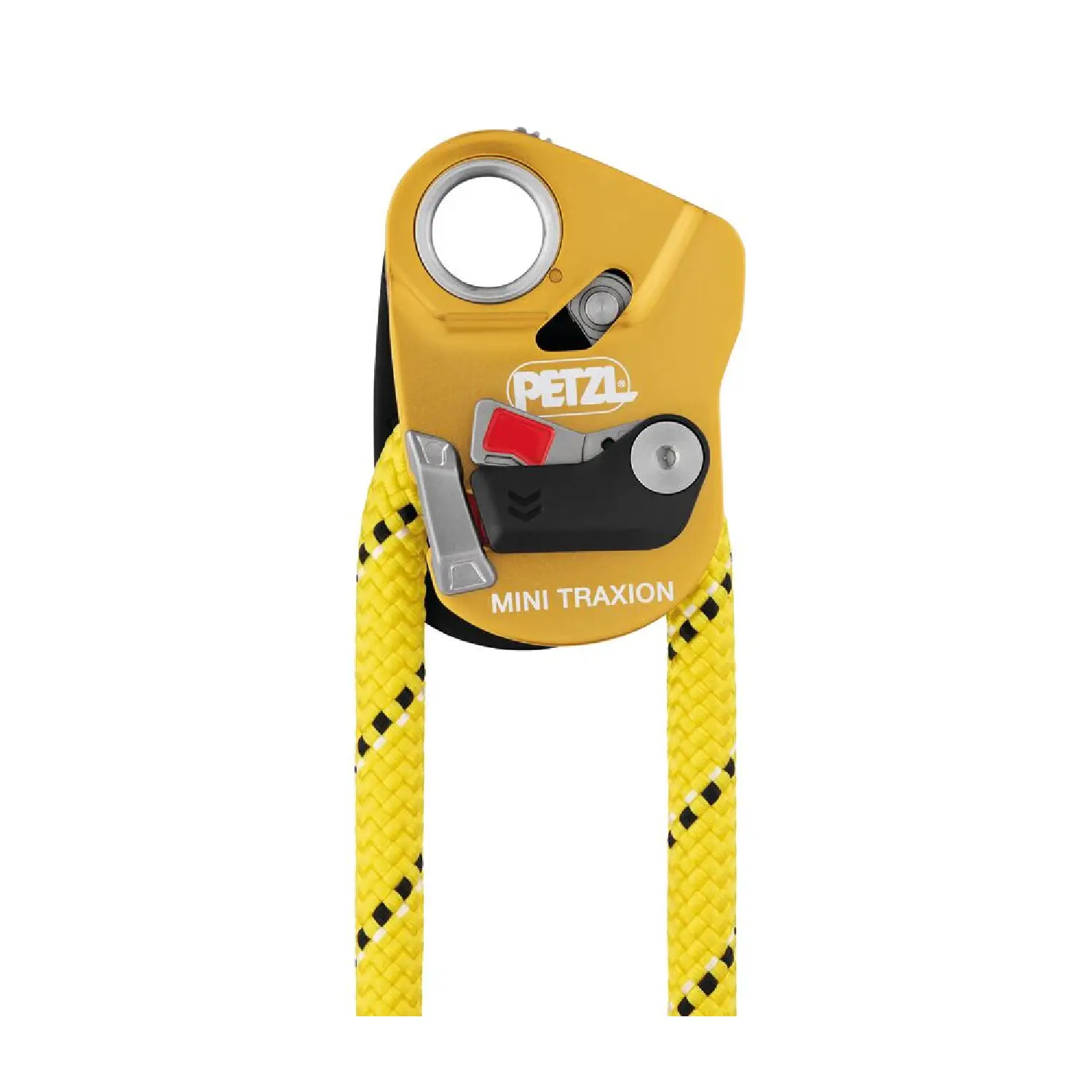

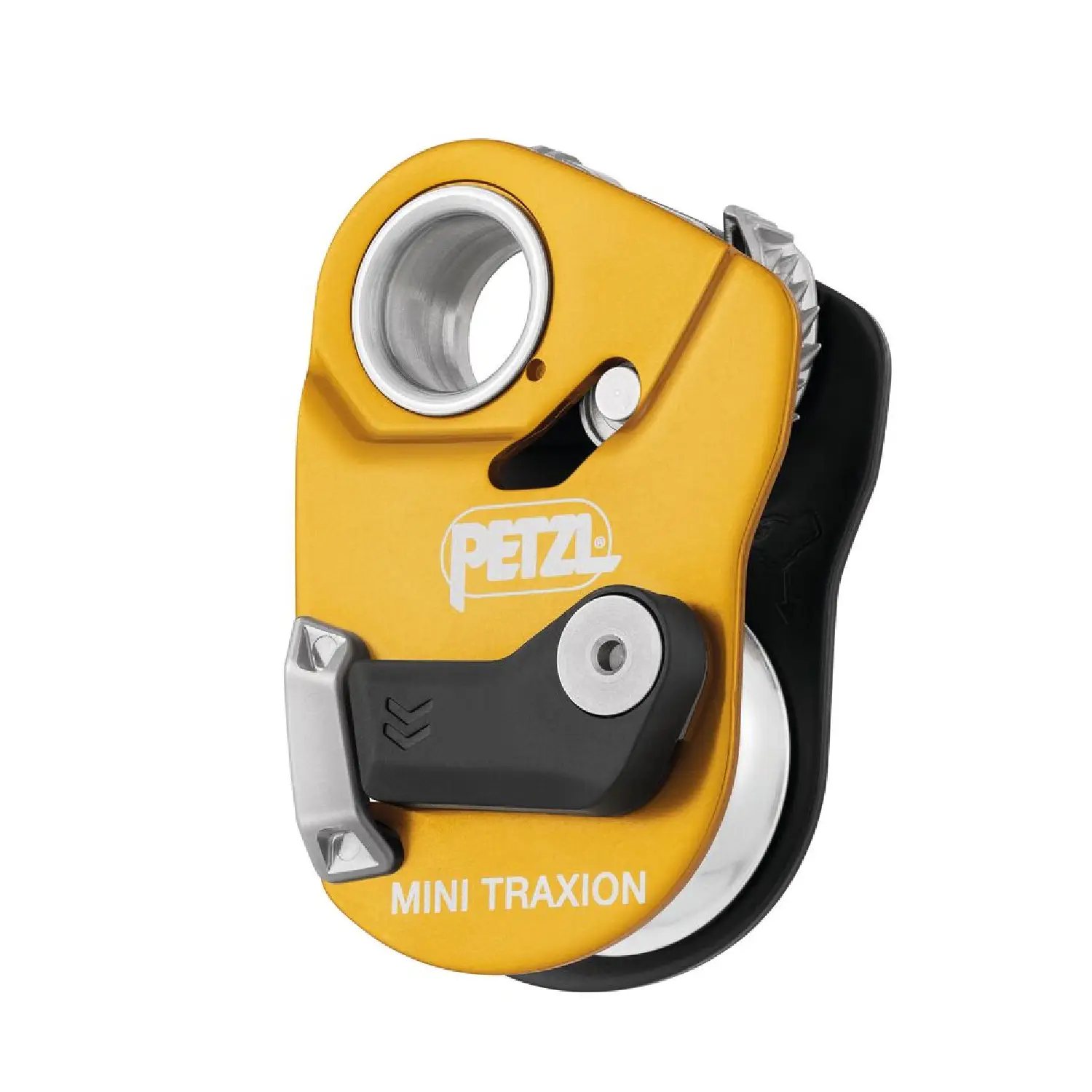

The MINI TRAXION is a compact, high-efficiency progress-capture pulley designed for setting up haul systems. Its opening side plate allows the rope to be installed while the pulley remains attached to the anchor, making it quick and convenient to use. Featuring a sealed ball bearing sheave and a toothed cam, it is ideal for hauling mid-weight loads in technical rescue and rope access applications.

Features

• Drop-resistant and easy to operate:

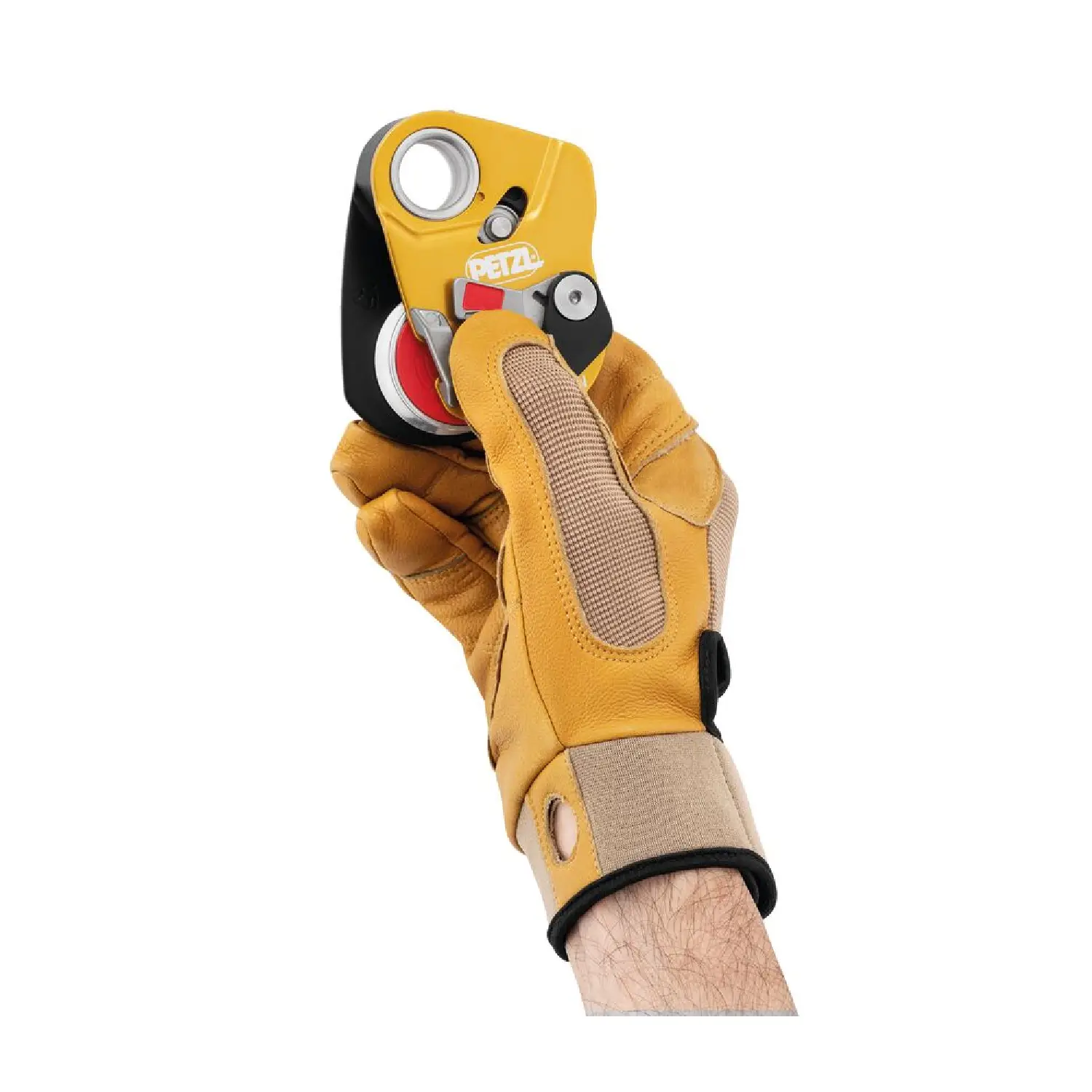

  • Triple-action opening mechanism allows quick operation, even while wearing gloves

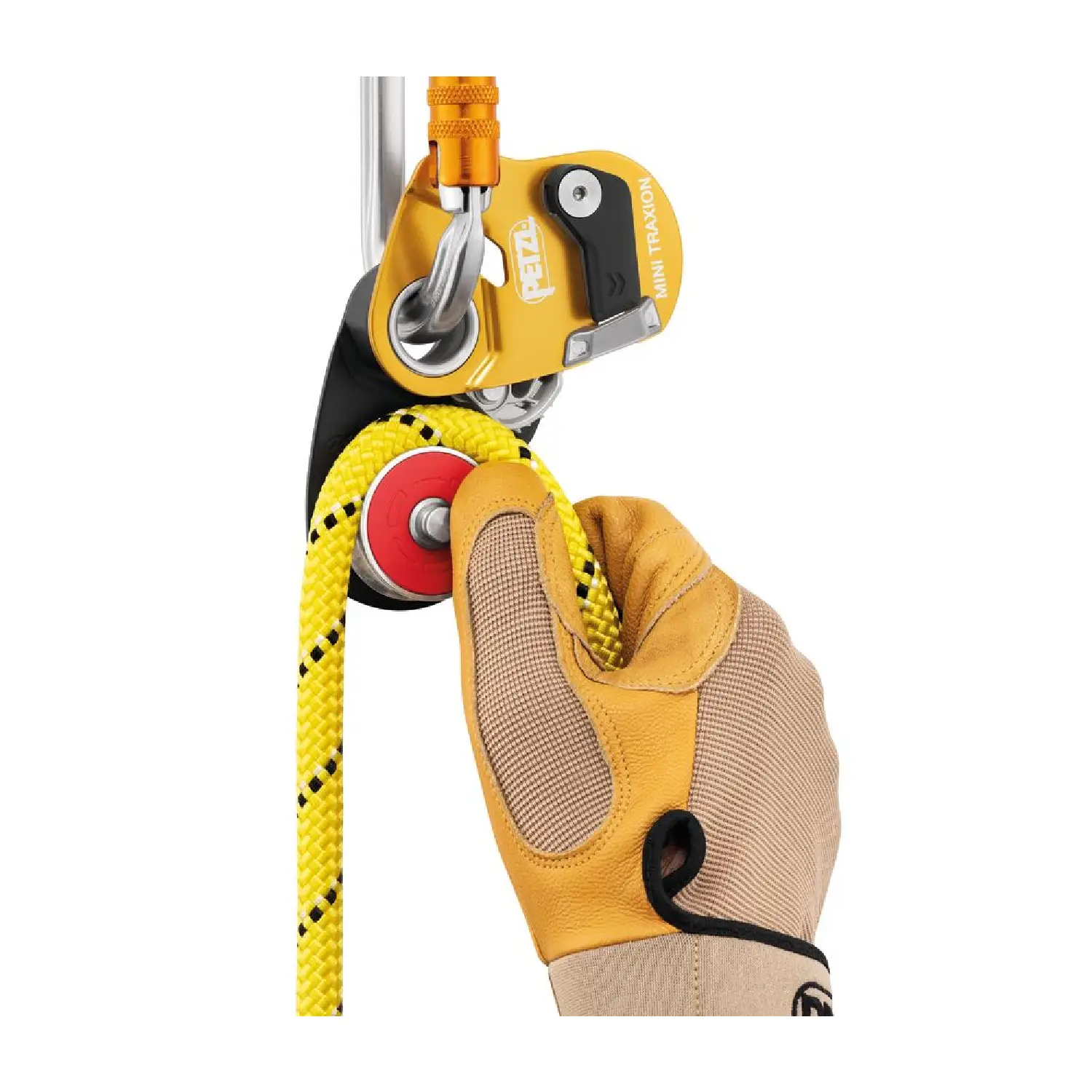

  • Rope can be installed while the pulley remains connected to the anchor
  • Red indicator provides a clear visual warning when the moving side plate is unlocked
  • Special side plate design protects the rope path during operation
• Designed for hauling mid-weight loads:
  • Medium-diameter aluminum sheave mounted on sealed ball bearings provides excellent efficiency
• Versatile design:

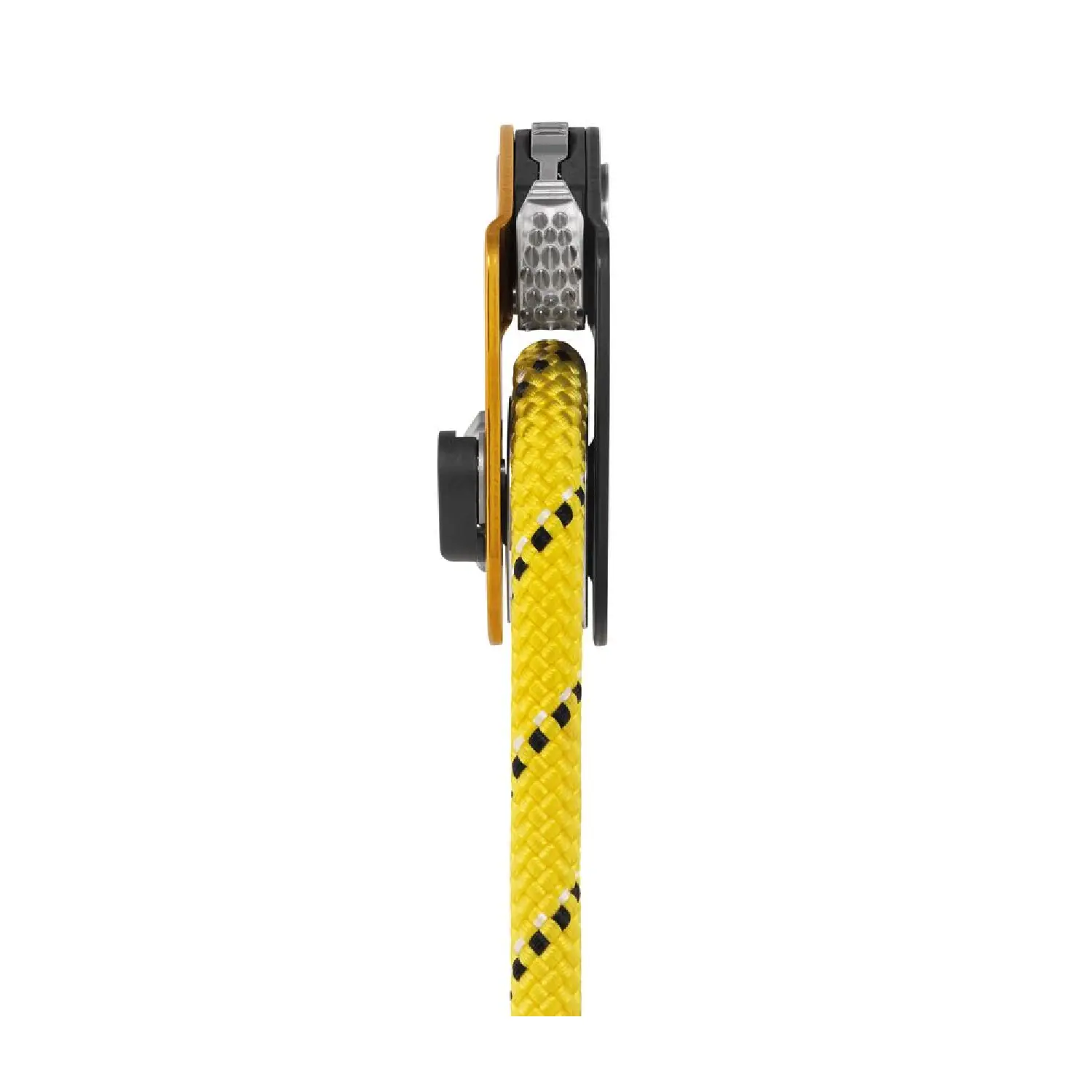

  • Toothed cam with a self-cleaning slot delivers reliable performance, even on frozen or dirty ropes
  • Can be used as a standard pulley by locking the cam in the raised position
  • Hole in the cam allows installation of a remote control cord

Specifications

Weight

150 g

Certification(s)

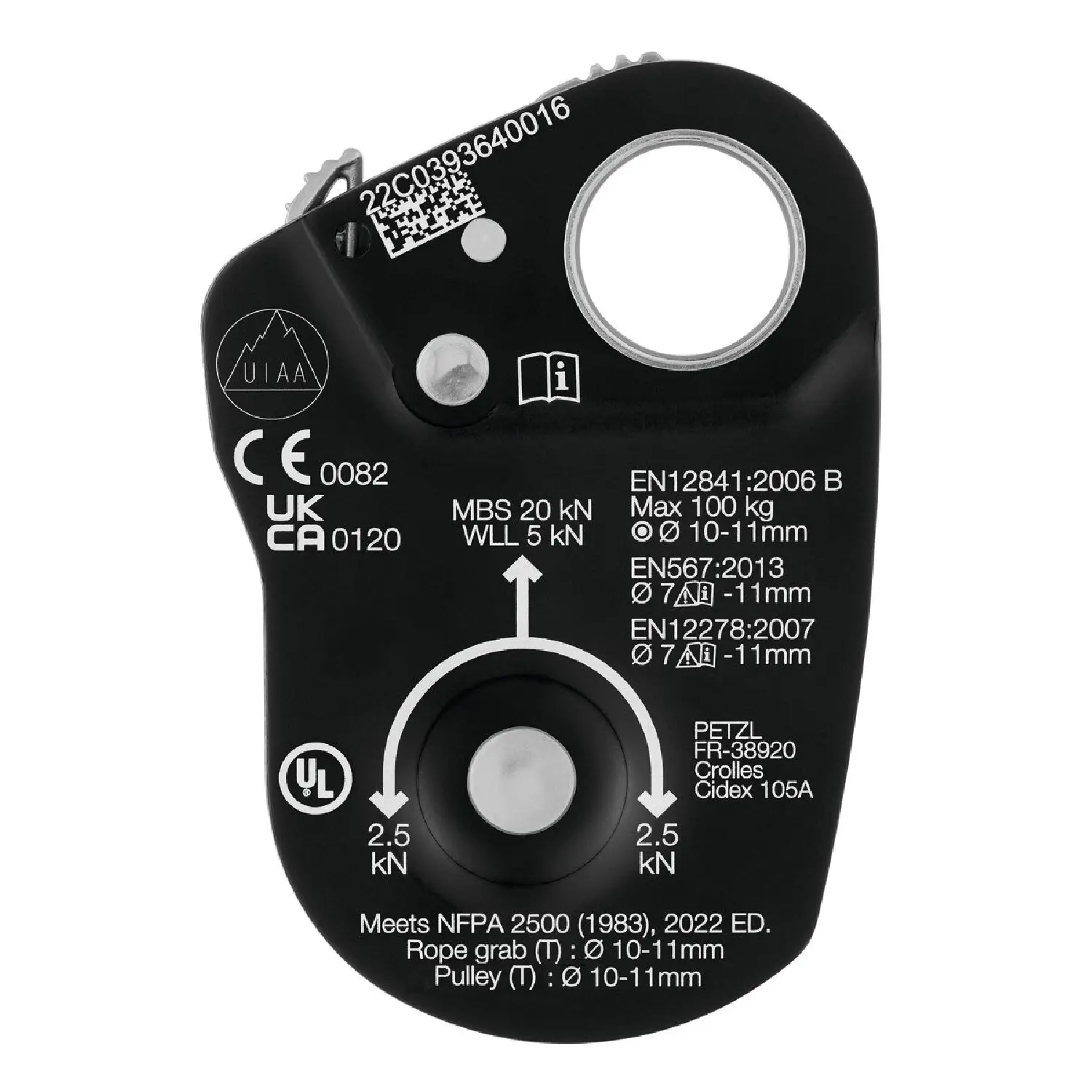

CE EN 567, CE EN 12278, CE EN 12841 Type B, NFPA 2500 Technical Use (Pulley and Rope Grab), XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11

Material(s)

Aluminum, stainless steel, nylon

Minimum rope diameter

7 mm

Maximum rope diameter

11 mm

Sheave type

Sealed ball bearings

Sheave diameter

32 mm

Breaking strength (pulley)

10 kN × 2 = 20 kN

Breaking strength (rope clamp)

4 kN

Efficiency

93%
