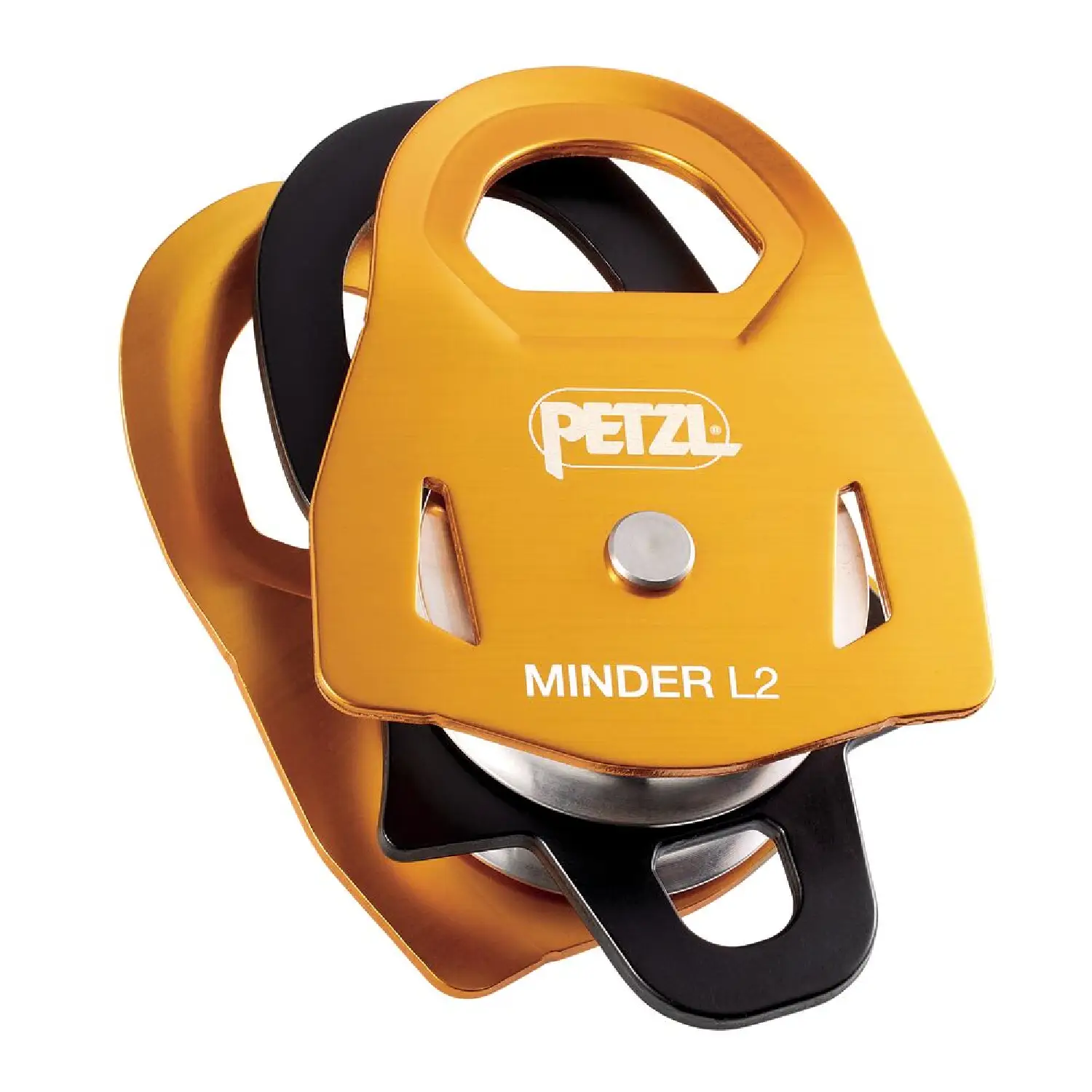

High-strength, very high efficiency double Prusik pulley

The MINDER L2 pulley is designed for rescue professionals. Its special moving side plates are intended for use with a Prusik friction hitch in progress-capture systems. Featuring two mounted sheaves and an auxiliary attachment point, it is ideal for creating complex haul systems. Built for heavy loads and intensive use, the large-diameter sheaves mounted on sealed ball bearings deliver exceptional efficiency.

Features

• Designed for progress-capture systems:
  • Moving side plates are designed for use with a Prusik friction hitch
• Built for heavy loads and intensive use:
  • Large-diameter sheaves mounted on sealed ball bearings provide very high efficiency
  • Two parallel-mounted sheaves and an auxiliary attachment point allow complex haul systems to be configured
  • Large attachment holes accommodate up to three carabiners for greater versatility and ease of use
  • Specific side plate design protects the rope path during operation

Specifications

Rope compatibility

6 to 13 mm

Sheave diameter

51 mm

Ball bearings

Yes

Efficiency

97%

Maximum working load

12 kN

Breaking strength

40 kN

Breaking strength of auxiliary attachment point

22 kN

Weight

436 g

Certification(s)

CE EN 12278, NFPA General Use, XF 494 General

Material(s)

Aluminum, stainless steel
