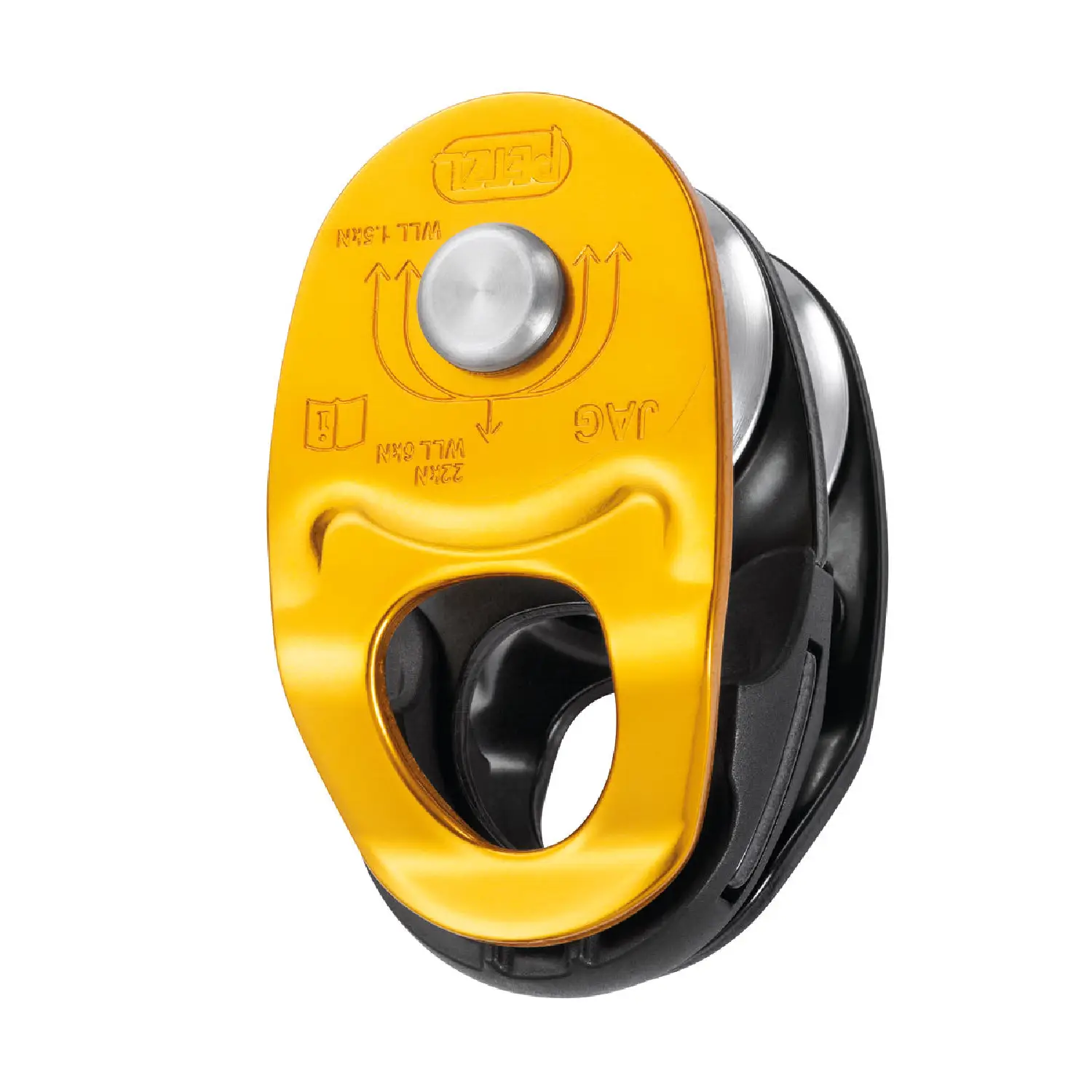

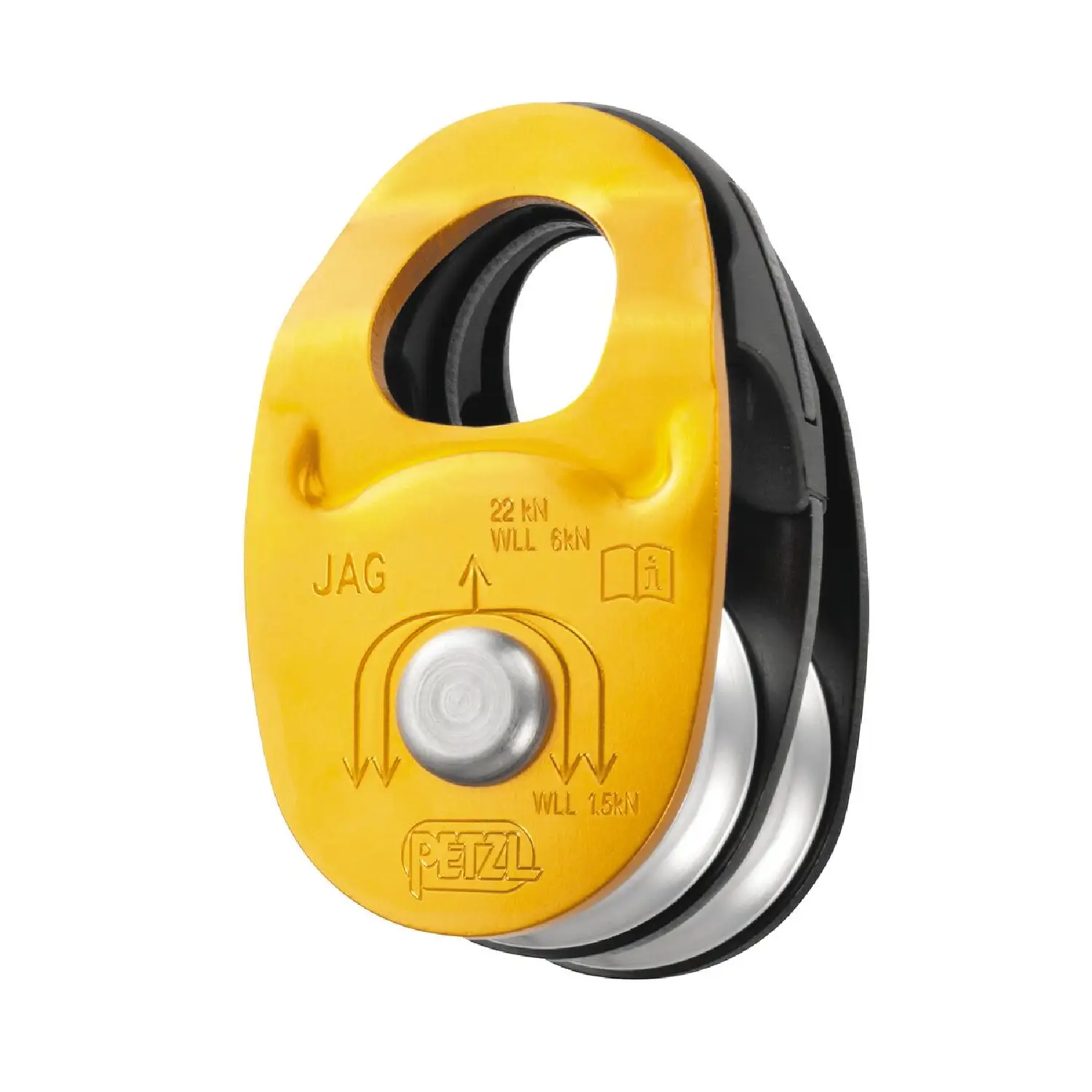

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to create a highly efficient 4:1 haul system. Sheaves mounted on sealed ball bearings deliver smooth operation and excellent mechanical efficiency.

Features

• Designed for use with the JAG TRAXION double progress capture pulley to create a 4:1 haul system
• Sheaves mounted on sealed ball bearings for outstanding efficiency and smooth rope travel

Specifications

Weight

120 g

Certification(s)

CE EN 12278, UKCA, NFPA 2500 Technical Use

Material(s)

Aluminum, nylon

Minimum rope diameter

8 mm

Maximum rope diameter

11 mm

Sheave type

Sealed ball bearings

Sheave diameter

25 mm

Maximum working load

2 × 1.5 kN × 2 = 6 kN

Breaking strength

2 × 4 kN × 2 = 16 kN

Efficiency

91%
