Probst Round Grab RG-20/85-SAFELOCK

The RG-20/85-SAFELOCK comes with an increased grip width of up to 870mm and increaed working load limit of 2500kg. The clamping force of the claws is maintained fully in all cases, even if the carrier is operated incorrectly.

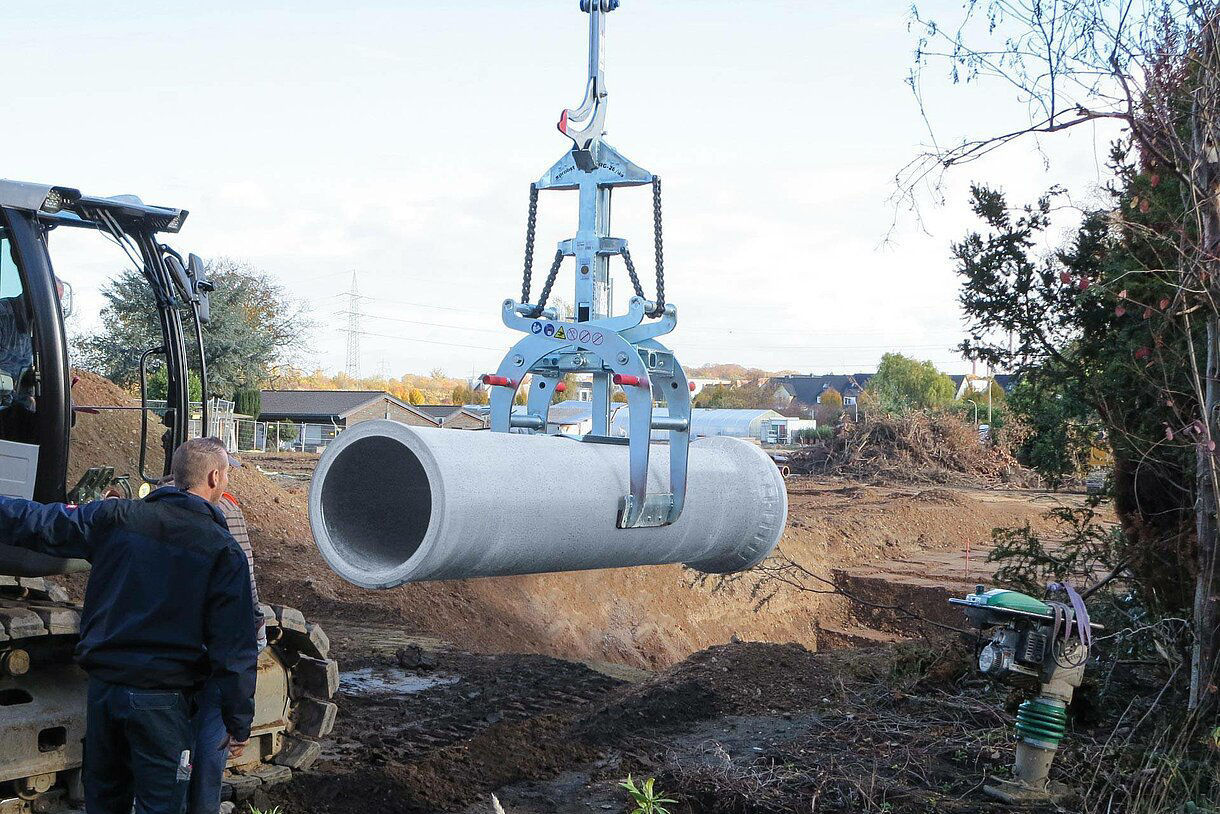

• Gripping and laying concrete pipes.
• Patented safety locking system: When lifting the product, the grab generates tension on the pipe, which is maintained even when the product is set down.
• One-man operation.
• With adjustable height supports, which can be adjusted with a scale using the external pipe diameter. This guarantees an optimum grab position.
• Slim design allows joint-sleeve pipes lying close together to be picked up onto the lorry loading area and used in very narrow trenches.
• With handles to guide the claw.
• The eye runs in a setting with 2 hanging positions. One is used for locked grabbing, the other for releasing the catch and for empty lifting. This allows operation with only one person.

Length of Gripper, mm(in): 420 (16½)

Gripping Range, mm(in): 200-870 (7¾ - 34¼")

Weight Dead Weight, kg(lbs): 175 (385)

Working Load limit WLL, kg(lbs): 2500 (5500)
