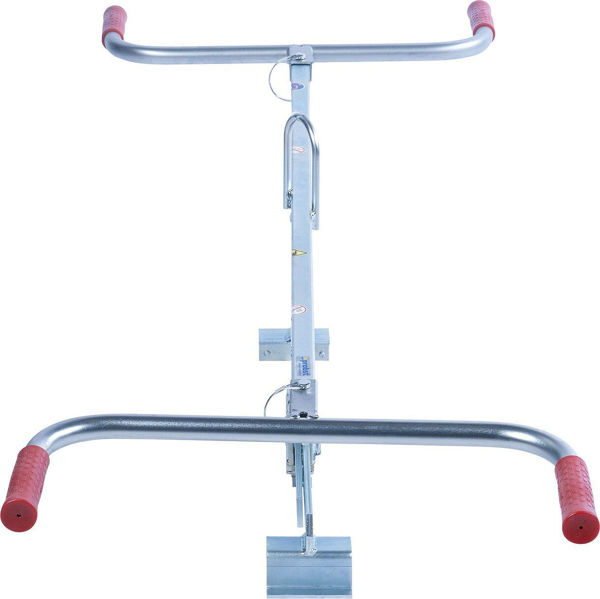

Probst Laying clamp VZ-I

The VZ-I is primarily intended for manual placement, lengthwise gripping for kerb stones, lightweight slabs etc.

• The one-sided angular supports which are placed on the kerb stone already in place enable an extremely narrow joint.
• Grips longitudinally so that it can be used in tightest spaces.
• No deflection of the plumb line.
• All models are equipped with a lifting eye.
• Durable surface protection by galvanizing.

Length of Gripper, mm: 100

Gripping Range, mm: 500-1045

Dead Weight, kg: 11

Inside height, mm: 40

Working Load Limit WLL, kg: 100

Data Sheet
