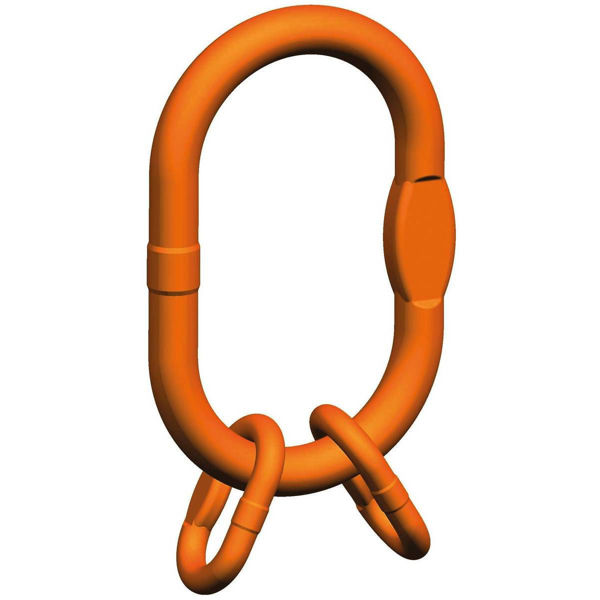

PEWAG 16mm winner Grade 10 Oversize Quad Link (2 Leg 16mm 4 Leg 7/8mm)

The VSAW 2 assembly comes with the same benefits as the VSAW 1 assembly and can also be used to create transition assemblies. This system is ideal for simplifying lifting and transport processes as it enables the creation of very short transition assemblies, thereby facilitating the switch from a large to a small crane hook.

With a load capacity of up to 40,000 kg, these master links may be used to create II-, III- and IV-leg chain slings in the assembled or welded system. The flattened section on the rings make them universally adaptable and the extra-large interior dimensions of the rings make them easy to use with single hooks according to DIN 15401 no. 50/100 or double hooks according to DIN 15402 no. 63/125.

The assemblies are manufactured according to EN 1677‑4 with the mechanical values of G10 and come with a CE-marking for certified quality. A full operating manual is provided.
