GT Viper Chain Block - VCB
- Matt black finish.
- Each hoist is made with high performance materials for extra durability.
- The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
- Zinc plated calibrated grade 80 load chain & zinc plated hand chain.
- Top and bottom hooks with heavy duty cast catches.
- Available in a variety of heights of lift.
- Also available in Black gloss finish for theatre rigging.
- For heights of lift above 12 mtrs please consult George Taylor & Co for technical advice and product guidance.
- NOT suitable for fleeting or cross hauling at angles.

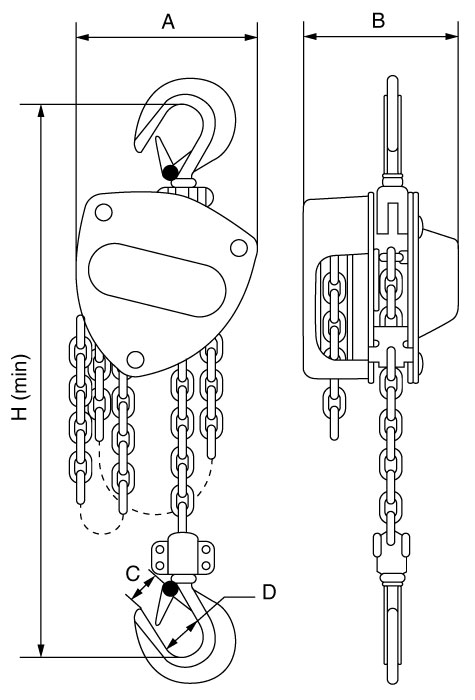

Dimensions:
| Code | Capacity | A | B | C | D | H | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3 mtr | 6 mtr | 10 mtr | 12 mtr | Carcase | (kgs) | (mm) | (mm) | (mm) | (mm) | (mm) |
| VCB0.5T3 | VCB0.5T6 | VCB0.5T10 | VCB0.5T12 | VCB0.5TC | 500 | 136 | 126.5 | 25.5 | 36 | 266 |
| VCB1T3 | VCB1T6 | VCB1T10 | VCB1T12 | VCB1TC | 1,000 | 156 | 143 | 28 | 40 | 324 |
| VCB1.5T3 | VCB1.5T6 | VCB1.5T10 | VCB1.5T12 | VCB1.5TC | 1,500 | 182 | 148 | 38 | 52 | 392 |
| VCB2T3 | VCB2T6 | VCB2T10 | VCB2T12 | VCB2TC | 2,000 | 198 | 152 | 38 | 52 | 407 |
| VCB3T3 | VCB3T6 | VCB3T10 | VCB3T12 | VCB3TC | 3,000 | 214 | 156 | 42 | 60 | 465 |
| VCB5T3 | VCB5T6 | VCB5T10 | VCB5T12 | VCB5TC | 5,000 | 266 | 181 | 50 | 68 | 636 |
| VCB10T3 | VCB10T6 | VCB10T10 | VCB10T12 | VCB10TC | 10,000 | 365 | 181 | 57 | 85 | 798 |
| VCB20T3 | VCB20T6 | VCB20T10 | VCB20T12 | VCB20TC | 20,000 | 630 | 192 | 84 | 106 | 890 |
| VCB30T3 | VCB30T6 | VCB30T10 | VCB30T12 | VCB30TC | 30,000 | 670 | 330 | 84 | 106 | 1000 |
Technical Data:
| Capacity | Effort req'd to lift max load | Load Chain Dia | Falls of Load Chain | Weight (3 mtr HOL) |
|---|---|---|---|---|
| (kgs) | (N) | (mm) | (kgs) | |
| 500 | 210 | 6 | 1 | 7 |
| 1,000 | 260 | 6 | 1 | 10.5 |
| 1,500 | 265 | 7.1 | 1 | 17 |
| 2,000 | 272 | 8 | 1 | 18 |
| 3,000 | 280 | 7.1 | 2 | 21 |
| 5,000 | 358 | 10 | 2 | 42 |
| 10,000 | 370 | 10 | 4 | 72.6 |
| 20,000 | 370 x 2 | 10 | 8 | 162 |
| 30,000 | 370 x 2 | 10 | 12 | 228 |
