LinkEx™ Spares & Accessories for Temporary Luminaire

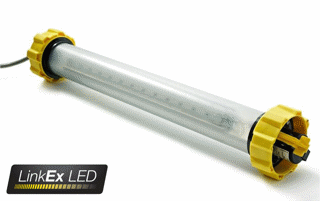

The LinkEx LED temporary luminaire is a high power LED Leadlamp for use in short-term lighting installations and maintanence tasks and is CE marked to the ATEX directive and IECEX certified for safe use in zones 1 and 2 potentially explosive gas and dust atmospheres, where a T3/T4 (Model dependant) temperature class permits.

Providing high quality ambient lighting, each unit utilises two arrays of high power LEDs offering brilliant white light output, high reliability, low maintenance 'fitted for life' light source. Power savings allowing longer cable runs and more lights powered from a single supply.

Luminaires are supplied in '180°' format (arrays side-by-side) to give effective unidirectional illumination or in '360°' format (arrays back-to-back), to special order, to give effective omni-directional 'all round' illumination.

The unit’s construction is lightweight, compact and highly robust, with impact resistant end caps and tube (with anti-static and light diffusing coatings) plus the high visibility shock absorbing bump rings are chemical resistant and minimise the risk of drop damage, all ideal for handling in demanding conditions. Units can be fitted with integral ATEX sockets allowing multiple lamps to be quickly and safely connected and positioned in a chain whilst energised. Available in two voltage input ranges: high voltage 85-264V AC for general applications and low voltage 18-50V AC/DC for use in confined space applications, such as metal tanks, with a higher risk of electric shock. The wide input voltage ranges maximise usability and safety for chains of multiple lights or for long cable runs, where supply voltage can drop.

The unique SOVI (Safe Optimal Voltage Indicator) monitoring system clearly indicates when the supply voltage is operating outside the specified limits; in the HV version an LED indicator will flash red, and in the LV version the light will pulse either dimmer (if above the specified limit) or pulse brighter (if below the specified limit).

Product Information Sheet

Features & Benefits:

• ATEX and IECEx certified for use in Zones 1 and 2 explosive gas and dust atmospheres
• High power, low maintenance LED light source 'Fitted for Life'
• High and low input voltage versions available
• Incorporates unique SOVI (Safe Operation Voltage Indicator) monitor
• Available with ATEX plugs and sockets to link in series/chain
• Compact and robust design
• Low power consumption
• Wide range of fixing and mounting accessories available
