Katos FA 60 001 00 Rescue Tripod

Confined Space Rescue Tripod

From the renowned manufacturer Kratos, constructed from top-quality, hard-wearing aluminium and steel, this Tripod is perfect for access and egress from confined spaces or any place with limited access. It has telescopic legs which enable the height to be easily adjusted from 1.15 m to 2.15m (7ft), and the wheelbase is 1.5m. Coming in at an easily transportable weight of 13kg, it has a maximum load capacity of 200kg, and the strength of the anchorage point is greater than 10Kn.

This Tripod comes supplied with its own Tripod bag for easy portability from place to place. The steel support shoes complete with rubber sole ensures the highest level of stability and safety for complete peace of mind.

This Tripod is a perfect and popular addition to any Confined Space and / or Rescue kit!

• Conforms to: EN795:1996 class B
• HS Code : 7610 90 10
• Material: head and legs : aluminium, plate and support shoes : steel
• Size: Adjustable height from 1,15m to 2,15m, wheelbase : from 0,9m to 1,3m
• Standard(s): N795 : 1996 class B, minimum breaking strength above 10kN
• Weight: 13,5kg



For acess in confined spaces

• Adjustable height : from 1.15 m to 2.15 m
• Wheelbase :1,5 m
• Weight :13 kg
• Maximum Load Capacity : 200 kg
• Conforms to : EN795:2012 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808
• HS Code : 7610 90 10



With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable

• Having two auxiliary eye bolts as attachment points.
• Aluminum alloy cast head, legs in aluminium.
• Steel support-shoes provided with rubber sole to increase friction and impart more stability.
• Strength of anchorage point greater than 10 kN
• Every Tripod is provided with inbuilt fixture for attaching our winch FA 60 003 00 (can be supplied without this fixture on special request).
• Every Tripod is provided with Tripod Bag
• Conforms to: EN 795 Class B



Kratos FA6000320 Work & Rescue Winch

20m Work & Rescue Winch to be used for raising or lowering of personnel or material into confined spaces.

Safe working load - 135kg

Maximum working load - 250kg

Length - 20m

Galvanised Cable Diameter - 4.8mm

Equipped with bolting fixture for robust fitting on to the tripod.

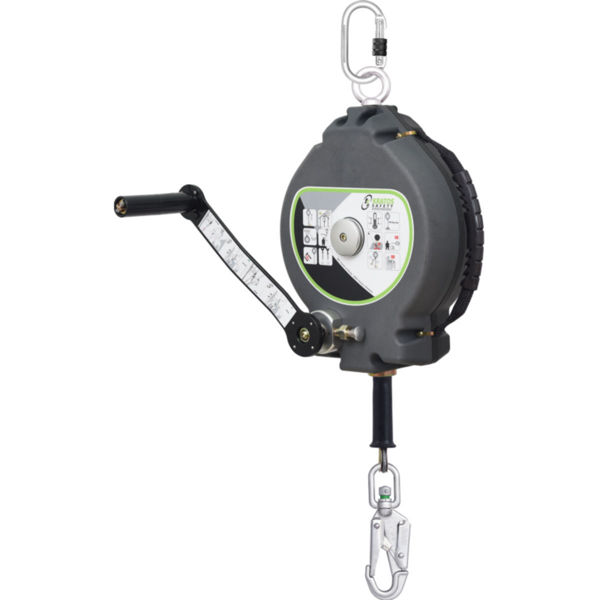

Fall Arrester With Integrated Rescue Winch

This range of fall arresters are designed to arrest a potential fall and allow the operator to manually lift or lower the casualty back to the entry point.

Available in both 20m and 30m the casing of the fall arrester is made of high impact strength polymer to prevent breakage, is equipped with Galvanised steel wire rope and can be adapted for use with the Kratos Tripod via the FA600102/3 bracket (Included in price)

Conforms to EN360:2002, EN1496:2017 Class B and ATEX Directive 2014/34/EU

Downloads:

Data Sheet - 7ft Tripod

Data Sheet - 10ft Tripod

Data Sheet - 20m Fall Arrest W/ Winch

Data Sheet - 30m Fall Arrest W/ Winch

Data Sheet - 20m Rescue and Work Winch

Data Sheet - 30m Rescue and Work Winch
