Kratos Configurable Easy Safeway Davit

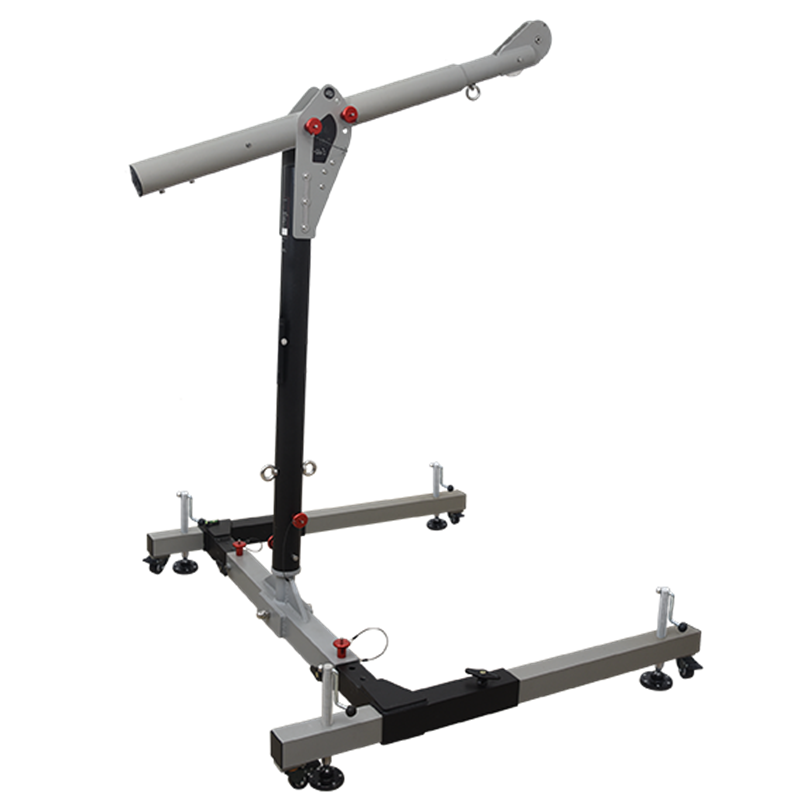

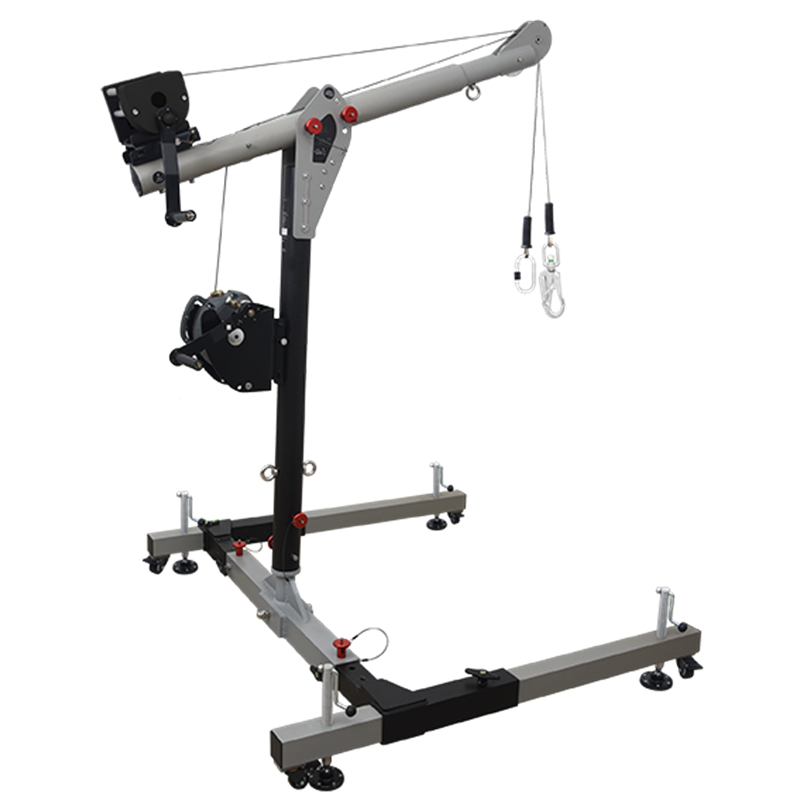

EasySafeWay 1, Mobile H-shaped base davit system (1370 mm high column)

Mobile H-shaped base davit system for access in confined spaces with a large opening.

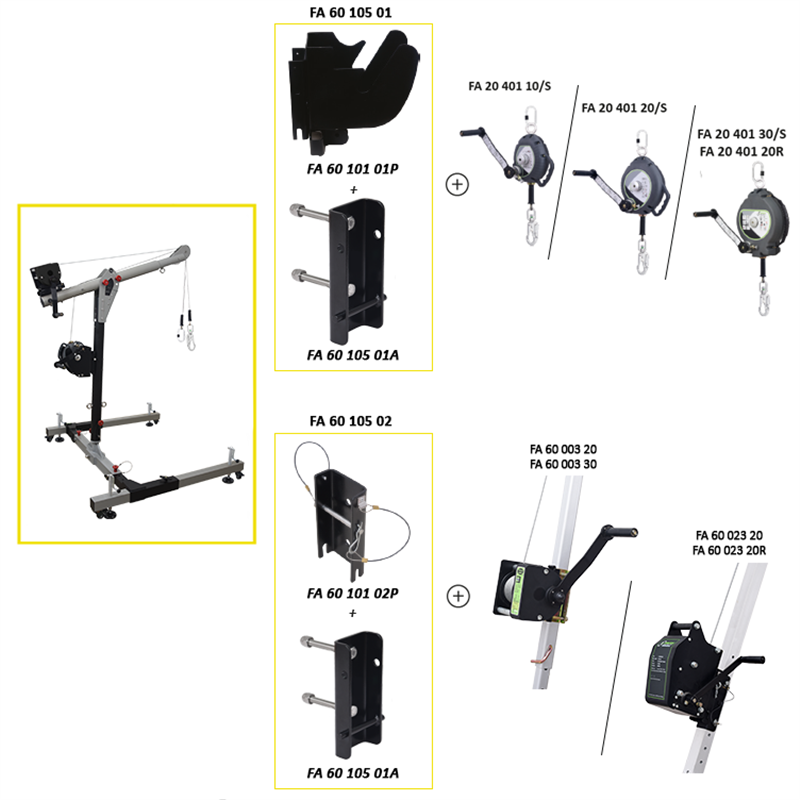

Composed of FA 60 105 03 (davit column, height 1370 mm), FA 60 105 05 (davit arm) and FA 60 105 06 (H-base).

H-base equipped with height adjustable feet and spirit levels for correct levelling of the davit system.

H-base: min. opening Ø 1100 mm / max. opening Ø 1510 mm.

Davit system has a 360° rotation, even when loaded.

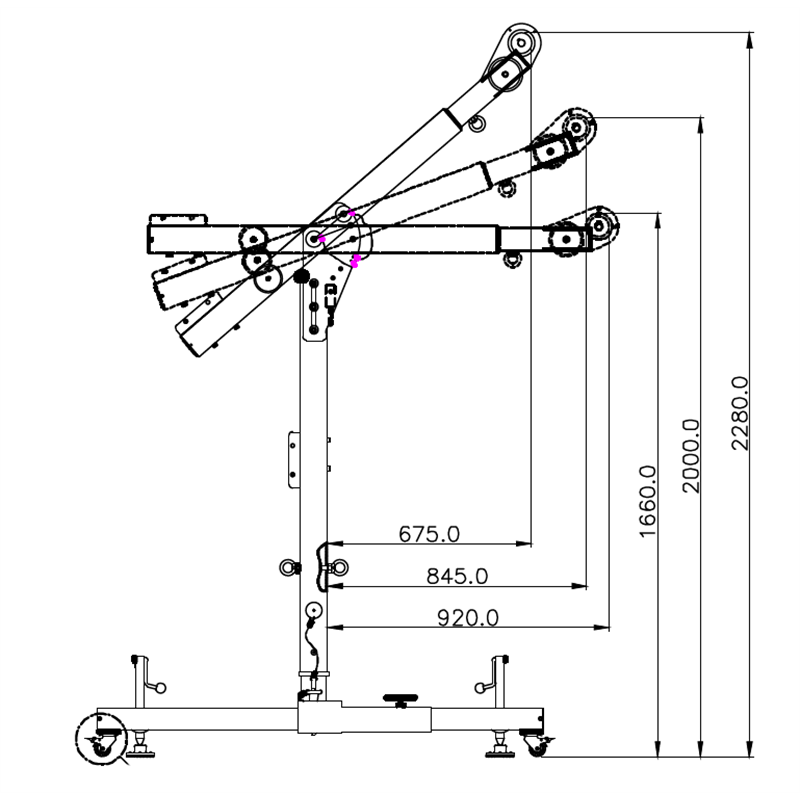

Davit arm is adjustable at 3 defined heights: 1.66 m / 2.0 m / 2.28 m.

Material: Aluminium.

Weight: 62 kg.

Maximum load capacity: 500 kg.

Compliance:

EN 795:2012 Type B.

Anchorage points resistance > 12 kN.

HS code: 76169990
