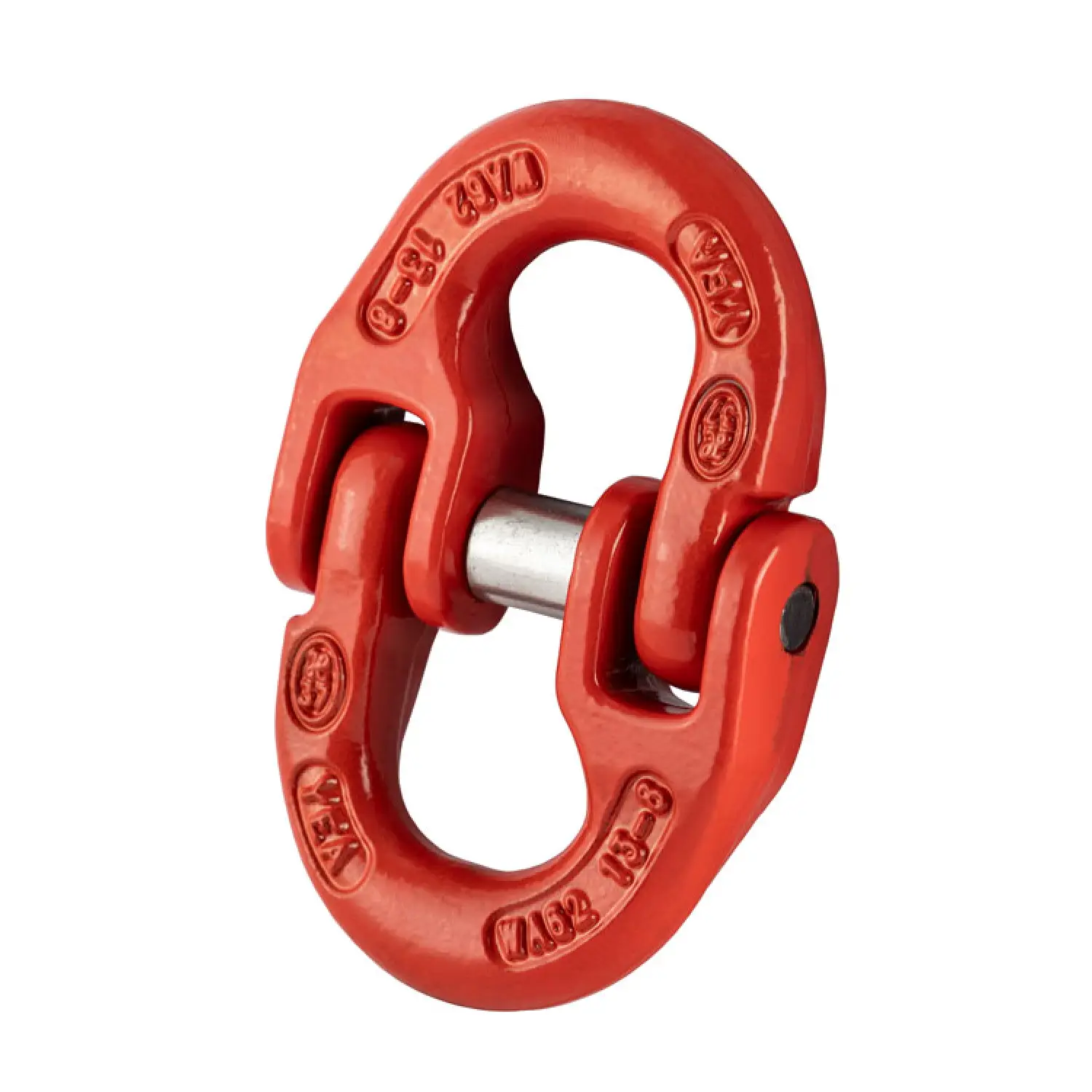

Kito® G8 Component Connector 8mm

Grade 8 alloy steel.

Red painted finish.

Conforms to BS EN 1677-1.

Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).

Marked with material grade, manufacturers ID, size, product ID mark and traceability code.

Designed for easy attaching of hooks and master links to other Grade 8 Chains and fittings.

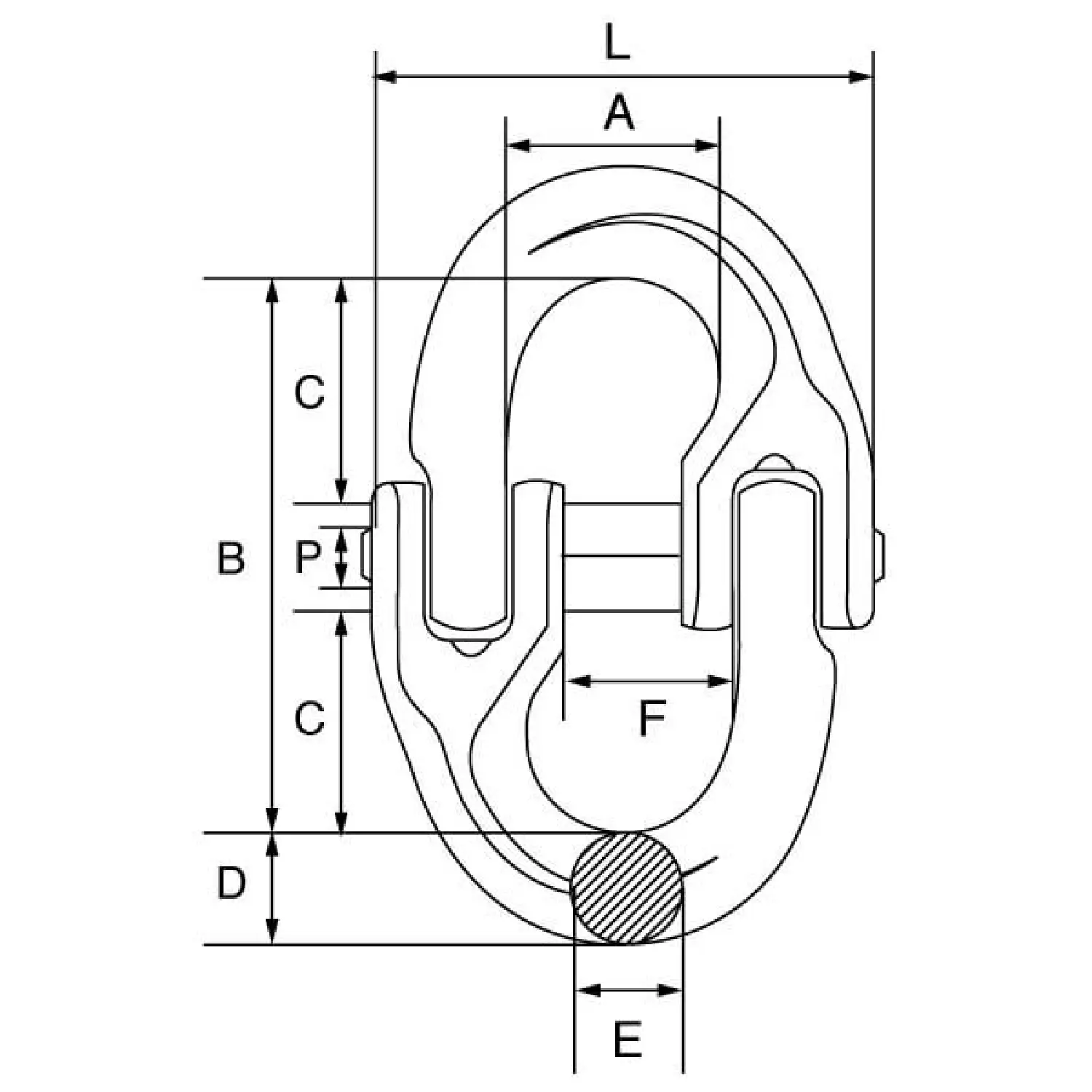

Product Code	Chain Dia	Part No.	A	B	C	D	E	F	P x L
	mm		mm	mm	mm	mm	mm	mm	mm
G8CC6	6	WA58	18	45	18	7.8	7.6	14	4.8 x 38.5
G8CC7	7	WA60	19	51	20	10	9	16	6 x 46.5
G8CC8	8	WA59	23	62	25	11.5	10	18	6.3 x 53
G8CC10	10	WA61	27	72	30	12.6	12.6	23	8 x 63.5
G8CC13	13	WA62	34	88	36	19	16.7	27	10 x 79
G8CC16	16	WA63	39	103	40	21	21	33	14 x 106
G8CC20	20	WA64	47	116	48	23	23	44	14 x 108
G8CC22	22	WA65	55	133	51	26.5	26.5	49	16 x 134
G8CC26	26	WA66	66	148	60	31.5	31.5	60	18 x 159
G8CC32	32	WA67	79	183	69	37	37	67	25 x 195

Chain Dia	W.L.L.	M.P.F.	M.B.F.	Weight
mm	t	kN	kN	kgs
6	1.12	28.3	45.2	0.07
7	1.5	38.5	61.6	0.1
8	2	50.3	80.4	0.25
10	3.15	78.5	126	0.35
13	5.3	133	212	0.68
16	8	201	322	1.1
20	12.5	314	503	1.7
22	15	380	608	2.2
26	21.2	531	849	4.2
32	31.5	804	1,290	7.19
