Pulley-carabiner that facilitates installation on anchors and devices

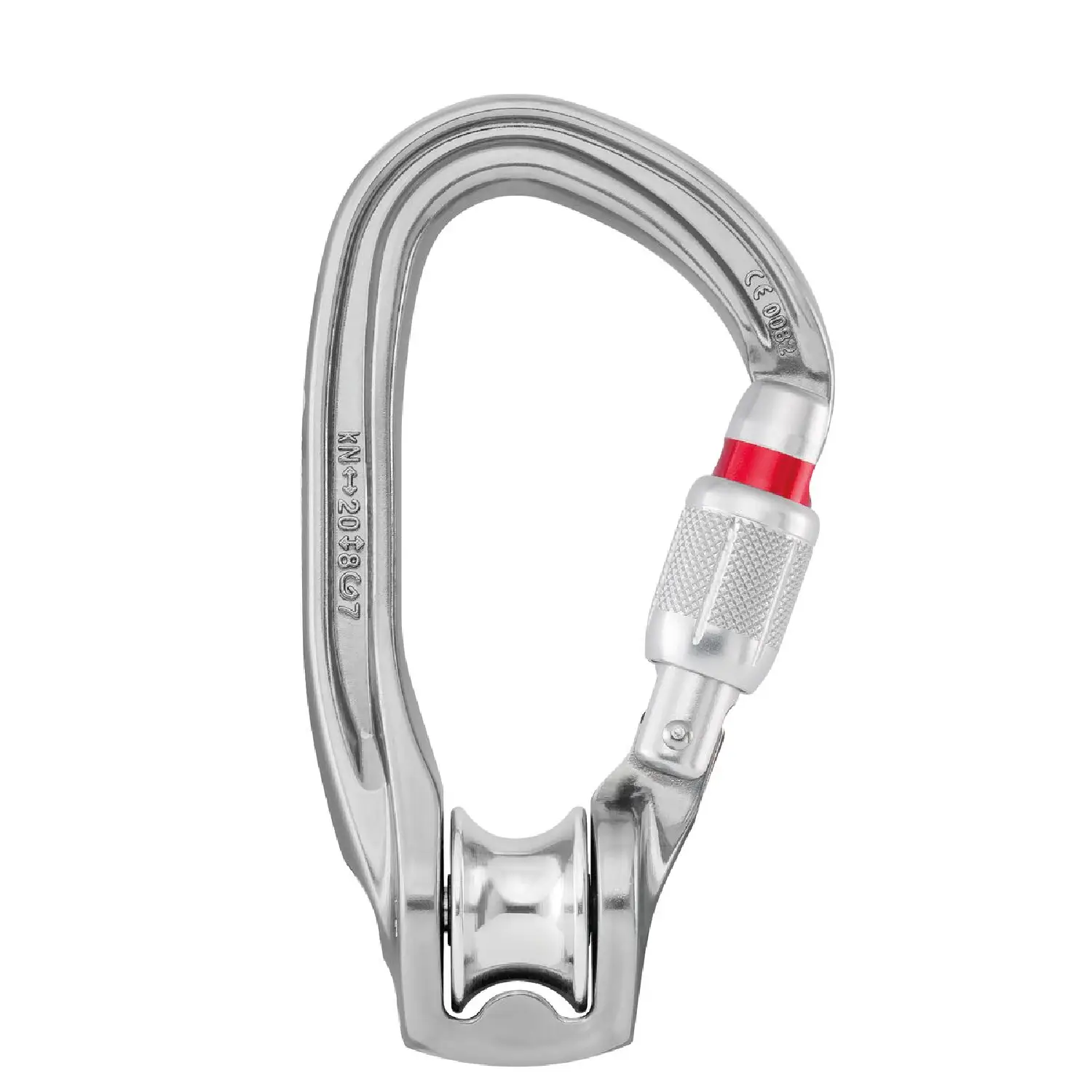

The ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side, making it easy to install on anchors and devices. It combines a high-efficiency pulley with a versatile carabiner and is available with either an automatic TRIACT-LOCK locking system or a manual SCREW-LOCK locking system to suit different applications.

Features

• Easier handling:
  • Sheave mounted on sealed ball bearings provides excellent efficiency
  • Gate opening on the non-pulley side allows quick installation on anchors and devices
  • Keylock system helps prevent accidental snagging during clipping and unclipping
• Lightweight and durable:
  • H-shaped cross-section provides an excellent strength-to-weight ratio
  • Profile helps protect product markings from abrasion
• Available with two locking systems:
  • TRIACT-LOCK: Automatic locking with triple-action gate opening
  • SCREW-LOCK: Manual screw-lock with a red indicator band that provides a visual warning when unlocked

Specifications

Material(s)

Aluminum

Rope compatibility

7 to 13 mm

Sheave diameter

18 mm

Maximum working load

2 × 2 = 4 kN

Efficiency

85%

Major axis strength

20 kN

Minor axis strength

8 kN

Open gate strength

7 kN
