Low stretch kernmantle rope with two sewn terminations for use with an ASAP or ASAP LOCK mobile fall arrester

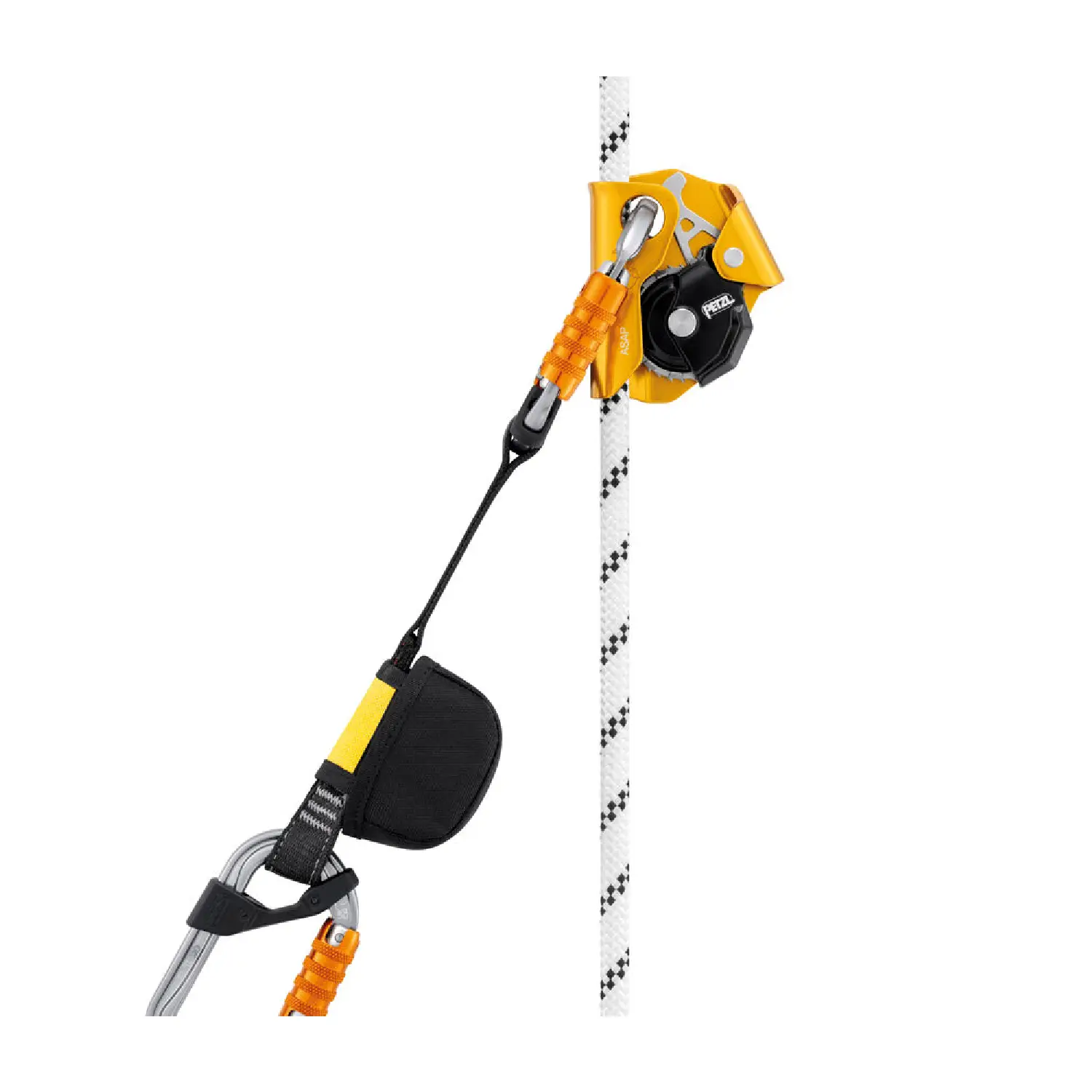

The AXIS 11 mm low stretch kernmantle rope with two sewn terminations is designed for use with an ASAP or ASAP LOCK mobile fall arrester and an ASAP’SORBER or ASAP’SORBER AXESS energy absorber. It has two sewn terminations with a protective sheath, one of which helps keep the connector in position, allowing it to meet the requirements of the EN 353-2 European standard for fall protection. The standard diameter provides a good grip for easier handling. EverFlex technology provides great flexibility and consistent performance over time. The rope is available in six lengths.

Features

• Rope has two sewn terminations, meeting the requirements of the EN 353-2 and GBT 24537 standards when used with an ASAP or ASAP LOCK mobile fall arrester and an ASAP’SORBER or ASAP’SORBER AXESS energy absorber
• The standard diameter provides a good grip for easier handling
• Consistent performance over time:
  • Construction with nylon core and specially-braided polyester sheath
  • EverFlex technology provides great flexibility over time and under a variety of conditions (water, dust, mud), allowing it to maintain excellent handling and optimal performance with devices

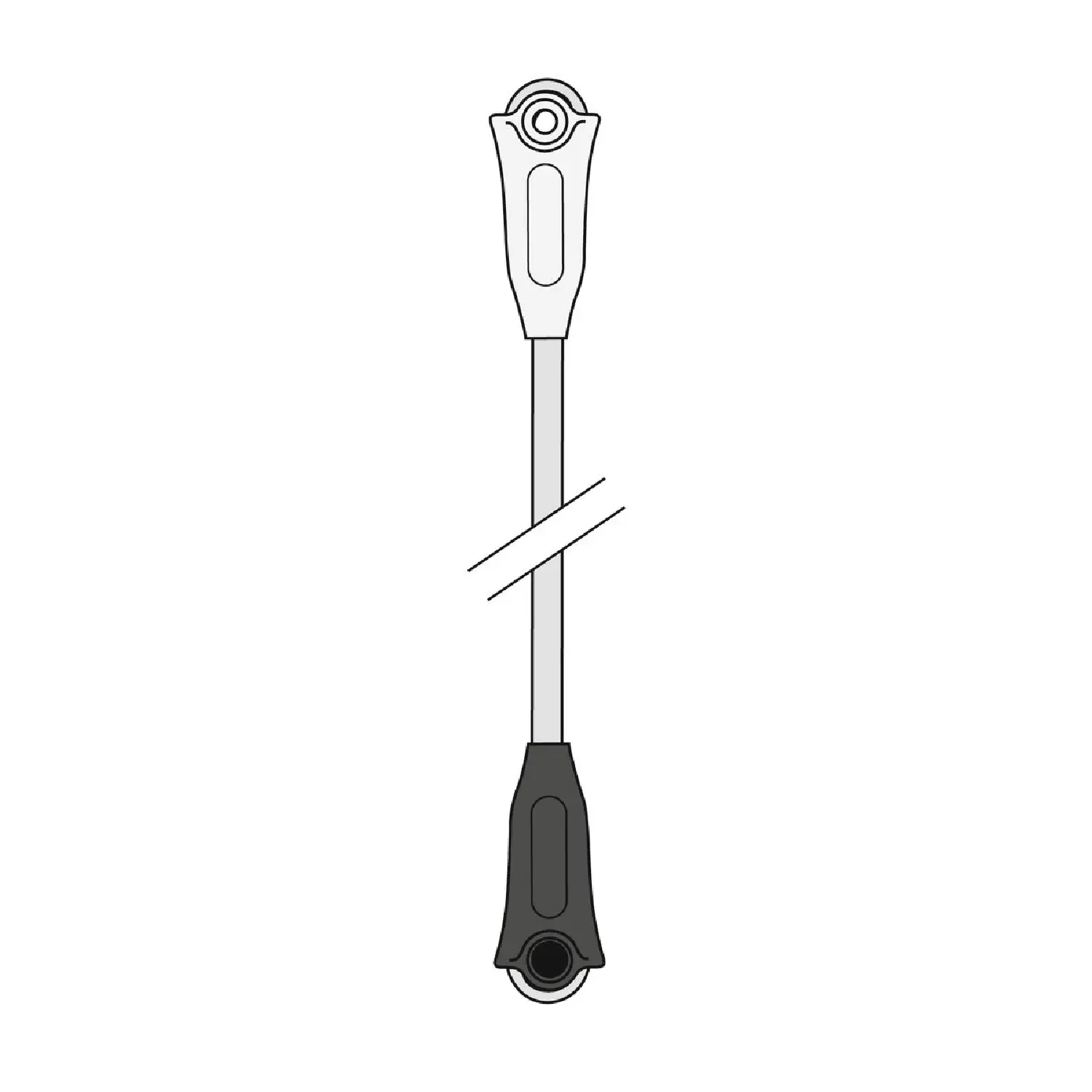

• Rope has two sewn terminations with protective sheath:

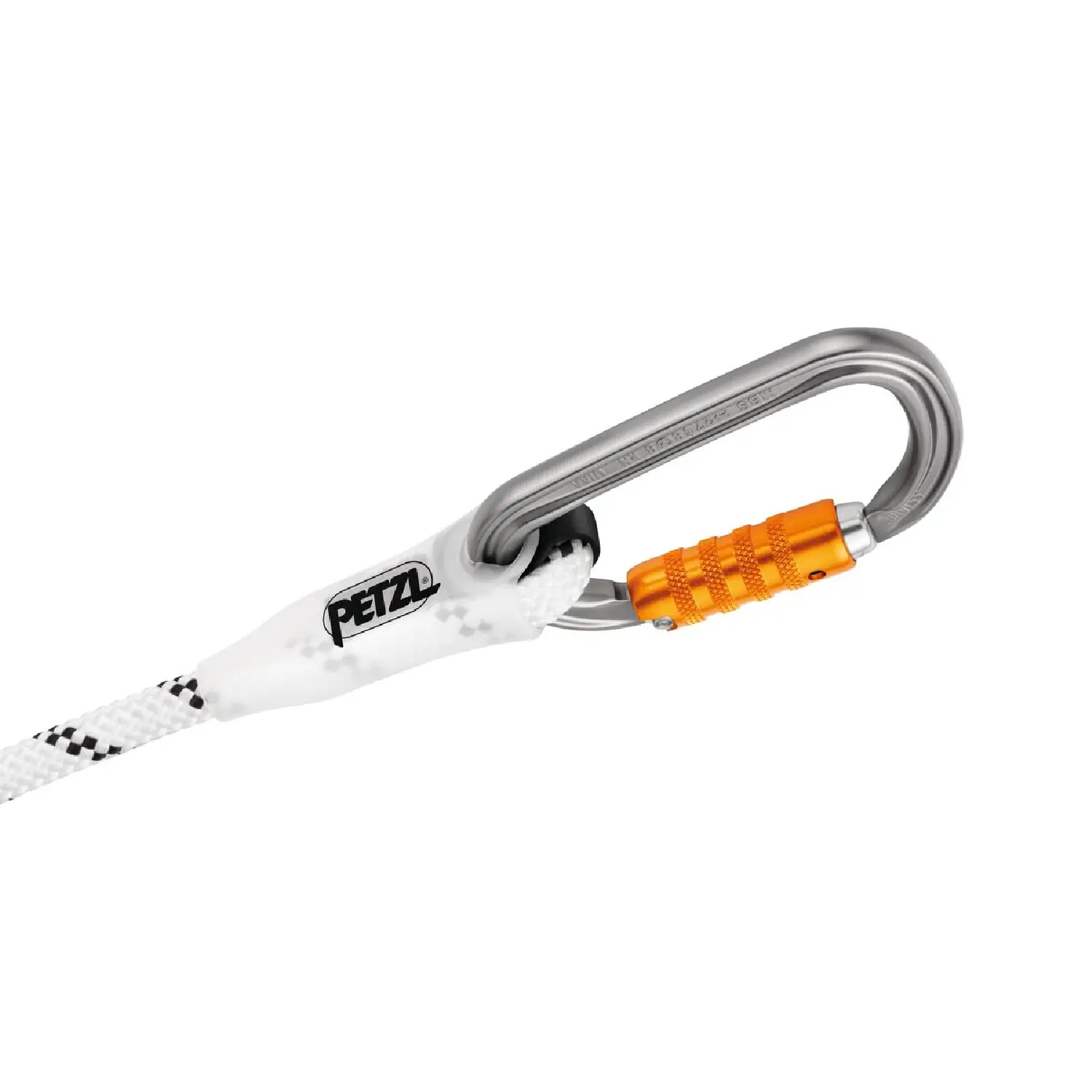

  • One termination allows you to attach a carabiner and helps keep it properly oriented
  • One termination serves as an end-stop (no possible attachment)
• Space for individual identification markings on the plastic sheath to track the equipment throughout its lifespan
• Standard lengths: 10, 20, 30, 40, 50, and 60 m

Specifications

Diameter

11 mm

Material(s)

Polyester, nylon

Certification(s)

CE EN 1891 type A, meets the requirements of the EN 353-2 and GB 24537 standards

Weight per meter

82 g

Strength with sewn termination

22 kN

Construction

32 carrier

Percentage of sheath

41 %

Static elongation

3 %
