Low stretch kernmantle rope with sewn termination for use with ASAP and ASAP LOCK mobile fall arresters

The AXIS 11 mm low stretch kernmantle rope with sewn termination is designed for use with an ASAP or ASAP LOCK mobile fall arrester and an ASAP’SORBER or ASAP’SORBER AXESS energy absorber. It has a sewn termination with a protective sheath that helps keep the connector in position, meeting the requirements of the EN 12841 European standard for fall protection. The standard diameter provides a good grip for easier handling. EverFlex technology provides great flexibility and consistent performance over time. The rope is available in six lengths.

Features

• Rope with a sewn termination, meeting the requirements of the EN 12841 standard when used with an ASAP or ASAP LOCK mobile fall arrester and an ASAP’SORBER or ASAP’SORBER AXESS energy absorber
• The standard diameter provides a good grip for easier handling
• Consistent performance over time:
  • Construction with nylon core and specially-braided polyester sheath
  • EverFlex technology provides great flexibility over time and under a variety of conditions (water, dust, mud), allowing it to maintain excellent handling and optimal performance with devices

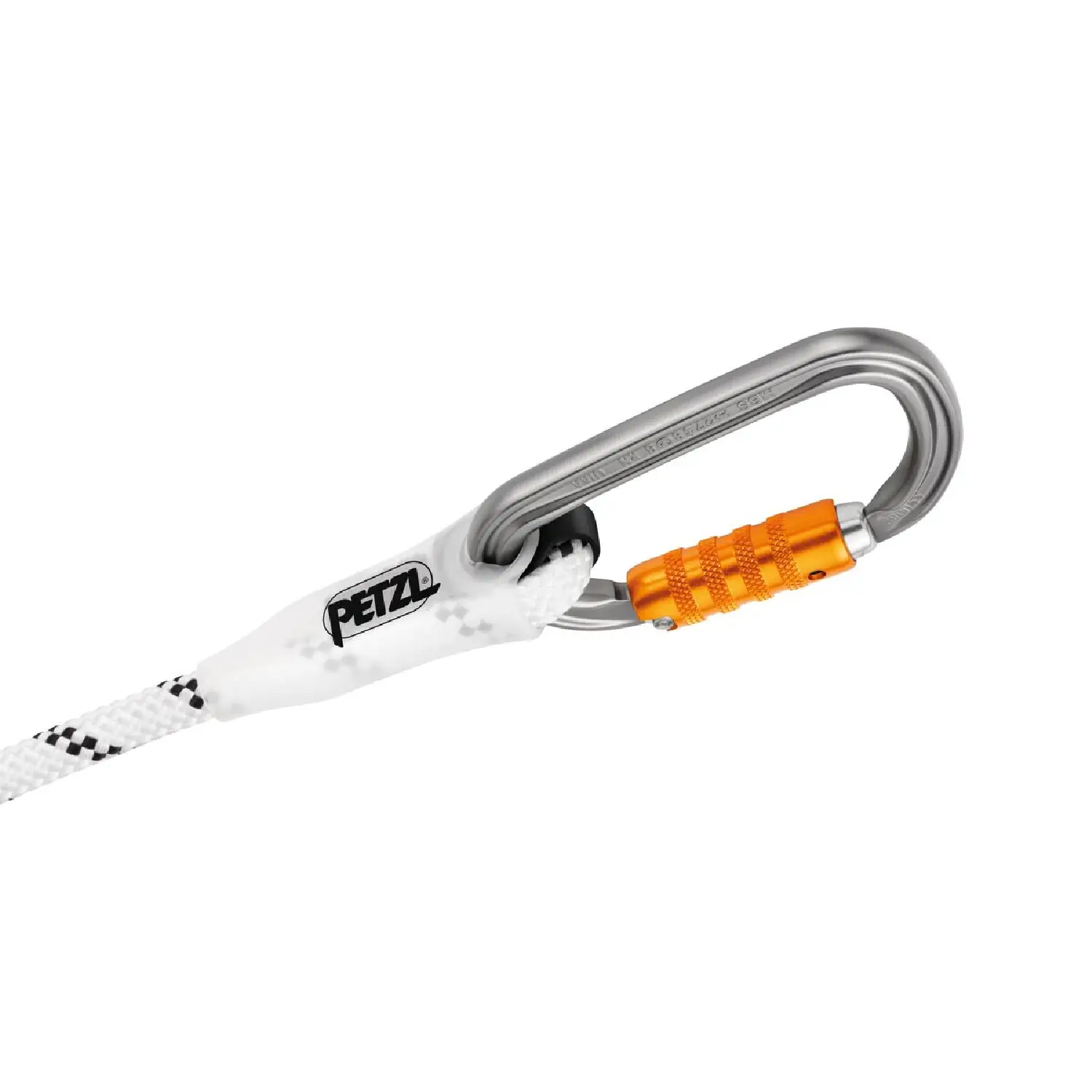

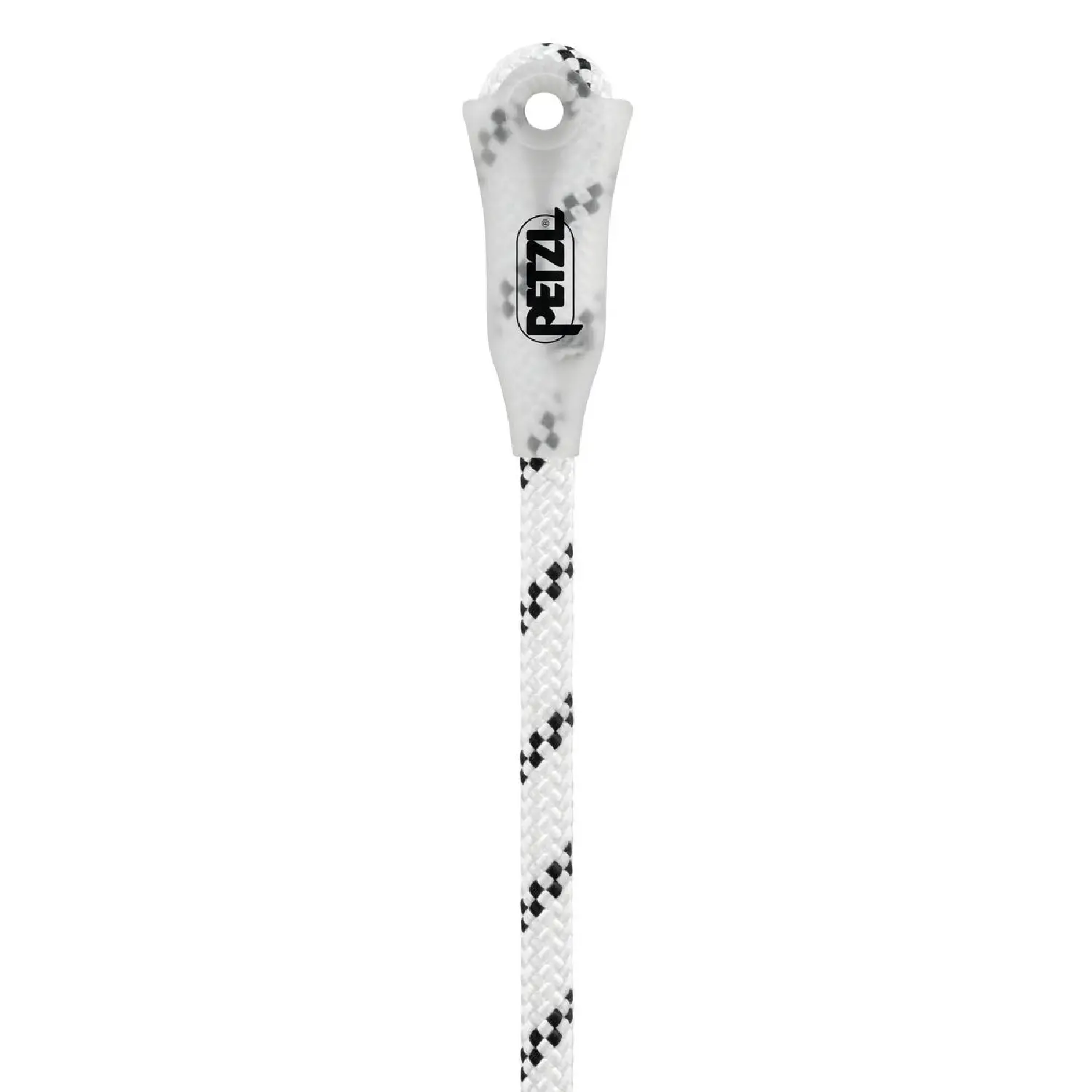

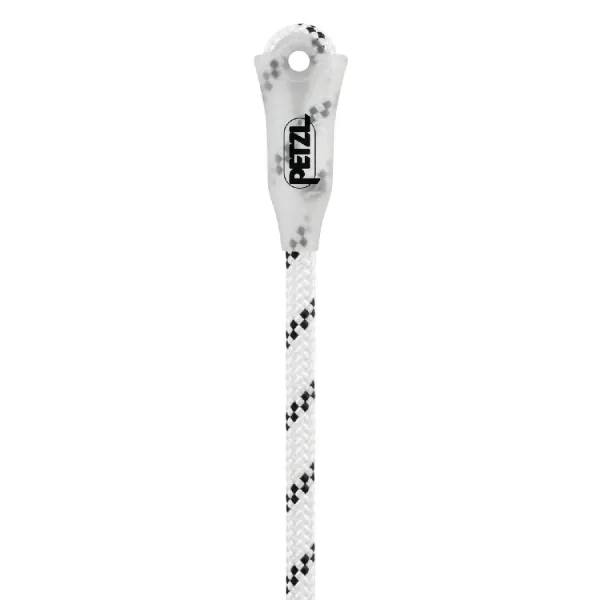

• Rope with a sewn termination that has a protective sheath to help keep the connector in position and facilitate handling
• Space for individual identification markings on the plastic sheath to track the equipment throughout its lifespan
• Standard lengths: 10, 20, 30, 40, 50, and 60 m

Specifications

Diameter

11 mm

Material(s)

Polyester, nylon

Certification(s)

CE EN 1891 type A, NFPA 2500 Technical Use

Weight per meter

82 g

Strength with sewn termination

22 kN

Impact force (factor 0,3)

5,2 kN

Number of factor 1 falls

12

Construction

32 carrier

Percentage of sheath

41 %

Static elongation

3 %
