GT Cartec Grade 10 Double Base Weld-on Lifting Ring

• Grade 10 high resistant alloy steel.
• Black painted finish.
• Minimum breaking load is 4 times the W.L.L.
• The entire perimeter of the base must be welded except for the water discharge area.
• Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.

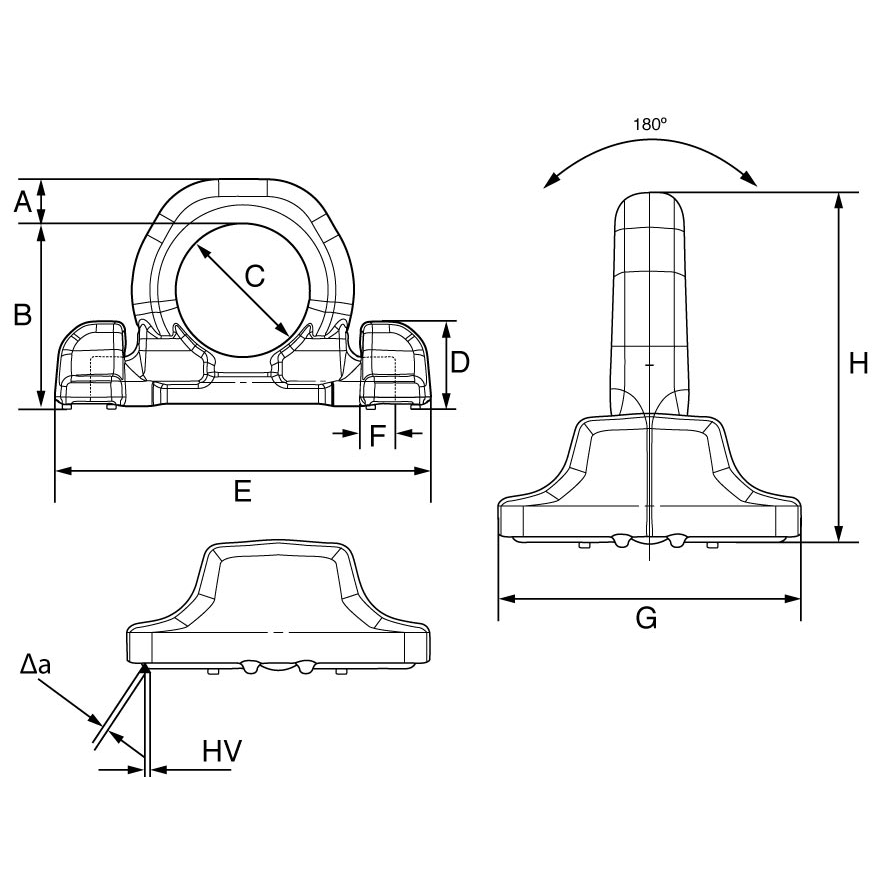

• Full CAD support available upon request.

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.
