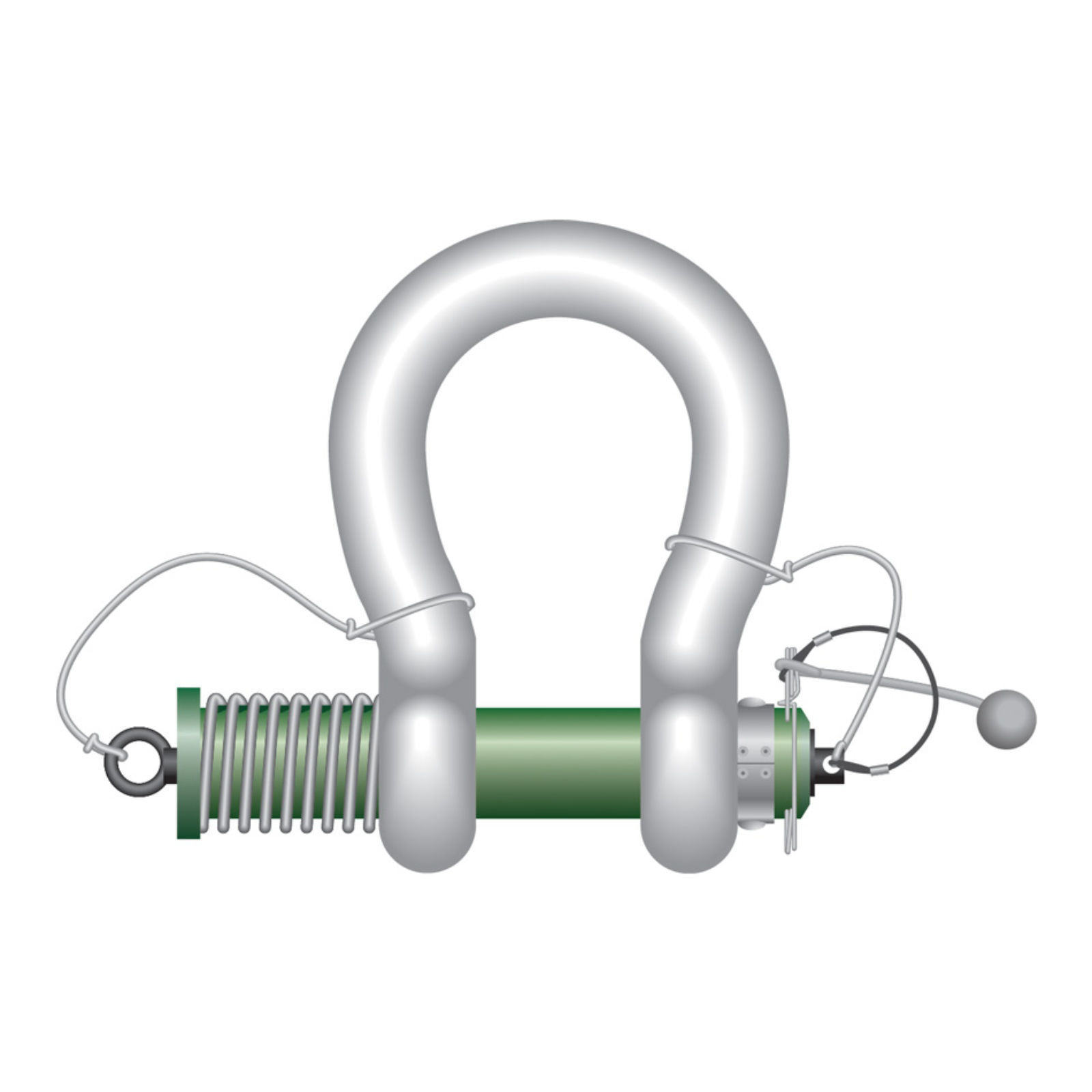

Green Pin ROV Spring Release Polar Shackle - GPROV5367

  • Model: P-5367.
  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • White painted body & green painted pin.
  • Temperature range -40°C up to +200°C.
  • Supplied with an EC declaration of conformity.
  • Supplied with a 3.1 material certificate upon request.
  • For in-line use only.

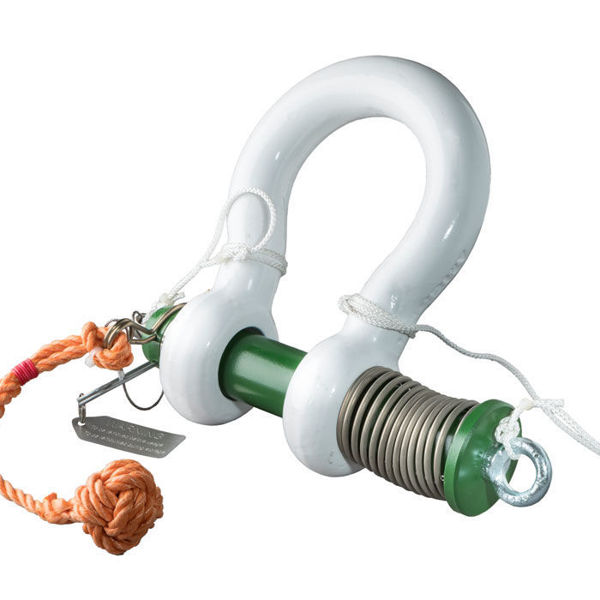

  • This shackle is assembled with wire rope slings and monkey’s fist for size starting from WLL 42.5 up to and including 150t.
  • A special compression tool (sold separately) is required to assemble the shackle.
  • Full CAD support available upon request.




Data Sheet

Products specifications
Attribute nameAttribute value
Shackle TypeROV Release

Green Pin ROV Spring Release Polar Shackle - GPROV5367

WLL: 12t - 150t
Various Models Available
Manufacturers: Green Pin , GT Lifting
SKU: GPROV536712
*
Call for pricing
