Pre-assembled fall-arrest system

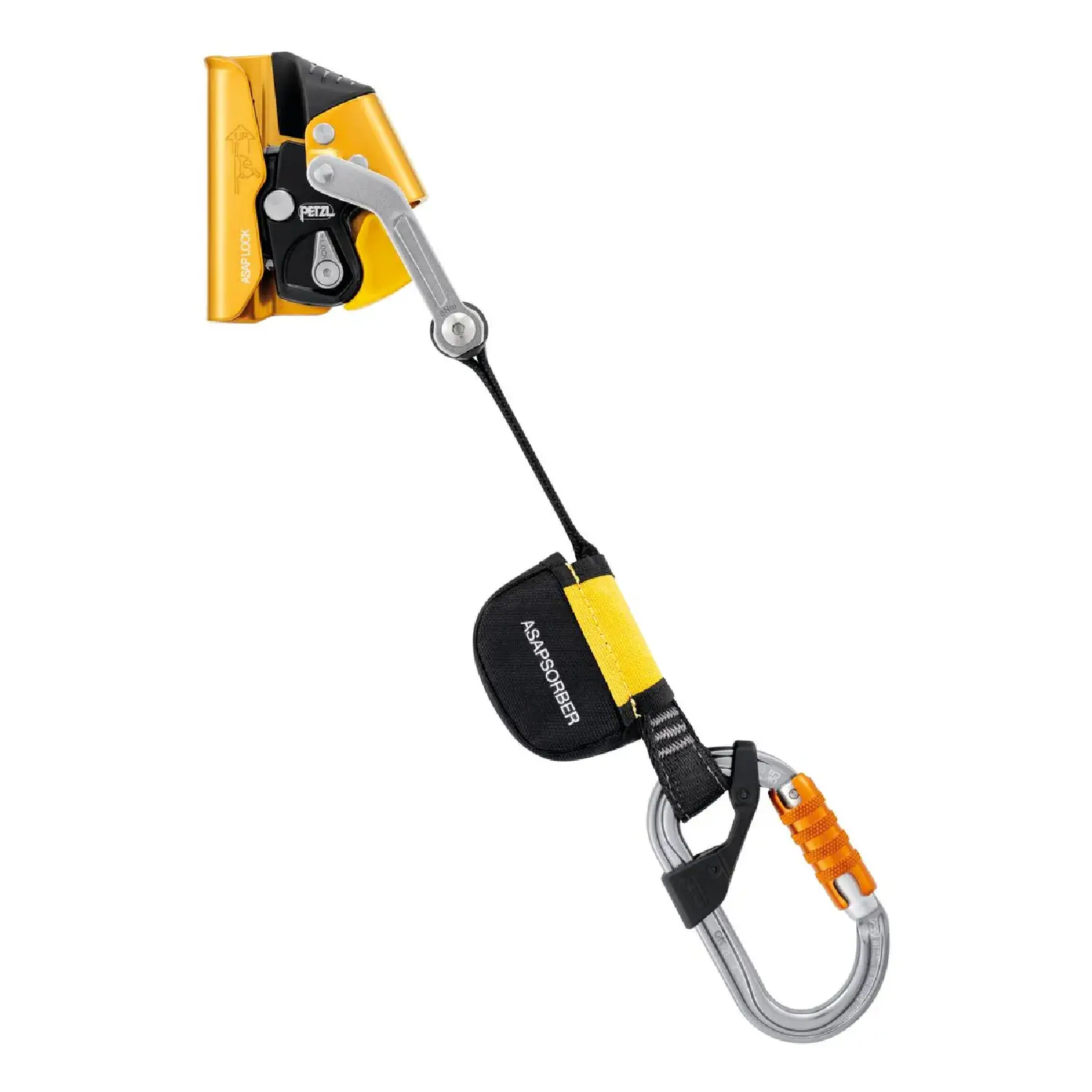

The ASAP LOCK KIT fall-arrest kit is a pre-assembled and ready-to-use system. It includes an ASAP LOCK mobile fall arrester, an energy absorber, and an OK TRIACT-LOCK carabiner with CAPTIV positioning bar. This kit is available in three versions, depending on your needs and applications.

Features

• Pre-assembled kit includes ASAP LOCK mobile fall arrester, energy absorber, and an OK TRIACT-LOCK carabiner with CAPTIV positioning bar:
  • With ASAP’SORBER energy absorber 20 (B071CC00)
  • With ASAP’SORBER energy absorber 40 (B071CC01)
  • With ASAP’SORBER AXESS energy absorber (B071CC02)
• Mobile fall arrester for rope:
  • Stops falls and uncontrolled descents that exceed two meters per second
  • Blocks on the rope even if grabbed during the fall
  • Works on vertical, horizontal, or angled rope
  • Compatible with ropes 10 to 13 mm in diameter
  • Toothed wheel is effective on a variety of rope conditions
• Compact and easy to use:
  • Easy to install and remove at any point on the rope
  • Moves up or down the rope without any manual operation
  • Safety catches make the device easy to install and remove from the rope
  • Connection arm makes the system drop resistant when passing intermediate anchors
  • Integrated LOCK function allows the user to immobilize the device to reduce the potential fall distance and keeps the rope from being blown upwards in very windy conditions
• Use:
  • Up to 140 kg, single person use with the ASAP’SORBER 20 or 40
  • Up to 250 kg, two-person use in rescue scenarios with the ASAP’SORBER AXESS

Specifications

Rope compatibility

10 to 13 mm

Certification(s)

CE EN 12841 type A, CE EN 353-2, GB/T 24537, XF 494 : FZL-Z-Q10/13

CE EN 12841 type A

when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40 energy absorber, and an EN 1891 type A 10 to 13 mm rope

CE EN 353-2

when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40 energy absorber, an AXIS 11 mm rope with two sewn terminations

Cleaning

• Wash and rinse in clean water using pure soap
• +30°C / 86°F (max.)

Drying

• Dry in a well-ventilated place away from direct sources of heat or sunlight.
• +30°C / 86°F (max.)
