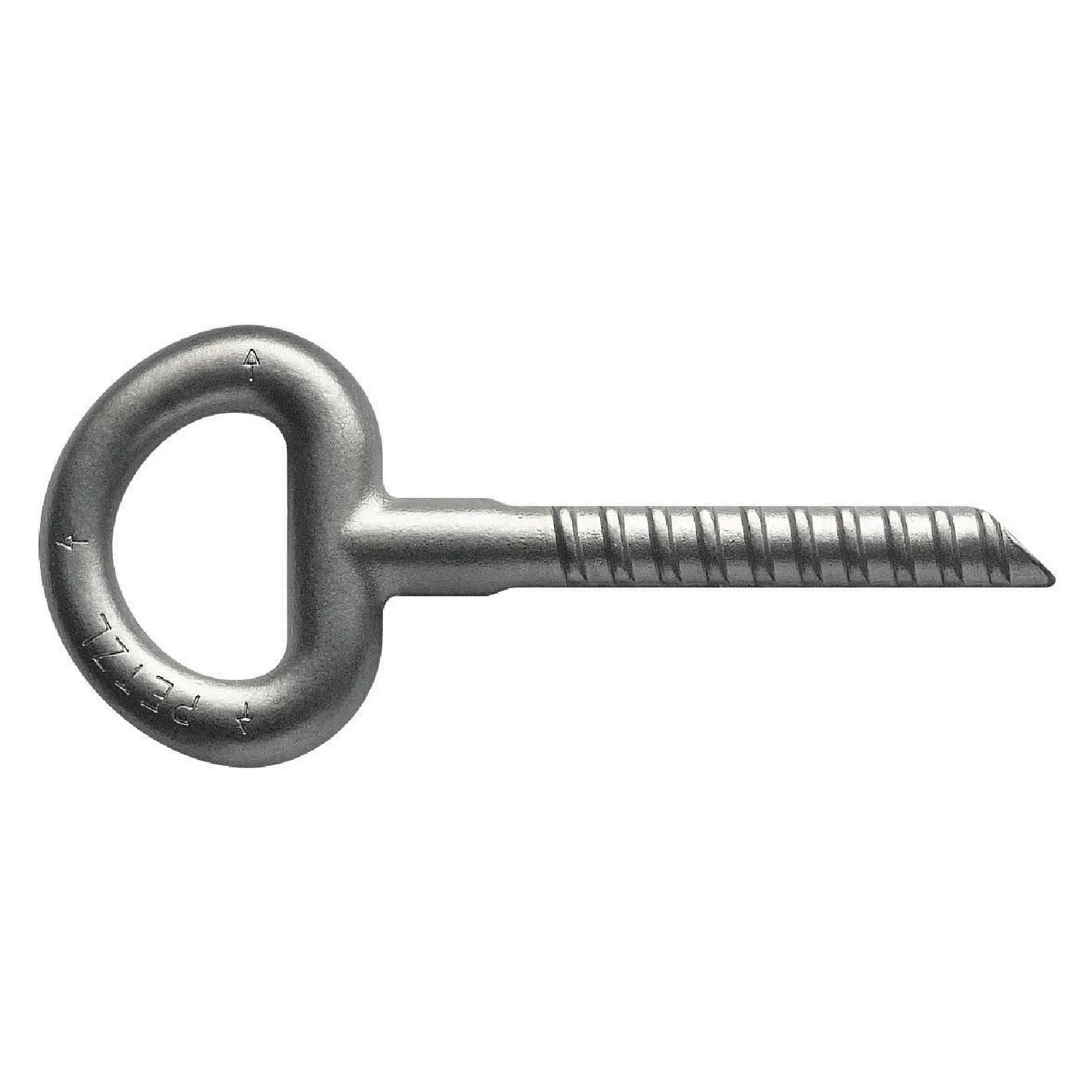

Contact UsBAT’INOX Forged Stainless steel glue in bolt
- 14 x 100 mm
Note: Items sold in packs are not marked for individual resale.
Specifications
- Material(s): forged stainless steel
- Certification(s): EN 959
References
| References | G102AA00 |
|---|---|
| Diameter | 14 mm |
| Weight | 250 g |
| Granite, gneiss higher than 80 MPa: preliminary testing recommended | |
| Hard limestone higher than 80 MPa: preliminary testing recommended Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended | |
| Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing recommended | |
| Very high quality concrete (civil engineering structure) higher than 50 MPa: preliminary testing recommended | |
| Medium quality concrete from 25 to 50 MPa: preliminary testing recommended | |
| Length | 10 cm |
| Drilling depth | 10-10,5 cm |
| Drilling diameter | 16 mm |
| Type of installation | G103AA00 glue (or other glues approved by Petzl) |
| Suggested drying time | 40 min - 10 h |
| Shear strength in 50 MPa concrete | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN |
| Times are given for G103AA00 glue (times may vary depending on the glue used and on the external environment) | |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
