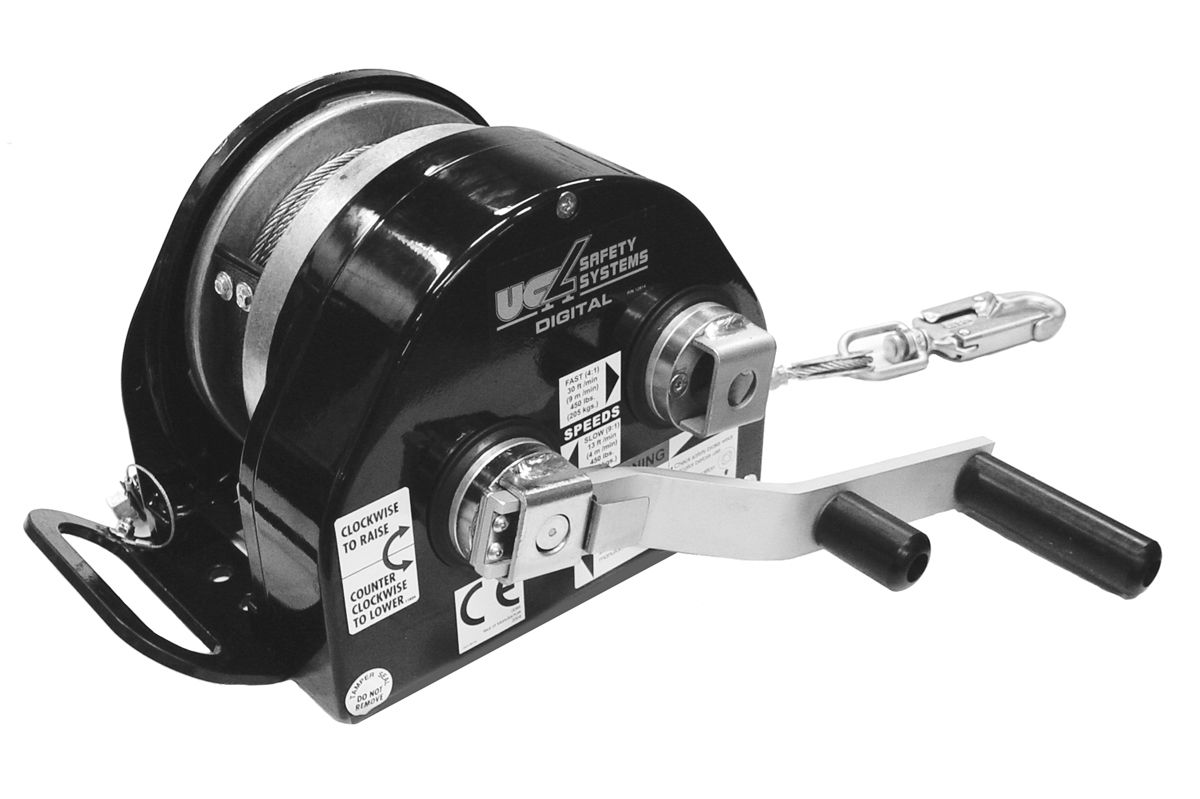

DBI-SALA Advanced 8518582 Digital 200 Series Winch

Product Highlights:

  • Manually operated winch
  • 190 ft. (58 m) of 3/16" (5mm) galvanized steel wire rope
  • 9:1 and 4:1 gear ratio mechanical advantage
  • Quick mount bracket
  • Built-in digital usage indicator
  • Triple redundant braking system
  • Brake wear indicator
  • Durable corrosion resistant construction
  • Sealed bearings at all contact points
  • Integral carrying handle
  • Swivelling snap hook with impact indicator
  • Power drive option available
  • Order tripod or davit rescue system separately

Overview:

When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most.

Our mechanical systems are legendary, have decades of proven field service and have operated flawlessly in some of the most demanding job sites around the globe. The mechanical device is one of the most critical parts of the rescue system. It provides the means to retrieve an incapacitated worker to safety. Lifeline type and length are just a few of the options. In some situations, a secondary or back-up system is required.

Features:

  • Manually operated winch
    Easy operation is performed by rotating the handle to raise or lower personnel or materials.
  • 190 ft. (58 m) of 3/16" (5mm) galvanized steel wire rope
    Abrasion resistant and extremely durable lifeline construction provides added field longevity.
  • 9:1 and 4:1 gear ratio mechanical advantage
    Offers 4 m (13 ft./min.) or 9 m (30 ft./min.) winching speed with no power source required to help facilitate fast and efficient rescues.
  • Quick mount bracket
    Permanently attached bracket mates with the support structure bracket and offers simple detent pin attachment for quick and easy set-up.
  • Built-in digital usage indicator
    Exclusive system counts the revolutions of the drum to determine service intervals for added safety and peace of mind.
  • Triple redundant braking system
    Includes 3 independent working pawls and a centrifugal back-up brake for added safety.
  • Brake wear indicator
    System constantly monitors the condition of the braking mechanism for complete safety and security.
  • Durable corrosion resistant construction
    Superior materials including anodised aluminium, stainless and zinc plated steel protect the unit’s components for extended longevity.
  • Sealed bearings at all contact points
    Provides long lasting smooth operation for fast, safe and efficient rescues.
  • Integral carrying handle
    Allows user to easily transport the device from one location to another.
  • Swivelling snap hook with impact indicator
    Provides secure connection to load, prevents lifeline from twisting and offers a visual indicator if the device has been impact loaded.
  • Power drive option available
    Drive hub and overload device can be attached to 9:1 drive for use with electric or pneumatic drill for added ease of use.
  • Order tripod or davit rescue system separately
    Various support structure styles and configurations are available to suit most site requirements for added peace of mind.

 Specifications:


Capacity(204 kg) 450 lbs.
BrandDBI-SALA®
Sub BrandAdvanced™
Size58 m
Install TypePortable
Lifeline TypeGalvanised Cable
iSafe EquippedNo
Lifeline Length58 m
Winch/SRL HousingCast Aluminium, Powder Coated
Model8518582
Physical Dimensions22.86 cm x 27.43 cm x 27.94 cm (9.00 in. x 10.80 in. x 11.00 in.)
Physical Weight48.00 lbs (21.8kg)
Product StylesWinch
Product TypesMechanical System
StandardsCE 2006/42/EC


Data Sheet




DBI-SALA Advanced 8518582 Digital 200 Series Winch

Winch with 190 ft. (58 m) of 3/16" (5mm) galvanized steel wire rope and swivel snap hook
Manufacturer: 3M
SKU: 8518582
