Crosby Radiolink Plus Wireless Loadcell

Please note that this product does not come with a SW-HHP Handheld Display, if this is what you require please see here.

Radiolink plus is designed to be rigged with Crosby standard shackles - DNV-GL type approved wireless tension load cell capable of weighing and dynamic load monitoring in capacities from 1t to 500t - from stock with an ATEX and IECEx version available for hazardous areas, zones 0, 1 & 2.

Two versions of the RLP are available;

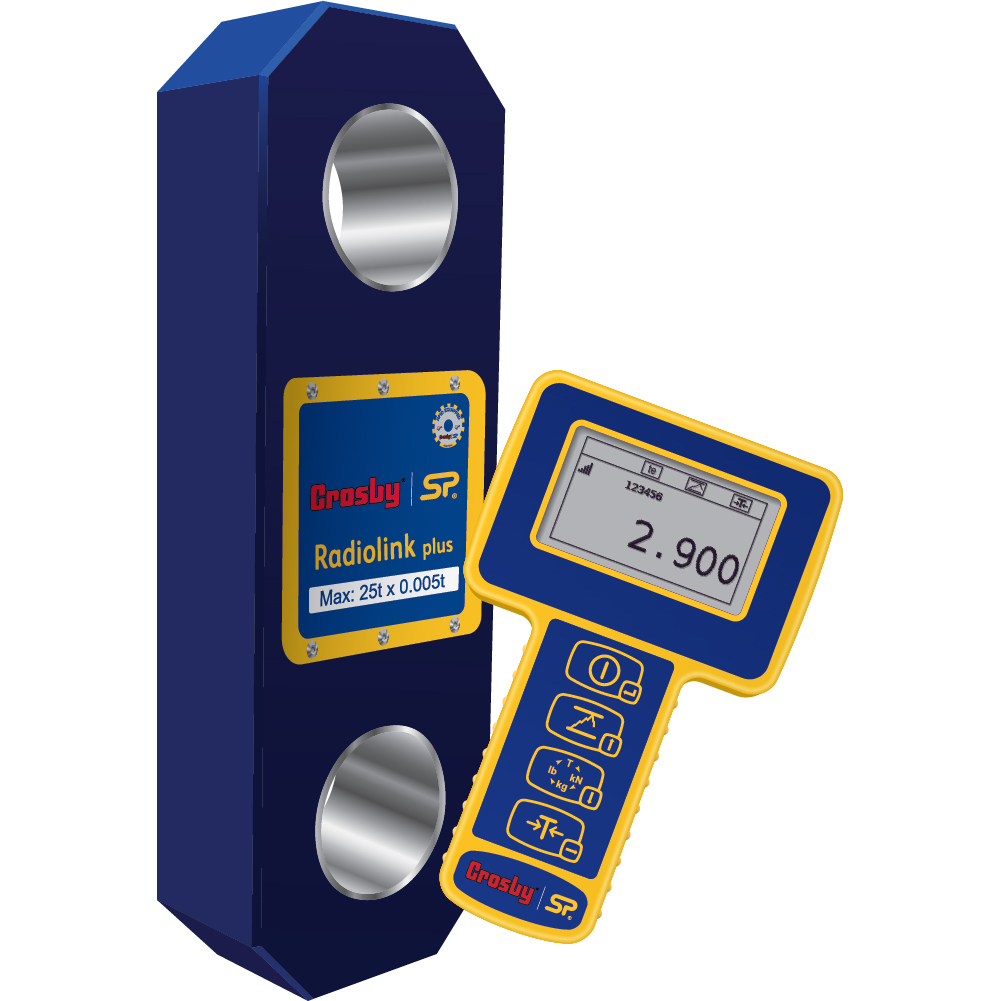

• Long range 2.4GHz version providing industry leading wireless range of 1000m or 3280ft to SP's SW-HHP handheld or software options

• Bluetooth output and can be connected to any smart phone running the free HHP app on iOS or Android, at ranges up to 100m or 328ft

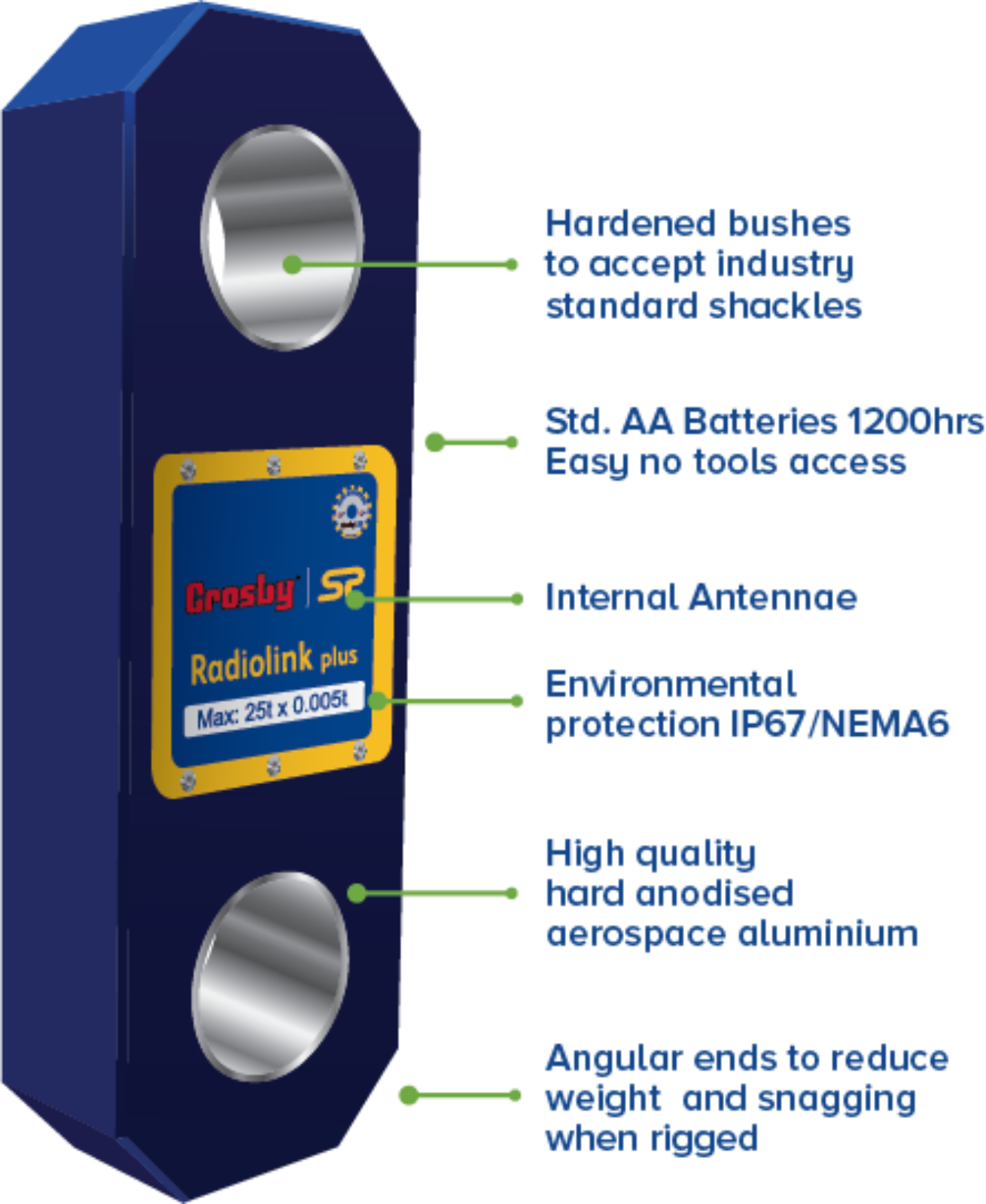

Constructed from high-quality aerospace grade aluminium, the RLP features an advanced internal design structure. This design provides the product with an unrivalled strength to weight ratio. The use of a seperate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the batery cover plate missing. All these features makes it an industry-leading dynamometer, suitable for use in the harshest of environments.

The versatile RLP is able to provide an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz, making it ideal for dynamic force measurement.

Decades of development into this product include many stand out features such as SP's unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. The RLP tension load cell can also be used in combination with Crosby/Straightpoint 'INSIGHT' high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 126 Crosby/Straightpoint wireless load cells.

A full array of wireless accessories are also available including wireless score board, overload alarm and base station with analogue (4-20mA) or 2 relay or RS485 ASCII outputs.

Downloads:

Data Sheet

Products also available in this range include;

Crosby Radiolink Plus Wireless Loadcell

2789018, 2789022, 2789027, 2789016, 2789021, 2789024, 2789026, 2789028, 2789001, 2789017, 2789019, 2789020, 2789023, 2789025
