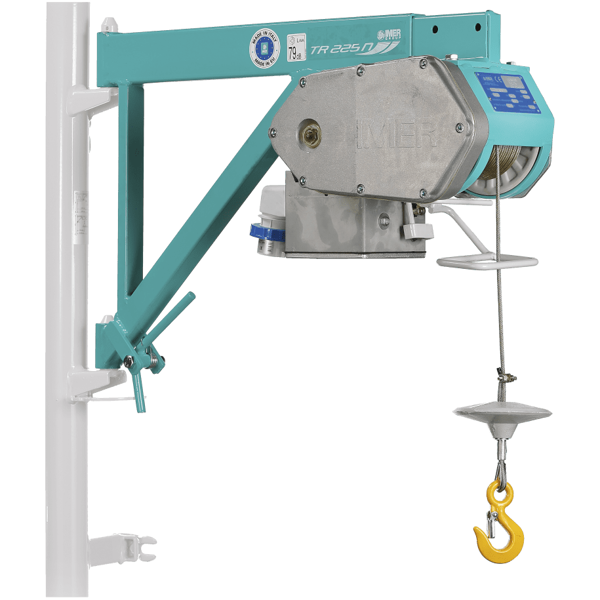

IMER TR 225 with extendable bracket

IMER Scaffold Hoists are the perfect, 200kg 30m high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.

Unique Feature: Telescopic Frame | 720mm extends to 1120mm

Maximum Lifting Capacity | 200kg

Max Working Height | 30m

Rope Length | 31m

Motor | 110v

TR 225 N Standard equipment

• Work positioning lever
• IP67 plug
• Trolley available for use with a gantry
• Upper limit safety device
• Self-braking motor
• Bracket can be extended up to 1120mm

This pivoting 200kg electric hoist with a lifting height of 30m and is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely. It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift and a lower limit lever and switch that stops the hoist from winding back up the wrong way. It also has a Thermal Cut-out to protect the motor from power surges. The hook has a spring loaded safety catch to keep the load carrier within the hook.

This machines comes complete with the detachable TR225N pendant and also the 1.8 metre pole that attaches itself to the scaffolding.

Several accessories are also available to use with the TR225N to enable the lifting of various materials.

• 90 litre (200kg) Bucket
• Liftable Wheel Barrow
• Brick basket

See our accessory page for more options.

Distance from mounting to Lifting point 720mm but extends to 1120mm and still lift 200kg.

More Info on the hoist:

Data Sheet
