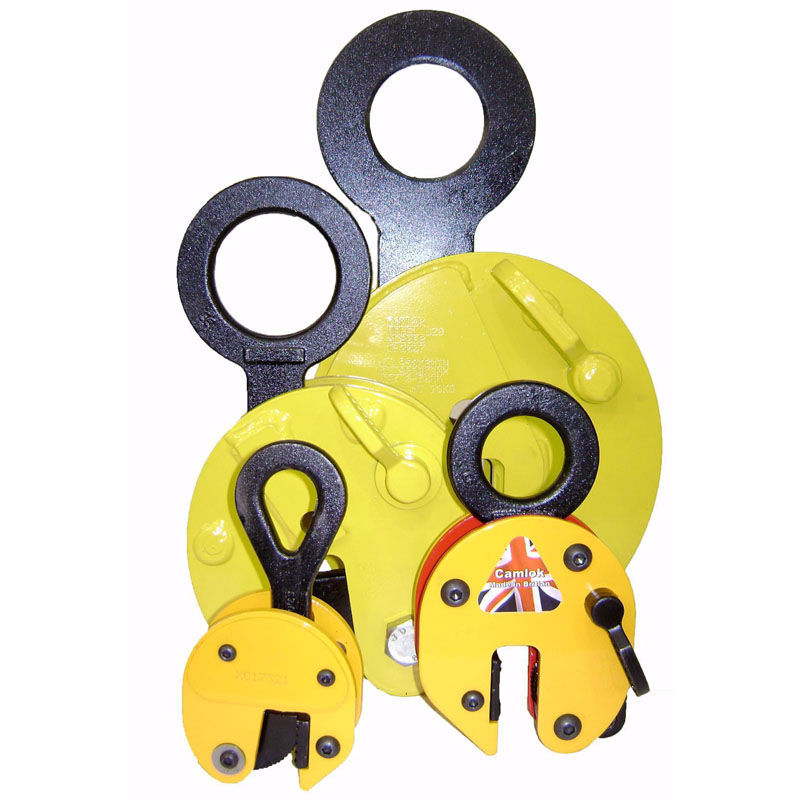

Camlok 92 Series Vertical Plate Clamps W/ Hook Ring

Standard plate clamps with safety lock

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180 degrees. They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long plate.

Function

The jaw is opened and closed with the locking lever, except for the 92-500 which uses a positive spring-loaded cam. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.

Notes:

The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300. Units are supplied as standard with a hook ring for link fitting and chains please contact SGS.

Prices stated are per clamp.

Downloads:

Data Sheet
