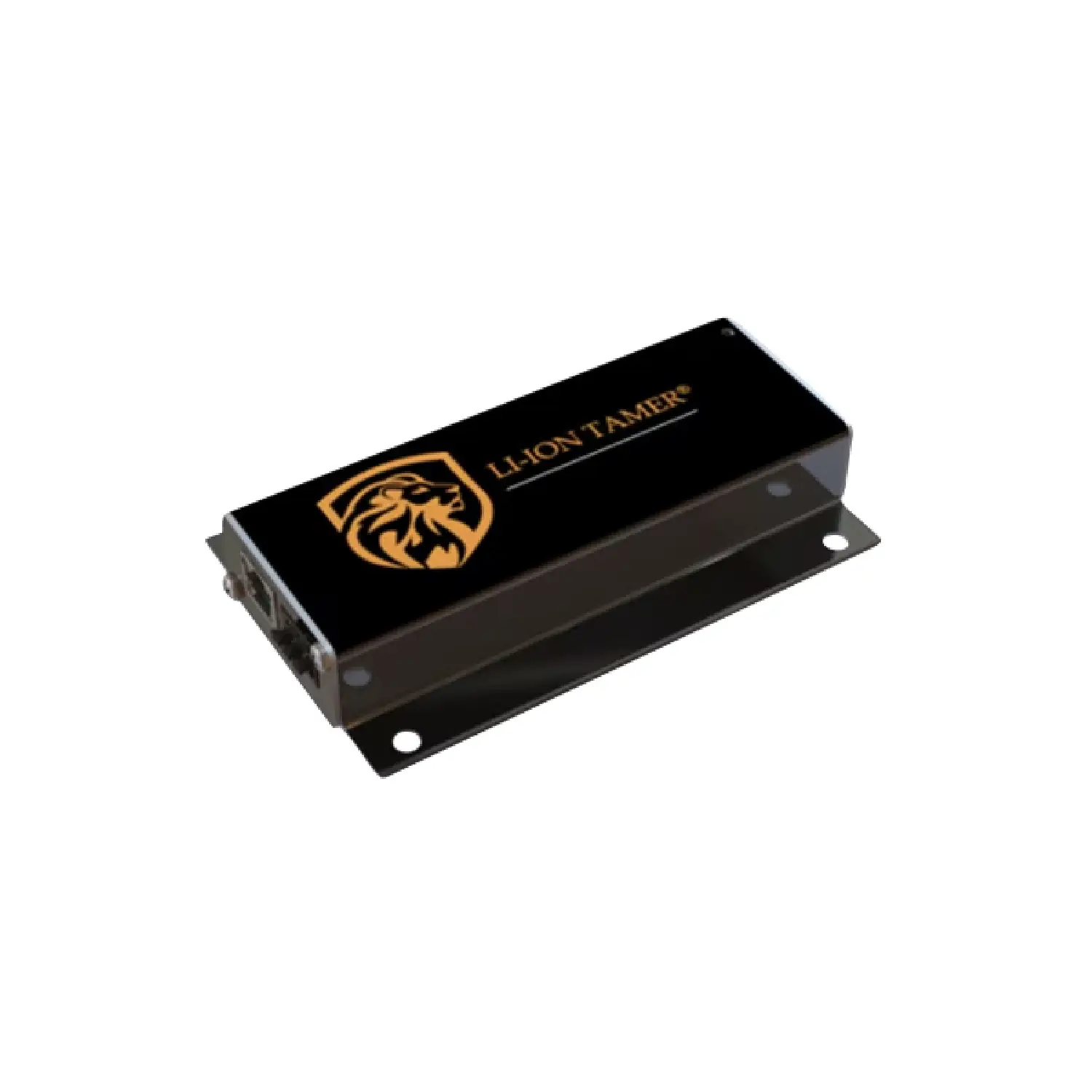

Honeywell Li-ion Tamer LT-ACC-HUB-PWR-HON Gen 3 Direct Power Hub

The Honeywell Li-ion Tamer LT-ACC-HUB-PWR-HON is a direct-powered communications hub designed for use within Li-ion Tamer Gen 3 lithium-ion battery off-gas detection systems. It provides the starting point for the sensor daisy chain, distributing power and enabling CANbus communications between connected Li-ion Tamer sensors and the wider monitoring system.

Each hub can support up to 12 Li-ion Tamer Gen 3 Monitoring and Reference Sensors, allowing sensors to be distributed throughout a lithium-ion battery installation to provide comprehensive early warning coverage.

The LT-ACC-HUB-PWR-HON is powered directly from a 12 VDC supply via its terminal block. This makes it particularly suitable for smaller systems, as the hub can use the same 12 VDC power supply as the Li-ion Tamer Gen 3 Controller. For larger or differently configured installations, multiple hubs can be incorporated into the system to accommodate the required number and distribution of sensors.

Connected sensors are arranged in a daisy-chain configuration from the hub, simplifying system wiring while providing both power distribution and CANbus communications. The hub then connects into the Li-ion Tamer network, allowing sensor information to be communicated to the Gen 3 Controller for central monitoring and processing.

Key Features

• Direct-powered hub for Honeywell Li-ion Tamer Gen 3 systems

• Provides the starting point for the sensor daisy chain

• Supports up to 12 sensors per hub

• Compatible with Li-ion Tamer Gen 3 Monitoring and Reference Sensors

• Provides sensor power distribution and CANbus communications

• 12 VDC direct power input via terminal block

• Can be powered from the same 12 VDC supply as the Gen 3 Controller

• Maximum power consumption of 6 W when fully populated

• Operating temperature range of -10°C to +50°C

• Operating humidity range of 10–90% RH, non-condensing

• Net material weight of approximately 200 g

• Supplied with a terminator

• Compatible with the LT-ACC-HUB-MKT DIN-Rail Mount Kit

• Suitable for scalable lithium-ion battery monitoring installations

Applications

The LT-ACC-HUB-PWR-HON is designed for use within Honeywell Li-ion Tamer Gen 3 systems protecting lithium-ion battery installations such as battery energy storage systems (BESS), data centres, battery rooms, manufacturing facilities, warehouses and other critical infrastructure.

Its ability to support up to 12 sensors from a single hub provides a convenient method of distributing Li-ion Tamer sensors throughout the protected area while maintaining power and communications back to the central monitoring system.
