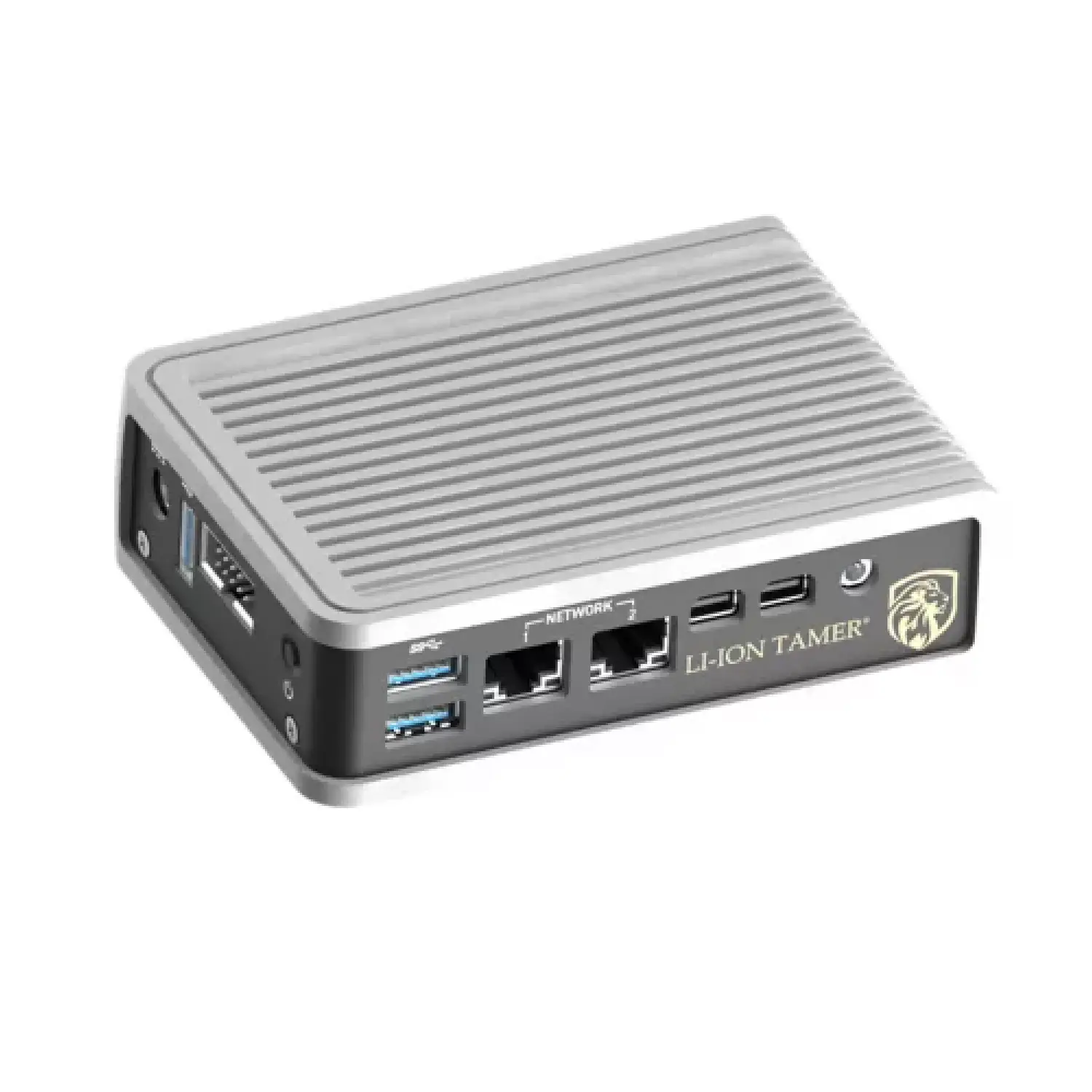

Honeywell Li-ion Tamer LT-CTR-SML Gen 3 Controller

The Honeywell Li-ion Tamer LT-CTR-SML is the central controller for the Li-ion Tamer Gen 3 lithium-ion battery off-gas detection system. Designed as an industrial Linux-based computer, it aggregates and processes information received from the system's monitoring and reference sensors, providing centralised monitoring of lithium-ion battery installations.

The controller continuously processes sensor status information to determine when a potential lithium-ion battery cell venting event has occurred. By working with Li-ion Tamer Gen 3 sensors positioned throughout the battery installation, the system can provide early warning of conditions associated with battery failure before they potentially progress to thermal runaway.

In addition to processing off-gas detection signals, the LT-CTR-SML receives temperature and humidity measurements from connected sensors and monitors the system for fault conditions. A detailed history of time-stamped sensor data is also recorded, providing useful information for system analysis and post-event diagnosis.

Each LT-CTR-SML can support up to 100 sensors, making it suitable for a wide range of lithium-ion battery installations. Honeywell recommends a maximum of 10 hubs per controller.

For integration with external monitoring and control systems, the controller provides Modbus TCP/IP communication over Ethernet. An optional Ethernet relay module can also be connected to provide configurable dry-contact relay outputs, allowing Li-ion Tamer status information to be integrated with building management systems (BMS), battery management systems and other site safety or control equipment.

Key Features

• Central controller for the Li-ion Tamer Gen 3 system

• Aggregates and processes signals from monitoring and reference sensors

• Supports up to 100 sensors per controller

• Recommended maximum of 10 hubs per controller

• Processes sensor information to identify lithium-ion battery cell venting events

• Receives temperature and humidity measurements from individual sensors

• Monitors and communicates system fault conditions

• Records detailed time-stamped sensor data for post-event diagnosis

• Modbus TCP/IP communication via Ethernet

• Two Ethernet network connections for internal system and external communications

• Compatible with optional relay modules for configurable dry-contact outputs

• 12 VDC power input

• Maximum controller power consumption of 36 W

• Compact industrial design measuring 115 x 82 x 34 mm

• Suitable for scalable Li-ion Tamer Gen 3 installations

System Integration

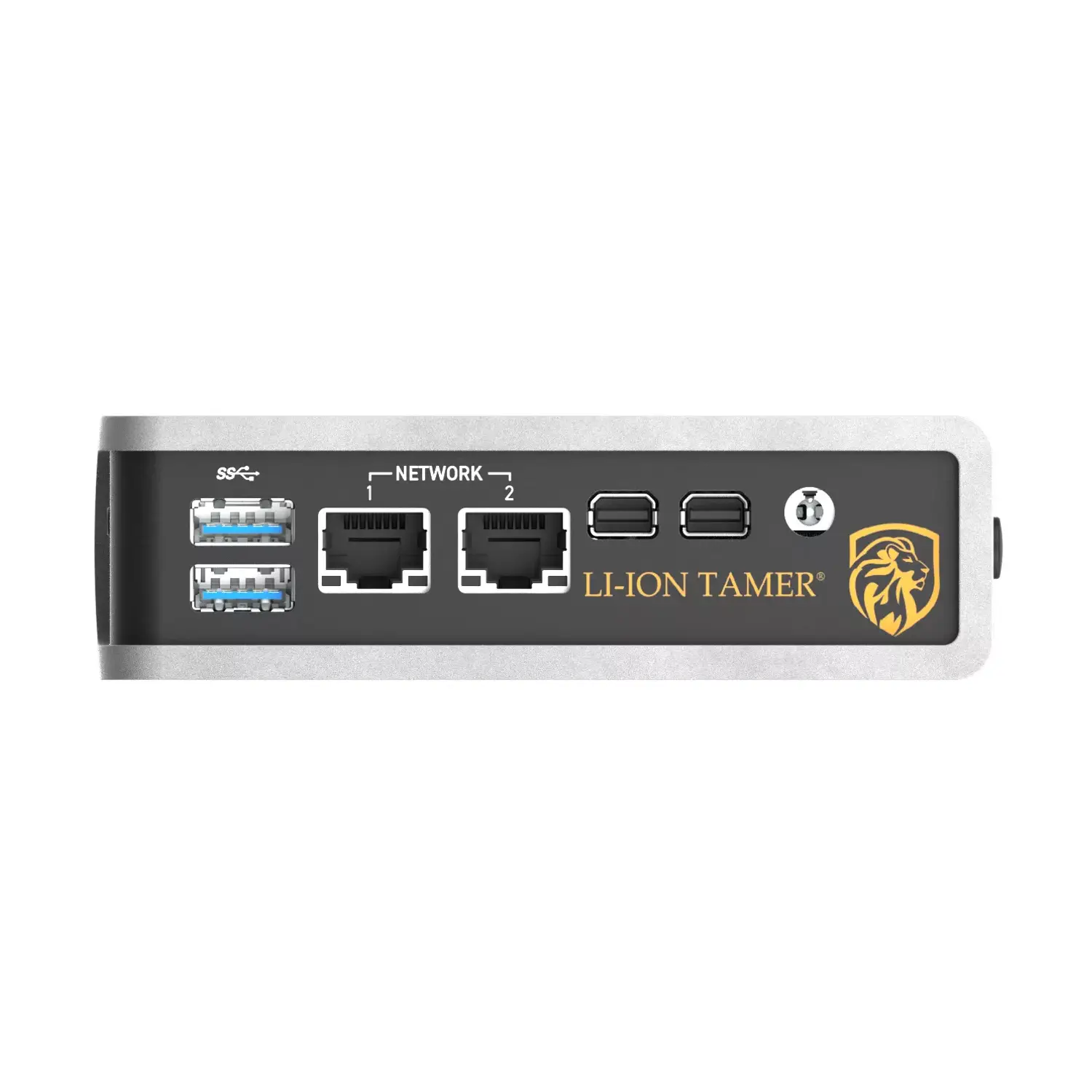

The LT-CTR-SML features two Ethernet network connections. Network 1 is used for the internal Li-ion Tamer detection network, connecting the controller with system hubs, Ethernet switches and optional relay modules. Network 2 provides external Modbus TCP/IP communication and can be configured with a static IP address for integration with customer systems.

Applications

The LT-CTR-SML is designed for use as part of a complete Li-ion Tamer Gen 3 installation protecting lithium-ion battery applications such as battery energy storage systems (BESS), data centres, battery rooms, industrial facilities, manufacturing sites and other critical infrastructure.

Its scalable architecture allows a single controller to manage installations containing up to 100 Li-ion Tamer sensors, while larger installations can utilise additional controllers as required.
