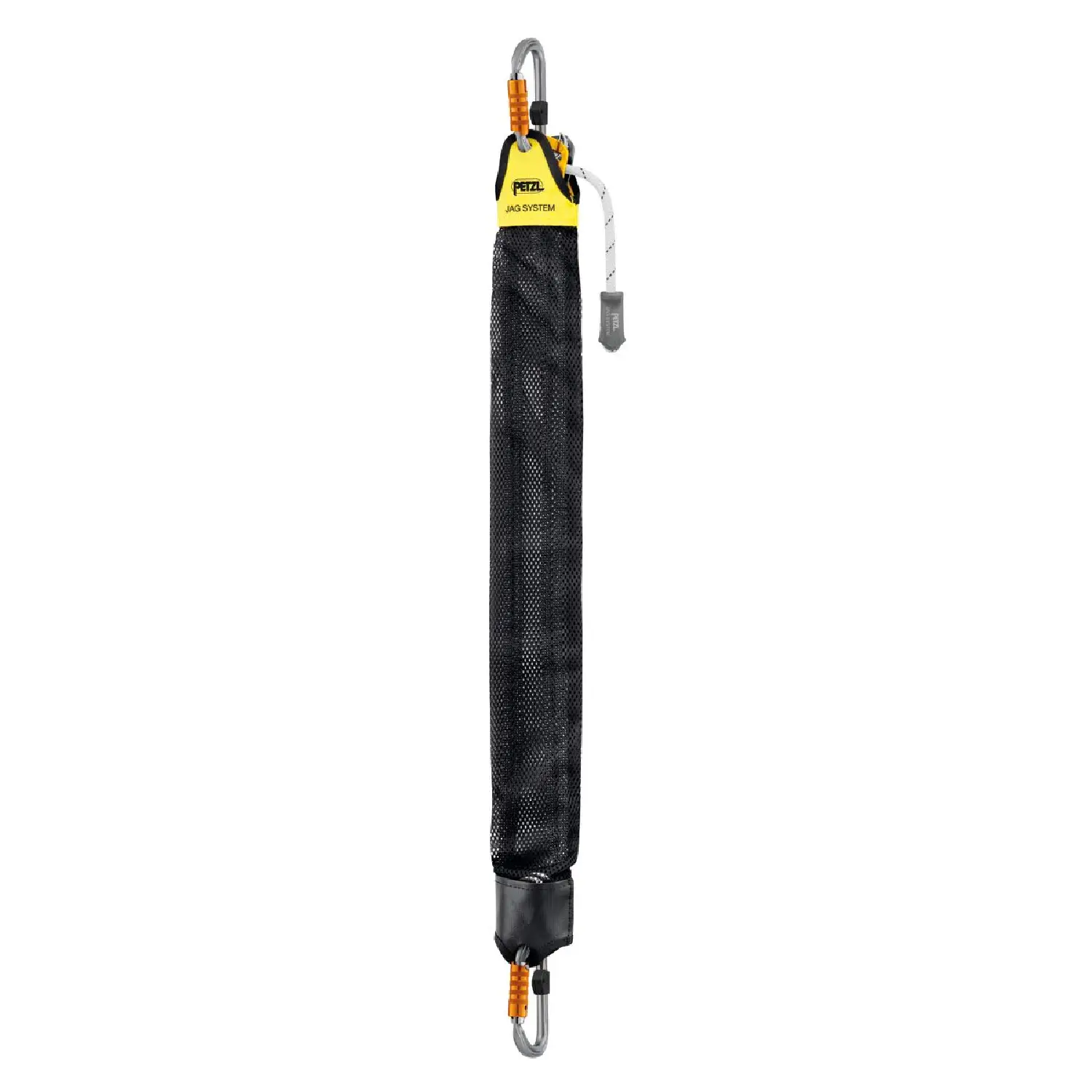

Haul kit

The JAG SYSTEM haul kit is designed for pickoffs, creating releasable anchors, and tensioning systems. With a 4:1 mechanical advantage and high-efficiency sealed ball bearing pulleys, it delivers smooth and effective hauling. Its compact, ready-to-use design makes deployment quick and simple, even when the distance to the anchor is very short. Available in 1 m, 2 m, and 5 m lengths.

Features

• Versatile:
  • Suitable for pickoffs, creating releasable anchors, tensioning systems, and more
  • Can be combined with an I'D descender to create a reversible rescue kit for victim pickoff and evacuation
• High hauling efficiency:
  • 4:1 mechanical advantage reduces user effort by a factor of four
  • Excellent efficiency thanks to sheaves mounted on sealed ball bearings

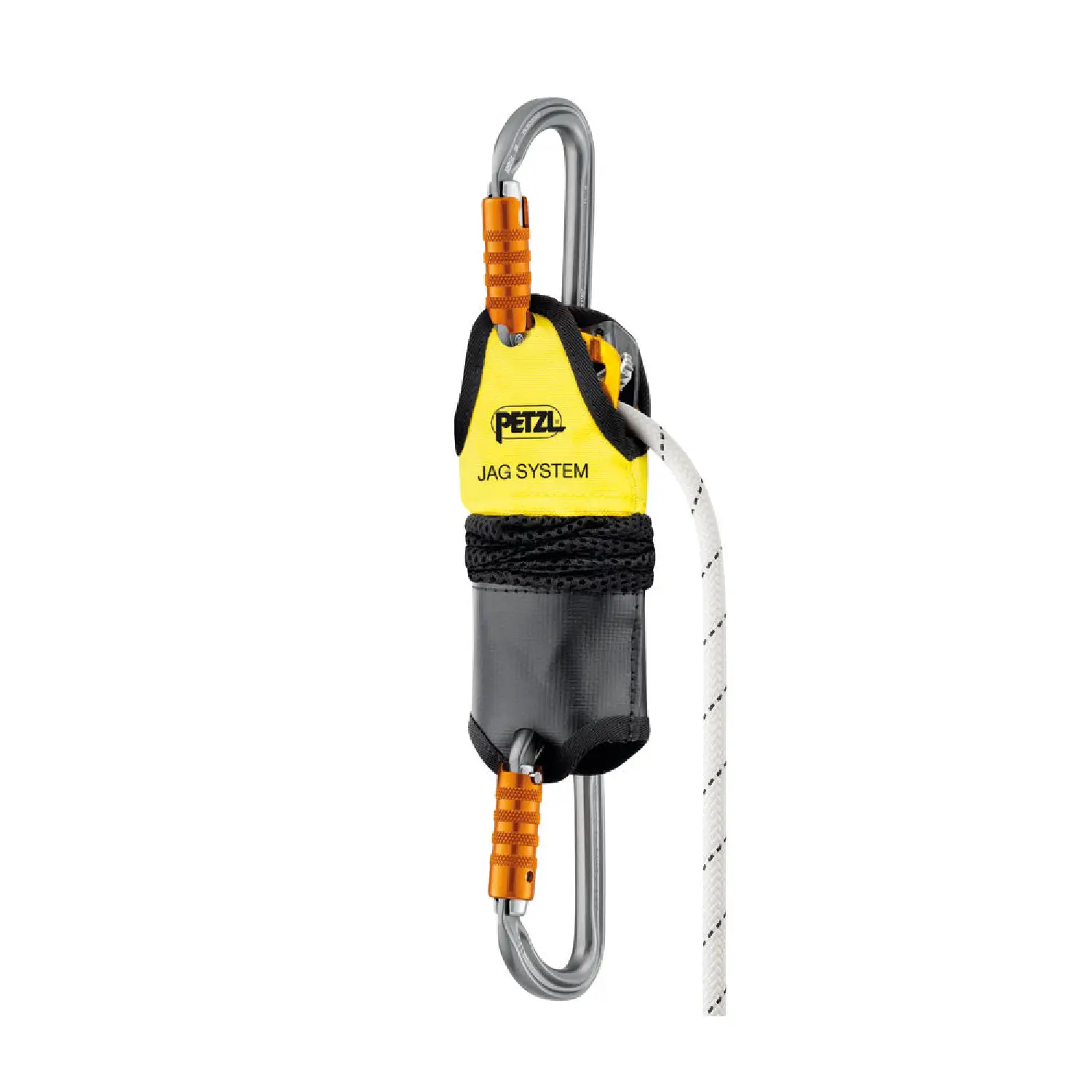

  • Compact collapsed size allows deployment even when the anchor is very close
  • Lightweight 8 mm rope provides a secure grip and efficient operation
• Quick and easy deployment:
  • Flexible protective cover keeps the system ready for use while preventing tangles
  • Yellow haul end allows instant identification

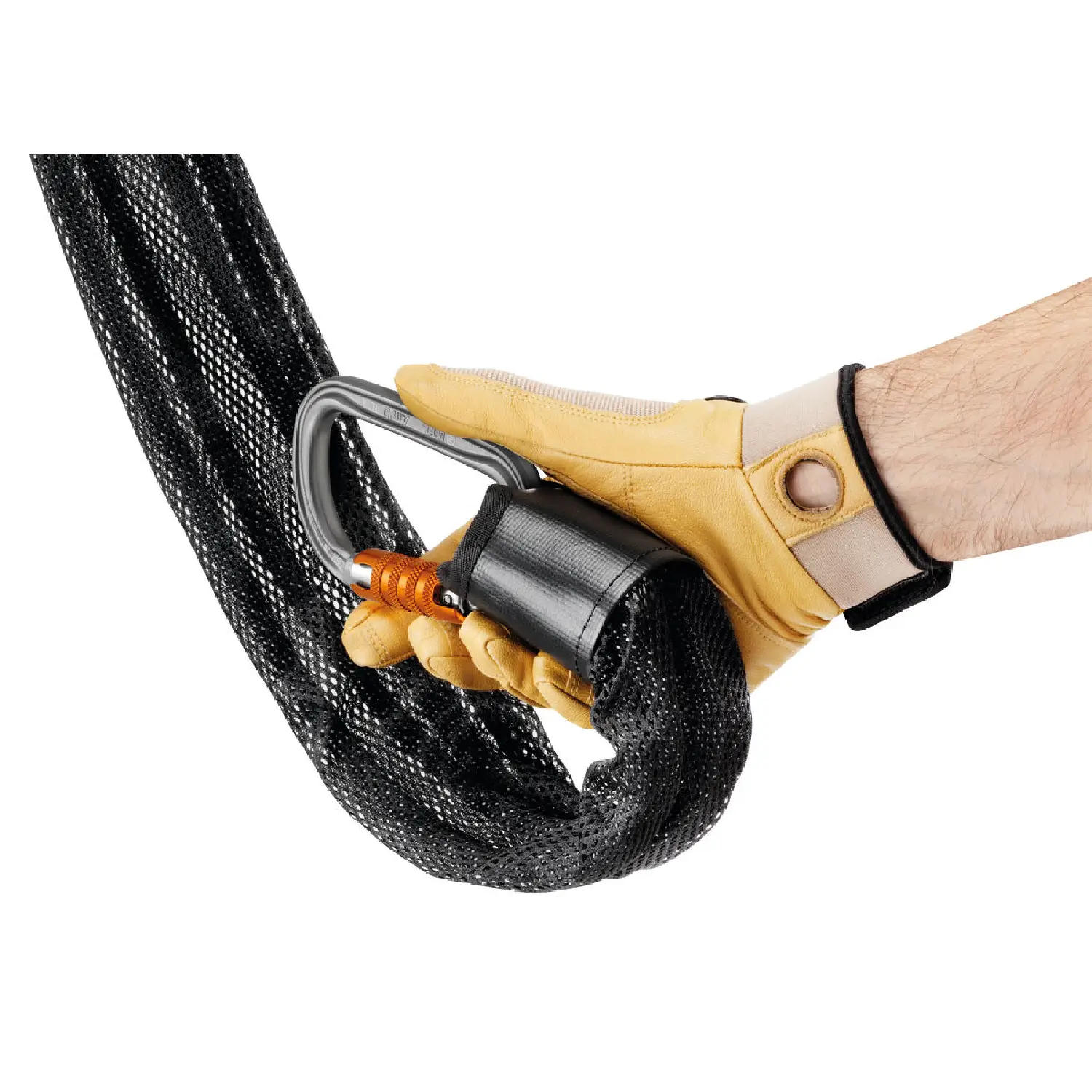

  • Protective cover ends hold connectors in position for easier clipping
• Supplied with two Am'D TRIACT-LOCK auto-locking carabiners
• Available in three deployed lengths: 1 m, 2 m, and 5 m
• JAG and JAG TRAXION pulleys are also available separately for building longer haul systems, such as confined space descent and ascent systems

Specifications

Material(s)

Aluminum, nylon, polyurethane

Rope diameter

8 mm

Certification(s)

CE EN 358, EAC, NFPA 2500 Technical Use

Sheave type

Sealed ball bearings

Working load

6 kN

Breaking strength

16 kN

Efficiency

91%
