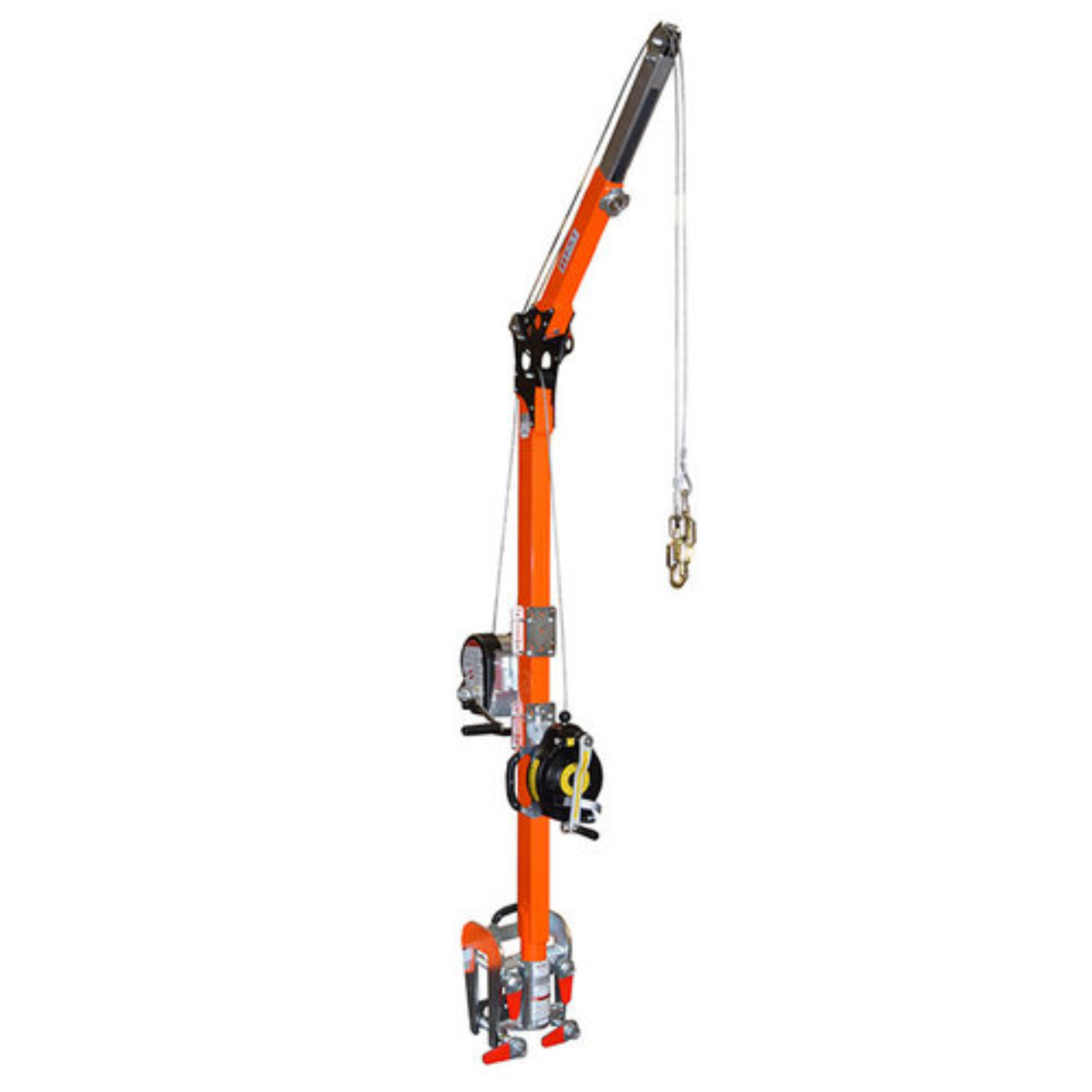

Abtech 30166KIT - 7” Barrel Mount Kit

The 7" barrel mount kit from abtech is designed for mounting onto shoring and trench boxes. Equipped with a range of tools and brackets to form the complete davit system this system conforms to EN795 Class B, EN360 & EN1496

• 7" Barrel Mount Base 30036

• Upper (30105) Davit Arm & Lower (30109) Davit Arm - Large size arm and mast for use with the adjustable barrel mount. Brackets included to attach both fall arrest winch and man riding winch to the arm.

• AB15RT 15m Fall Arrest Winch - The fall arrest winch features an integral winch mechanism, allowing a top end user to raise or lower the user to a safe area in the case of a fall. Used with 5mm Galvanised Steel Cable.

• 30m Man Riding Winch - The Abtech man riding winch features a capacity of 140kg as a single reeved system or 240kg as a double reeved system, a mechanical advantage of 11:1 and includes a brake wear indicator, folding crank handle, secondary brake and high impact resistant plastic cover.

• en 795 CLASS B, EN360, EN1496
